Panasonic SC-HTB15 Owner's Manual

6
VQT3Q59

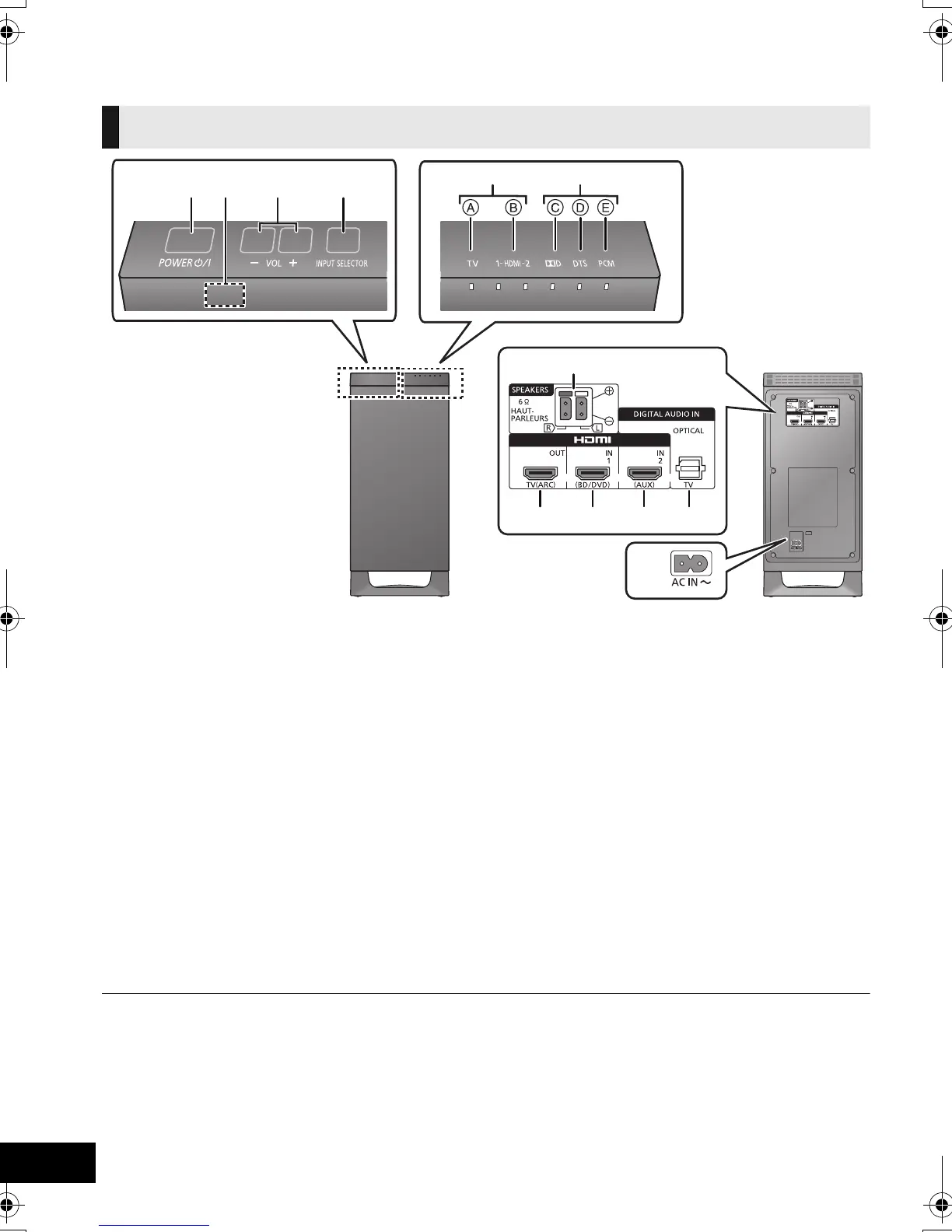

Control reference guide
1 Standby/on switch (POWER Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Remote control signal sensor (> 9)
3 Adjust the volume of the speakers
4 Select the input source
TV # HDMI 1 # HDMI 2
^----------------------------------}
5 Input selector indicators
§
A TV indicator
Lights green when the TV is the audio
source
B HDMI IN 1, HDMI IN 2 indicator
When the device connected to the HDMI IN
1 terminal or the HDMI IN 2 terminal is the
audio source (B lights in amber)
6 Audio format indicators
§
C Dolby Digital indicator
Lights when Dolby Digital is the current
audio format
D DTS indicator
Lights when DTS is the current audio
format
E PCM indicator
Lights when PCM (2ch, Multi-channel) is
the current audio format
7 Speaker terminals (> 21)
8 HDMI OUT terminal (ARC compatible) (> 18)
9 HDMI IN 1 terminal (> 20)
10 HDMI IN 2 terminal (> 20)
11 OPTICAL DIGITAL AUDIO IN terminal (> 19)
12 AC IN terminal (> 21)
§The indicators will also blink in various conditions (> 27)
Active subwoofer
314
56
2
7
8 9 10 11
12
Active subwoofer
(front)
Active subwoofer
(rear)
SC-HTB15PP_VQT3Q59_eng.book Page 6 Wednesday, June 8, 2011 3:33 PM

Panasonic SC-HTB15 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Tweeter diameter	25 mm
Soundbar speaker RMS power	120 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wired
Receiver included	No
Product color	Black
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	800 x 58 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	2
HDMI ports quantity	3
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1360 g
Subwoofer weight	5600 g
