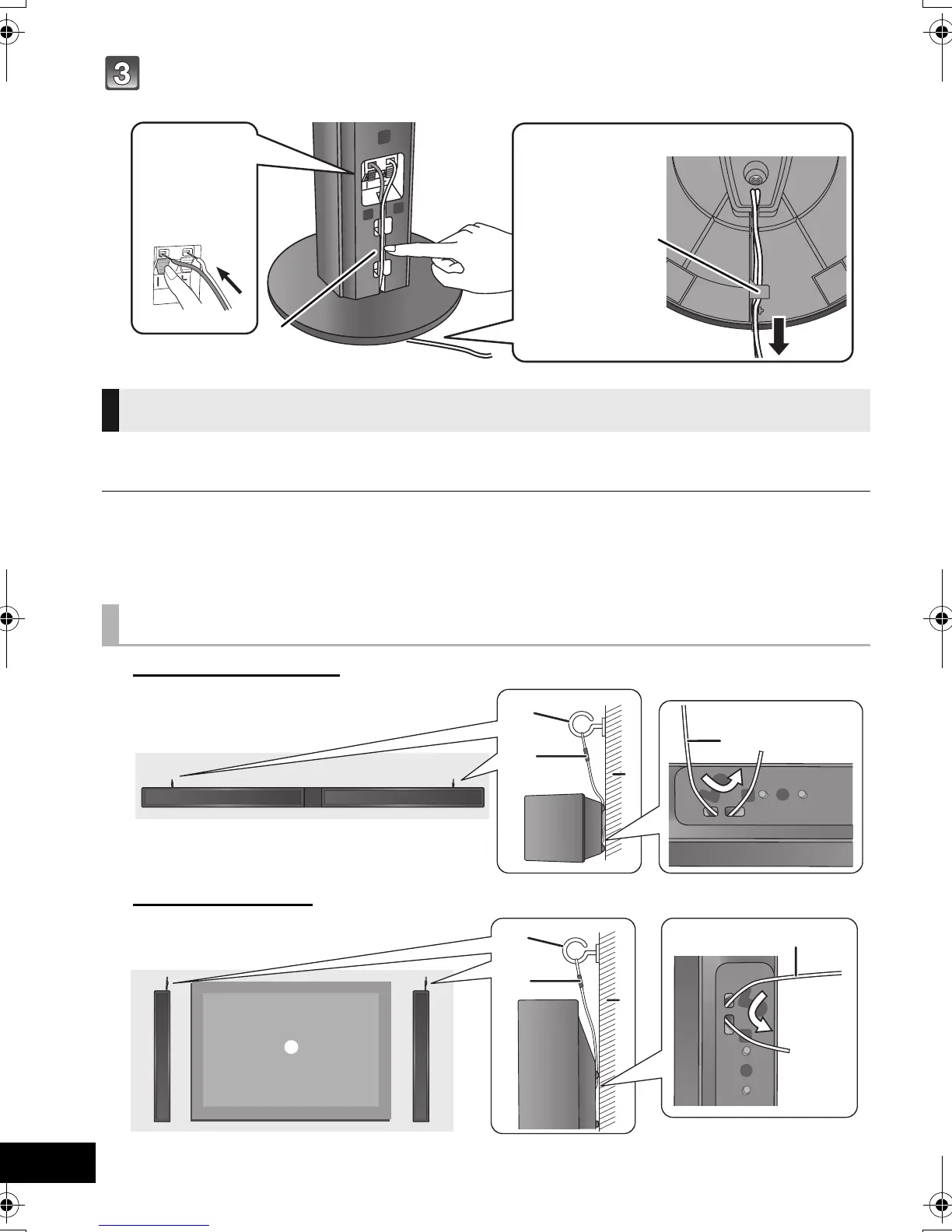

Connect the speaker cables.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
To prevent the speakers from falling, it is recommended to attach the speakers to
the wall or table with a fall prevention cord (hereafter “cord”).
≥ Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that
may not have strong enough support. Improper attachment may result in damage to the wall or speakers.
≥ Use a cord of less than ‰2.0 mm (
5
/64q), which is capable of supporting over 10 kg (22.05 lbs).
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Make sure that the slack of the cord is minimal.
Speaker fall prevention measures
When placing the speakers on a wall
Horizontal placement
Vertical placement
A Cord (not supplied)
B Screw eye (not supplied)
C Wall
D TV
Insert the
wire fully.
r: White
s: Blue line
Press into the groove.
Push
Back of the base
Pull the cable
straight along
the line and
slide into the
groove.
≥ Be sure to place
the cable under
the projecting
part.
