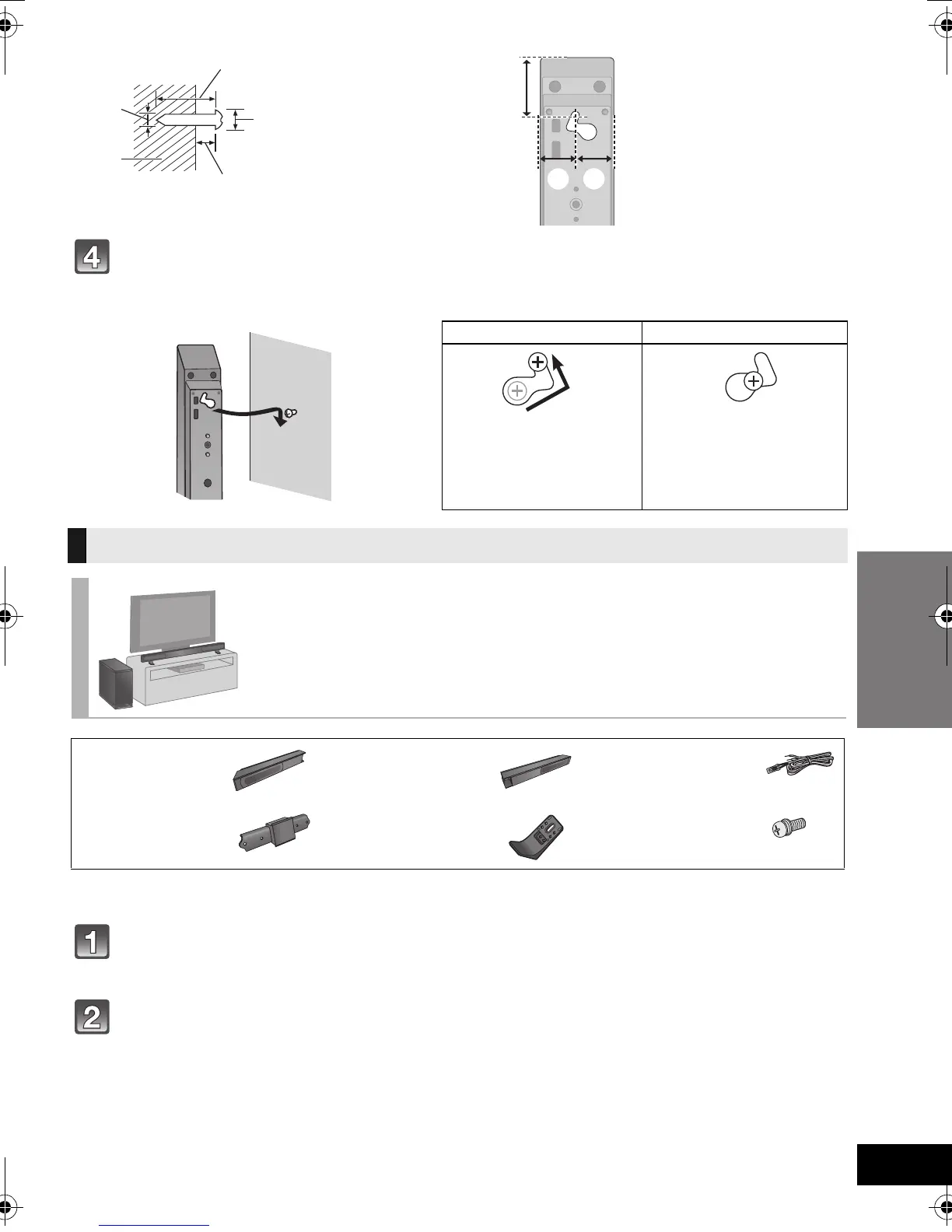

Getting started
13
VQT4D53
Fit the speaker(s) securely onto the screw(s) with the hole(s).
Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect with
the speaker cable with a white connector on the observers’ left.
For a safety measure to prevent the speakers from falling, refer to page 16.
To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 to 3 of “Place the speakers
horizontally” (> 10).
Attach the stands.
Keep the screws out of reach of children to prevent swallowing.
(Continued on the next page)
A At least 30 mm (1
3
/16q)
B 4.0 mm (
5
/32q)
C 7.0 mm to 9.4 mm
(
9
/32q to
3
/8q)
D Wall or pillar
E 5.5 mm to 6.5 mm
(
7
/32q to
1
/4q)
F 46.5 mm (1
53
/64q)
G 24.5 mm (
31
/32q)
DO DO NOT
Move the speaker so
that the screw is in
this position.
In this position, the
speaker will likely fall if
moved to the left or
right.
When placing the speakers on a table
Place the speakers using the
stands
1 Speaker (L) 1 Speaker (R) 2 Speaker cables
(L): WHITE
(R): RED
1 Speaker joint 2 Stands 6 Screws
SC-HTB20P_VQT4D53_eng.book 13 ージ 2012年1月16日 月曜日 午後8時3分
