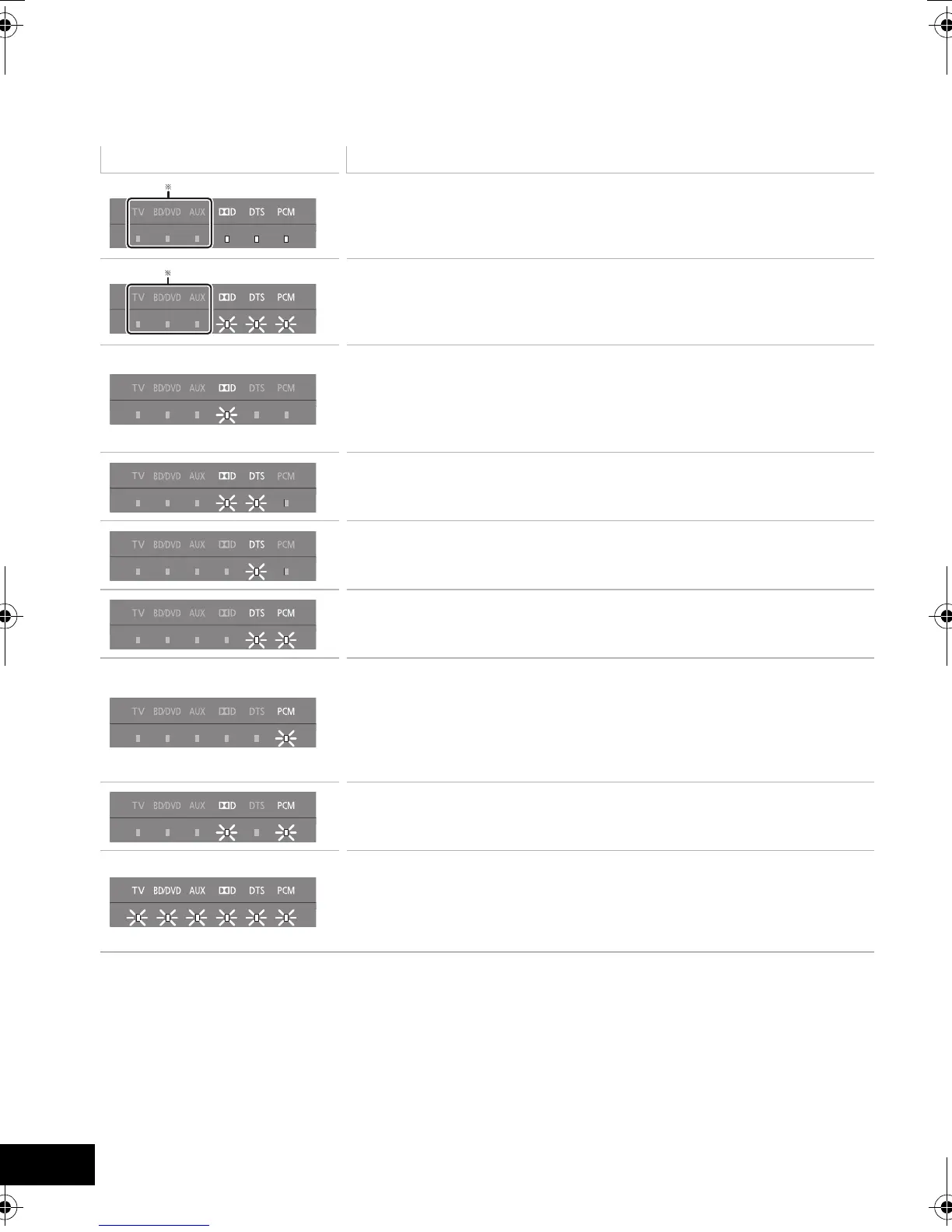

Indicator illumination
The indicators display the condition of this system by flashing. The indicator patterns illustrated below are
displayed during normal operational conditions. They do not refer to the indications of a problem. Refer to
“Troubleshooting” (> 26) if the indicators do not light as illustrated below.
§The selected source indicator will also light.
Indicator Description
The indicators blink from left to right (i) or from right to left (s).
≥ When the speaker volume, the subwoofer level, or dialog effect level is
adjusted (> 21, 22)
The indicators blink simultaneously.
≥ When “MUTE” is on (> 21)
The indicator blinks for 10 sec.
≥ When the audio output mode is Multi-channel mode (> 23)
≥ When 3D surround effect and clear-mode dialog effect are on (> 25)
≥ When the dual audio setting is Main (> 25)
≥ When the auto gain control is on (> 25)
≥ When the subwoofer level or the dialog effect level is 1 (> 21, 22)
The indicator blinks for 10 sec.
≥ When the audio output mode is Auto mode (> 23)
≥ When the subwoofer level or the dialog effect level is 2 (> 21, 22)
The indicator blinks for 10 sec.
≥ When the audio output mode is Auto mode (> 23)
The indicator blinks for 10 sec.
≥ When the subwoofer level or the dialog effect level is 3 (> 21, 22)
The indicator blinks for 10 sec.
≥
When the audio output mode is 2ch mode (> 23)
≥ When 3D surround effect and clear-mode dialog effect are off (> 25)
≥ When the dual audio setting is Secondary (SAP: Secondary Audio Program)
(> 25)
≥ When the auto gain control is off (> 25)
≥ When the subwoofer level or the dialog effect level is 4 (> 21, 22)
The indicators blink for 10 sec.
≥ When the dual audio setting is Main and Secondary (> 25)
The indicators blink for 10 sec.
≥ When the remote control code is changed (> 25)
The indicators blink once.
≥ When changing the setting (“To reduce the clear-mode dialog effect”, “To turn
off VIERA Link “HDAVI Control”” and “To turn off the volume limitation”) (> 26)
SC-HTB20P~Body_mst.fm 28 ページ ２０１２年１月１６日 月曜日 午後８時２２分

Panasonic SC-HTB20 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	130 W
Total Harmonic Distortion (THD)	10 %
Receiver included	No
Product color	Black
Recommended usage	Home theatre
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	755 x 58.5 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	1
Connectivity technology	Wired
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1300 g
Subwoofer weight	5500 g
