6
VQT4D53

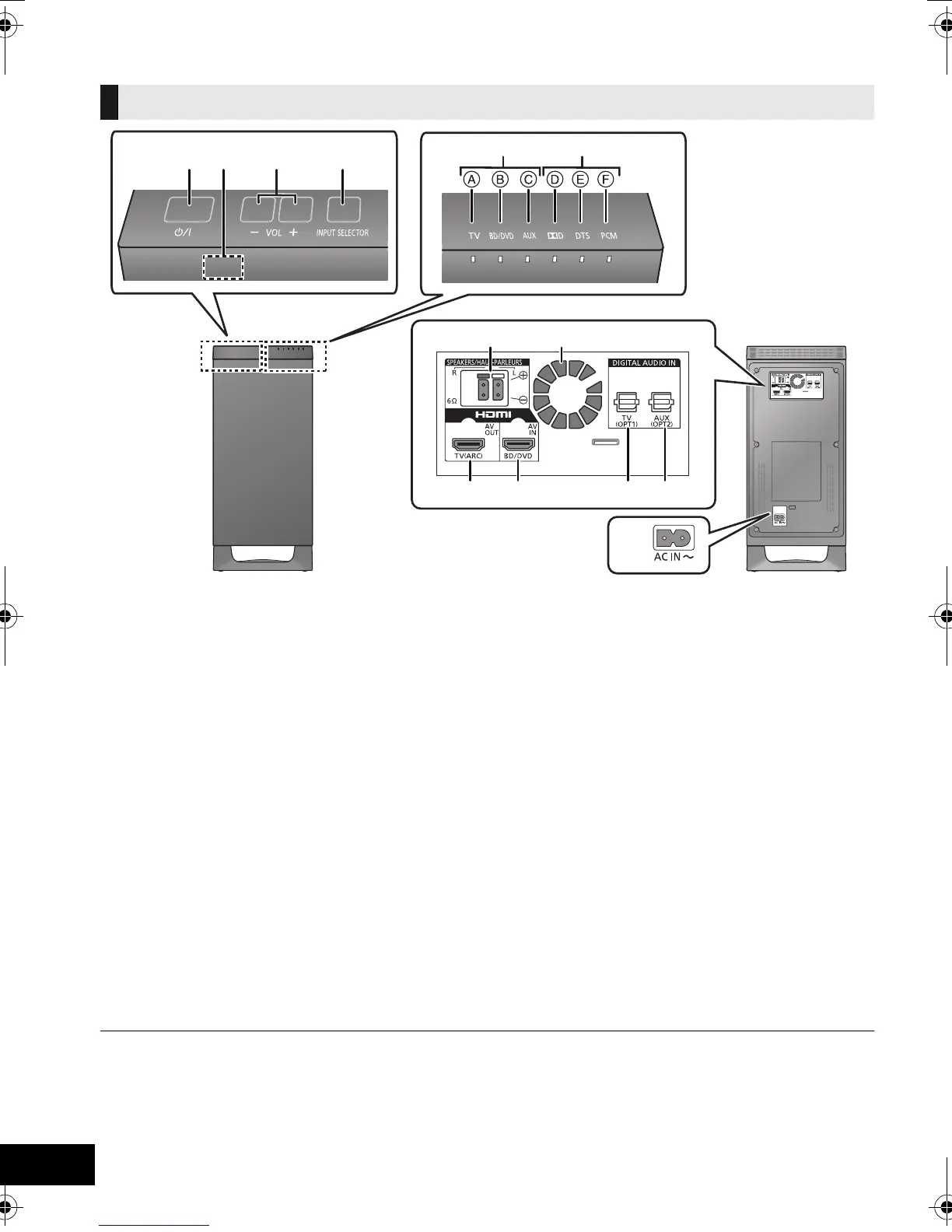

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Remote control signal sensor (> 9)
3 Adjust the volume of the speakers
4 Select the input source
TV # BD/DVD # AUX
^----------------------------}
5 Input selector indicators
§
A TV indicator
Lights green when the TV is the audio
source
B BD/DVD indicator
Lights amber when the device connected to
the BD/DVD terminal is the audio source
C AUX indicator
Lights amber when the device connected to
the AUX terminal is the audio source
6 Audio format indicators
§
D Dolby Digital indicator
Lights when Dolby Digital is the current
audio format
E DTS indicator
Lights when DTS is the current audio
format
F PCM indicator
Lights when PCM (2ch, Multi-channel) is
the current audio format
7 Speaker terminals (> 20)
8 Cooling fan
9 HDMI OUT terminal (ARC compatible) (
>
18, 19)
10 HDMI IN terminal (BD/DVD) (> 19)
11 OPTICAL DIGITAL AUDIO IN terminal (TV)
(> 19)
12 OPTICAL DIGITAL AUDIO IN terminal (AUX)
(> 19)
13 AC IN terminal (> 20)
§The indicators will also blink in various conditions (> 28)
Active subwoofer
314
56
2
7 8
9 10 11 12
13
Active subwoofer
(front)
Active subwoofer
(rear)
