10.3.1. Front Cabinet Unit

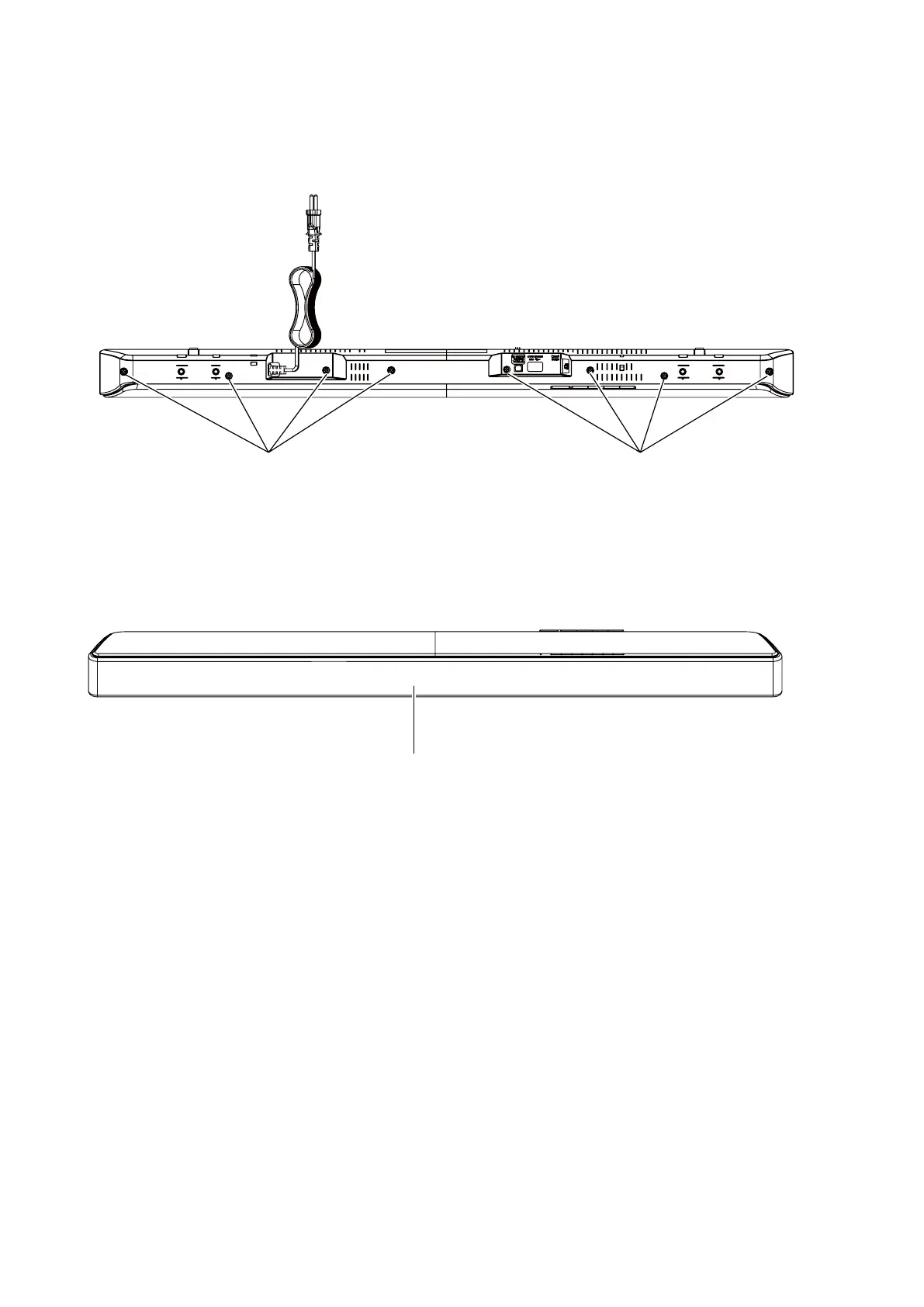

1. Remove 8 Black Screws (A).
2. Lift up Main Unit.
3. Pull the Front Cabinet Unit in the direction of your side.
Front Cabinet Unit
10.3. Disassembly Procedure of Main Unit (SU-HTB488/494/498)
Black Screw (A) Black Screw (A)
