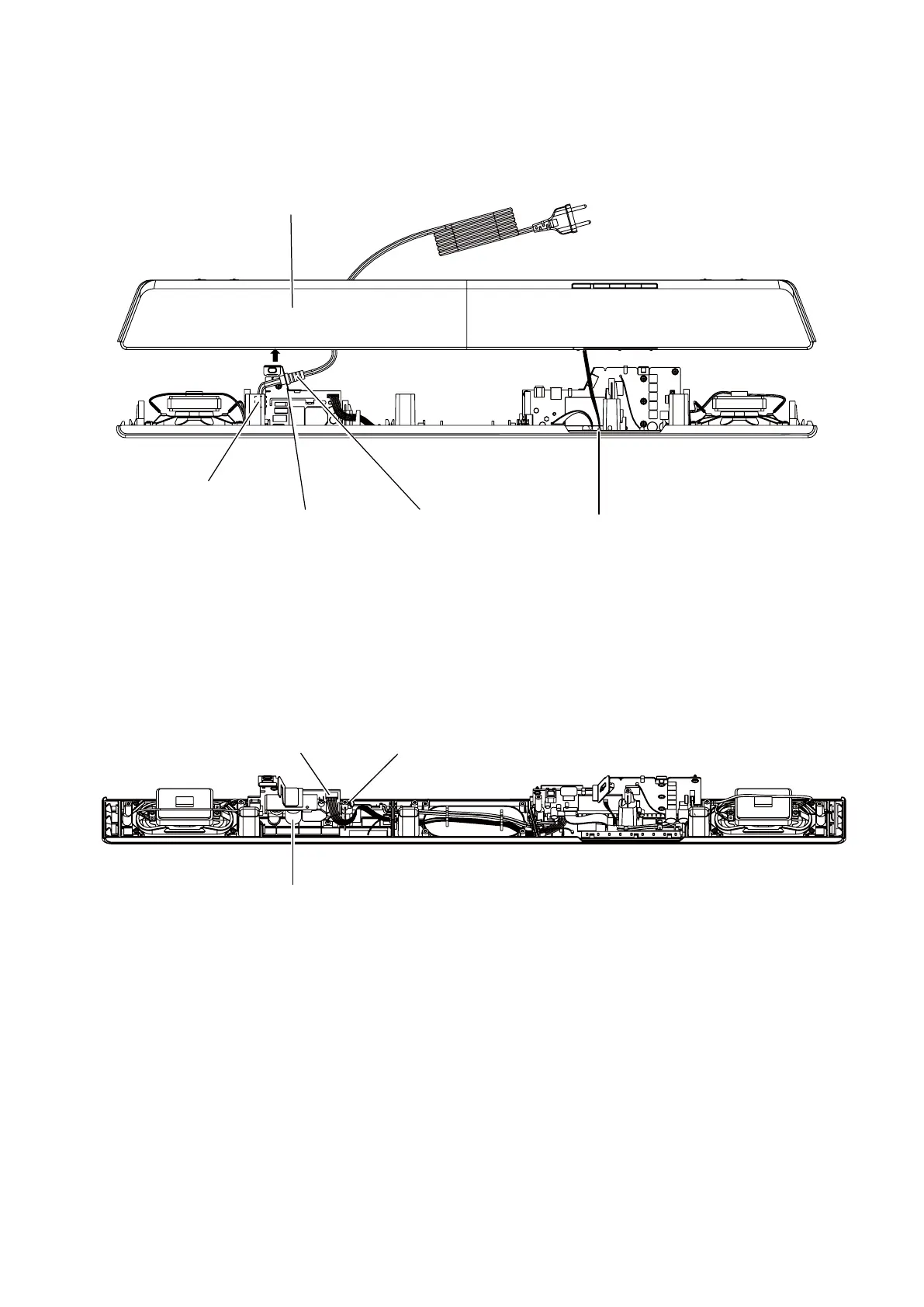

AC Cord
10.3.2. AC Cord
1. Disconnect connector (A),(B).
2. Pull up the AC Cord from the AC Cord Bracket in the direction of arrow.
3. Pull the AC Cord out from the rear side of the Back Cabinet Unit.
Connector(B)
AC Cord Bracket
10.3.3. Power P.C.B.
1. Remove 1 Black Screw (B).
2. Disconnect connector (A).
3. Remove the Power P.C.B..
Black Screw (B )
Power P.C.B.
Connector(A)
Back Cabinet Unit
Connector(A)
