31

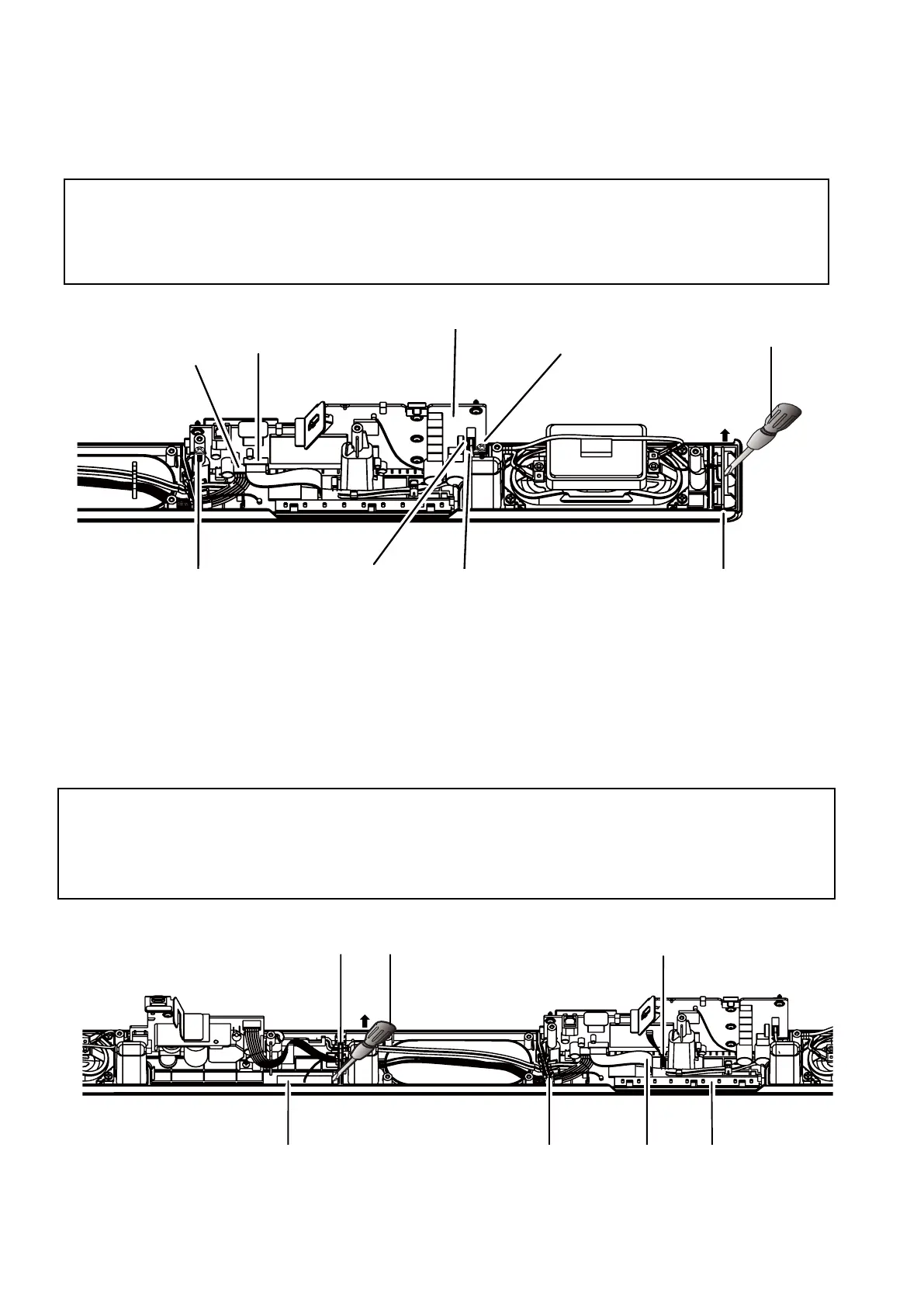

10.3.4. Main P.C.B. Unit (Main P.C.B.+ Wireless Antenna P.C.B.)
1. Remove 2 Black Screws (C).
2. Disconnect FFC cable.
3. Disconnect connector (A),(B),(C).
4. Remove the Main P.C.B..
5. Pull out the Wireless Antenna P.C.B. by thin screw driver in the direction of arrow.
Main P.C.B.
Connector (A)
Connector (B)
Connector (C)
FFC
10.3.5. LED P.C.B. Unit ( LED P.C.B.+ Bluetooth Antenna P.C.B.)
1. Disconnect FFC cable.
2. Disconnect connector (A).
3. Open two Wire Holders.
4. Remove the LED P.C.B..
5. Pull out the Bluetooth Antenna P.C.B. by a thin screw driver in the direction of arrow.
LED P.C.B.
Connector (A)
FFC
Black Screw (C )
Black Screw (C )
Thin screw driver
Wireless Antenna P.C.B.
Caution:
Before the installment completely wipe off the double sticky tape left on the front cabinet unit, otherwise the Antenna
sensitivity will be effected.Moreover when installing press the Wireless Antenna P.C.B. tightly onto the front cabinet
unit.
Thin screw driver
Bluetooth
Antenna P.C.B
Wire Holder
Caution:
Before the installment completely wipe off the double sticky tape left on the front cabinet unit, otherwise the Antenna
sensitivity will be effected.Moreover when installing press the Bluetooth Antenna P.C.B. tightly onto the front cabinet
unit.
Wire Holder
