32

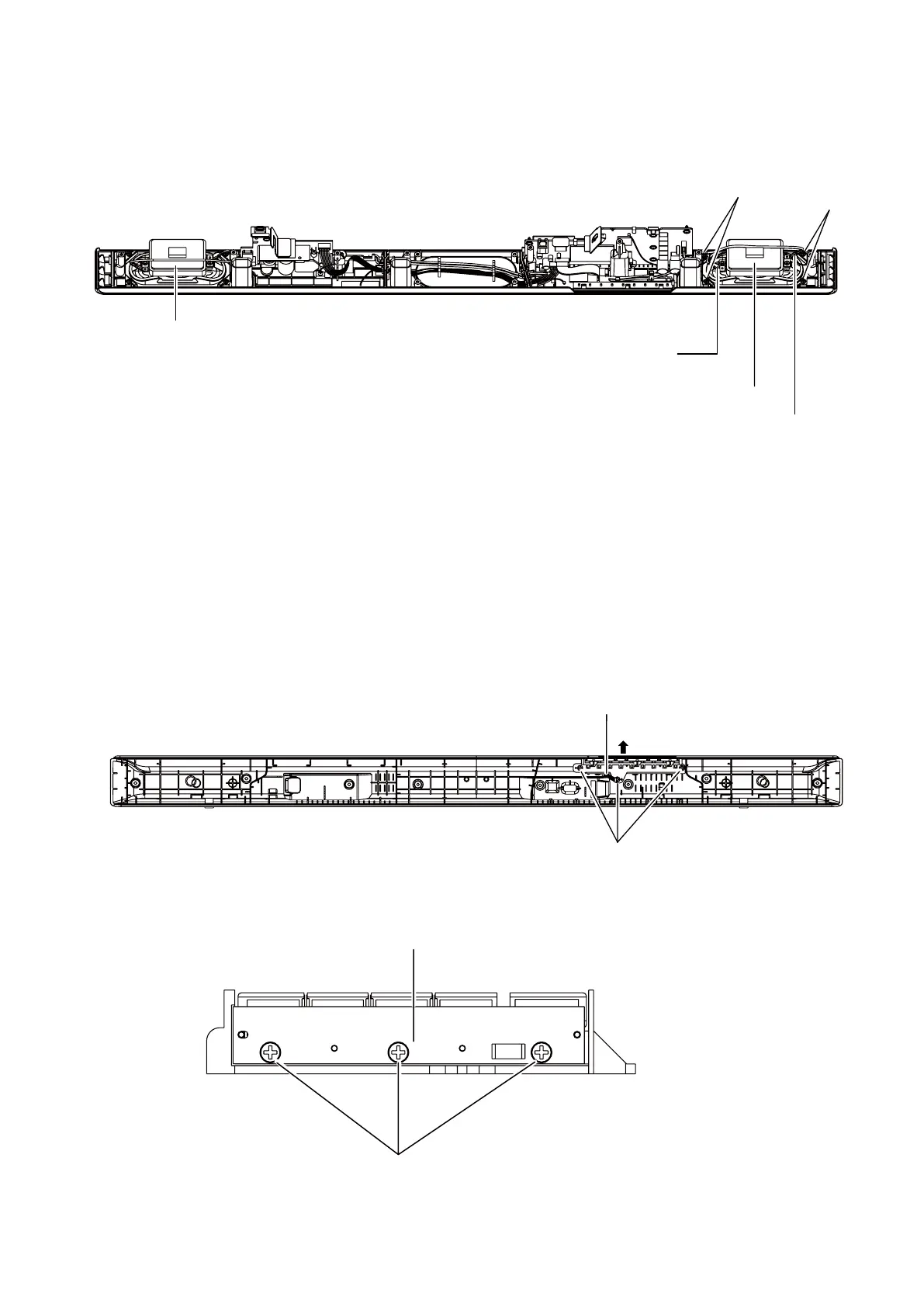

10.3.6. Speaker
1. Disconnect 2 Speaker Cable Terminals.
2. Remove 4 Black Screws (A).
3. Remove the Speaker 1.
(Remove Speaker 2 in the same way.)
Speaker Cable
Terminal(-)
Speaker 2
Speaker 1
Speaker Cable
Terminal(+)
Black Screw (A)
Black Screw (A)
Key P.C.B.
10.3.7. Key P.C.B.
1. Disconnect connector (A).
2. Remove 3 Black Screws (C).
3. Pull the Key P.C.B. & key button in the direction of arrow.
4. Remove 3 Silver Screws (B).
5. Remove the Key P.C.B..
Connector(A)
Silver Screw (B)
Black Screw (C)
