10.4. Disassembly Procedure of Active Subwoofer (SB-HWA488)

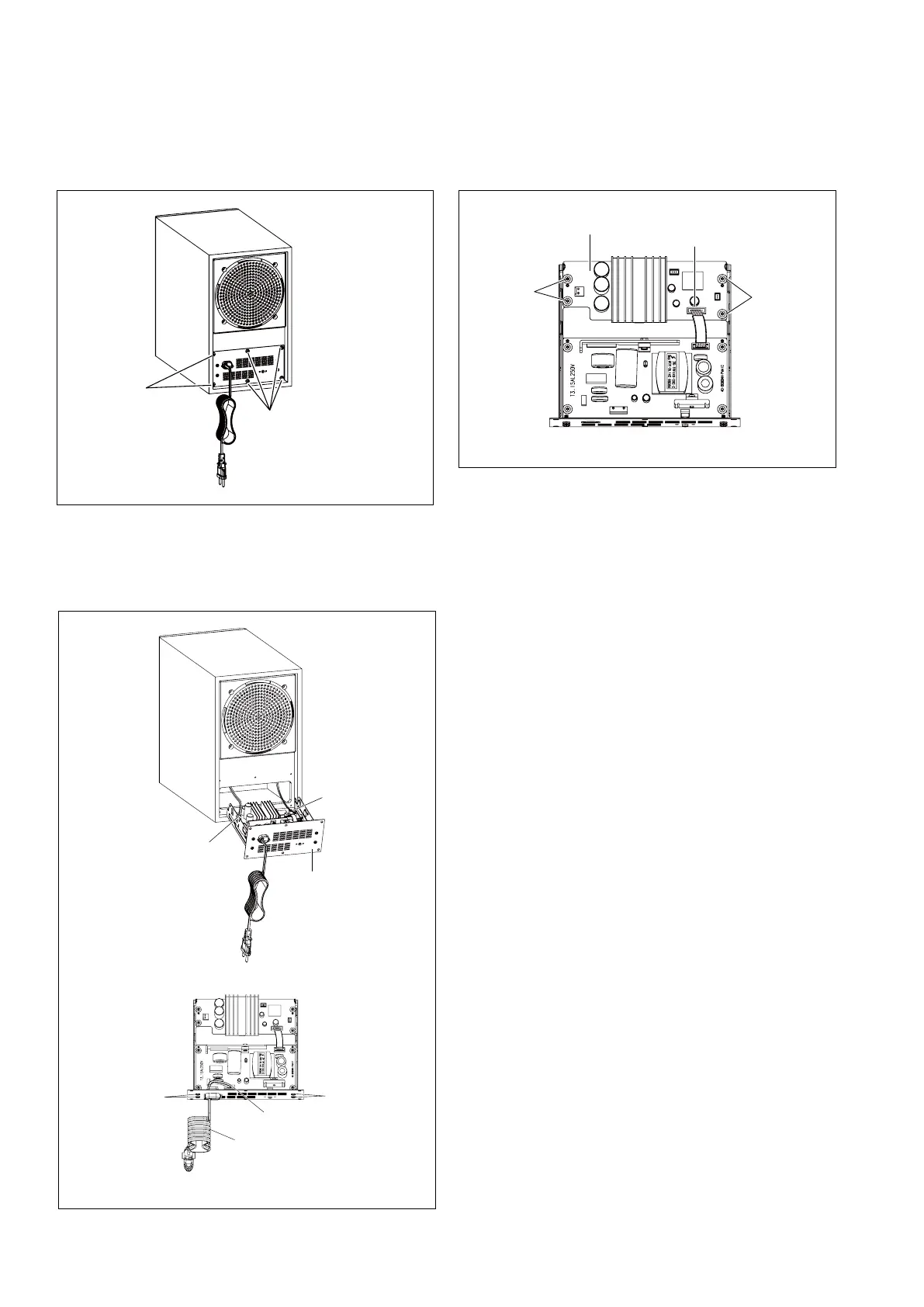

10.4.1. Back Panel Unit (Back Panel+AC
Cord)
1. Remove 6 Black Screws (A).
Black Screw (A)
2. Pull the Back Panel Unit in the direction of your side.
3. Disconnect connector (A),(B),(C).
4. Remove 4 Black Screws (B).
5. Remove the Back Panel Unit.
Connector(A)
Connector(B)
Back Panel Unit
10.4.2. Main P.C.B.
1. Remove 4 Silver Screws (A).
2. Disconnect connector (A).
3. Remove the Main P.C.B. .
Connector(A)
Silver
Screw (A)
Main P.C.B.
Black Screw (A)
Connector(C)
AC Cord
Silver
Screw (A)
Black Screw (B)
Black Screw (B)
To Next Page
