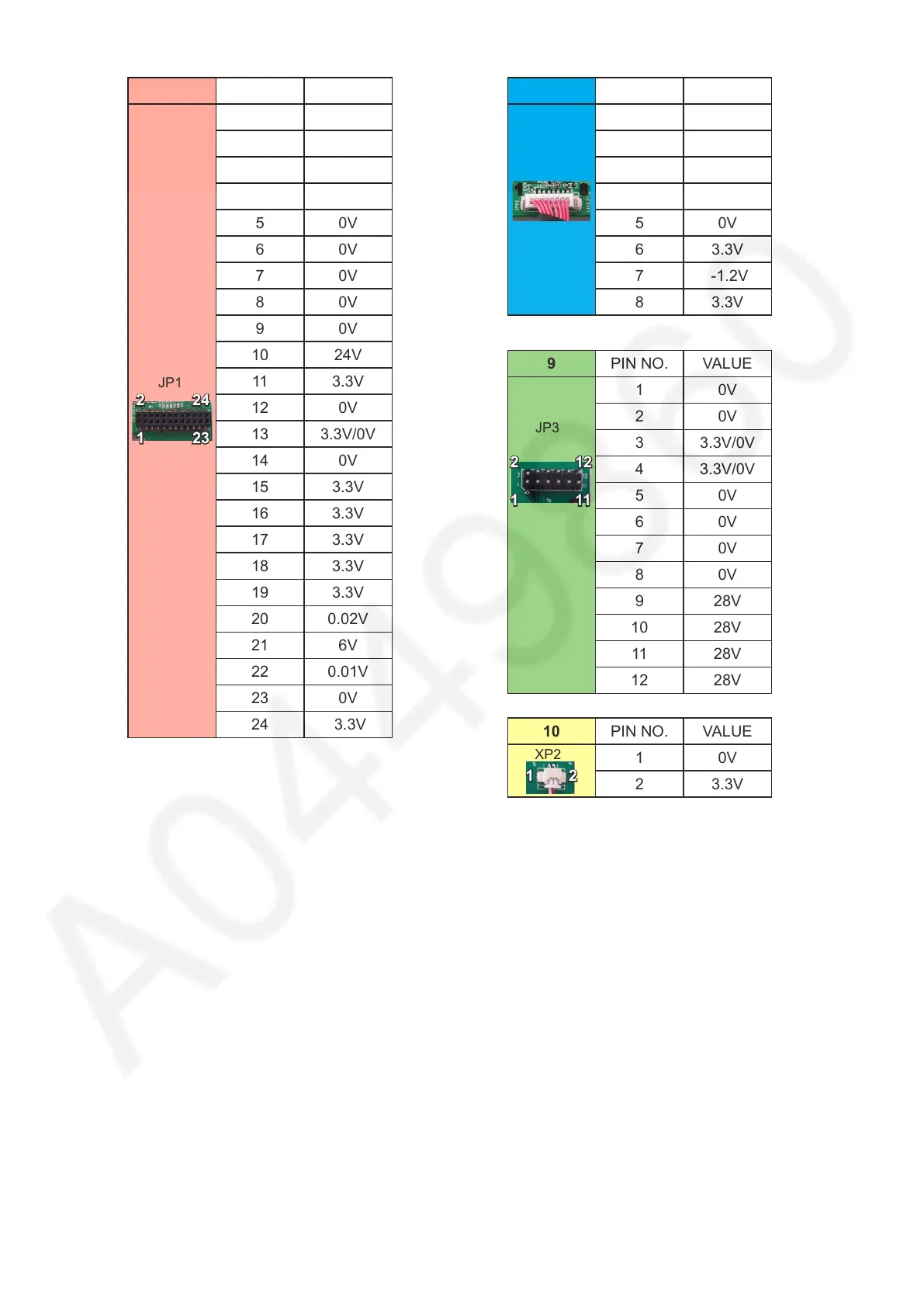

Panasonic SC-HTB690EB - Voltage Data - Main Unit (Continued); Additional Main Unit Connector Voltages

25
8 PIN NO. VALUE
1 3.3V
2 3.3V
3 0V
4 0.02V
5 0V
6 3.3V
7 -1.2V
8 3.3V
7 PIN NO. VALUE
1 28V
2 28V
3 28V
4 28V
5 0V
6 0V
7 0V
8 0V
9 0V
10 24V
11 3.3V
12 0V
13 3.3V/0V
14 0V
15 3.3V
16 3.3V
17 3.3V
18 3.3V
19 3.3V
20 0.02V
21 6V
22 0.01V
23 0V
24 3.3V
9 PIN NO. VALUE
1 0V
2 0V
3 3.3V/0V
4 3.3V/0V
5 0V
6 0V
7 0V
8 0V
9 28V
10 28V
11 28V
12 28V
JP1
XP112
JP3
1 23
2 24
10 PIN NO. VALUE
1 0V
2 3.3V
XP2
1 8
1 11
2 12
1 2
