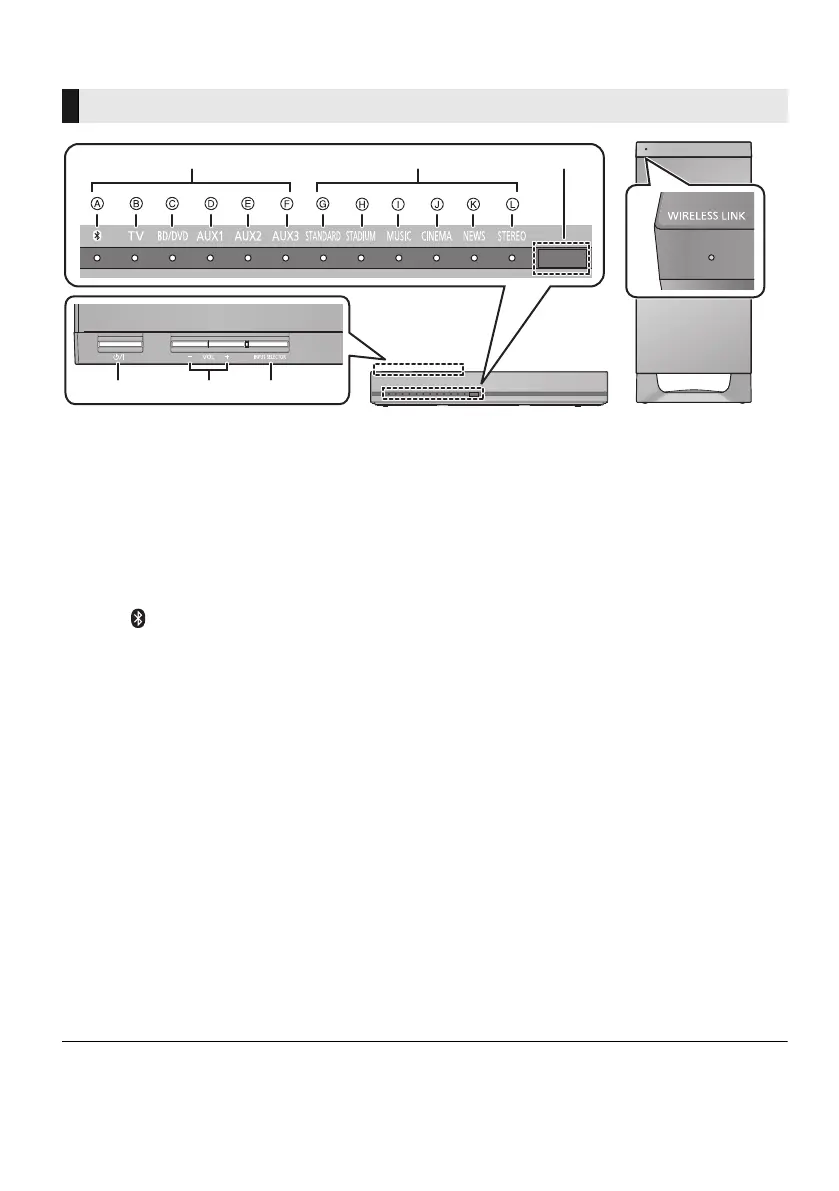

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system
3 Select the input source
“TV”---------#“BD/DVD”---------#“AUX1”
^-- “”(- “AUX3”(- “AUX2”(}
4 Input selector indicators*
1
A Bluetooth
®
indicator
Lights blue when the Bluetooth
®
device is
the audio source
B TV indicator
Lights green when the TV is the audio
source
C BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
D AUX1 indicator
Lights amber when the device connected
to the AUX1 terminal is the audio source
E AUX2 indicator
Lights amber when the device connected
to the AUX2 terminal is the audio source
F AUX3 indicator
Lights amber when the device connected
to the AUX3 terminal is the audio source
5 Sound mode indicators*
1
G STANDARD indicator
Lights when STANDARD is the current
sound mode
H STADIUM indicator*
2
Lights when STADIUM is the current
sound mode
I MUSIC indicator*
2
Lights when MUSIC is the current sound
mode
J CINEMA indicator
Lights when CINEMA is the current
sound mode
K NEWS indicator
Lights when NEWS is the current sound
mode
L STEREO indicator
Lights when STEREO is the current
sound mode
6 Remote control signal sensor (> 8)
7 WIRELESS LINK indicator (> 28)
*1
The indicators will also blink in various conditions. (> 37)
*2
The indicator blinks for 5 sec when the main unit detects an audio format.
To manually verify the current audio format and the corresponding indicators, refer to page 32 (Audio
format indicator).
This system (Front)
7
1
2
3
456
Main unit
Active subwoofer
