Panasonic SC-HTB770 Operating Instructions

Before use
RQT9849
7

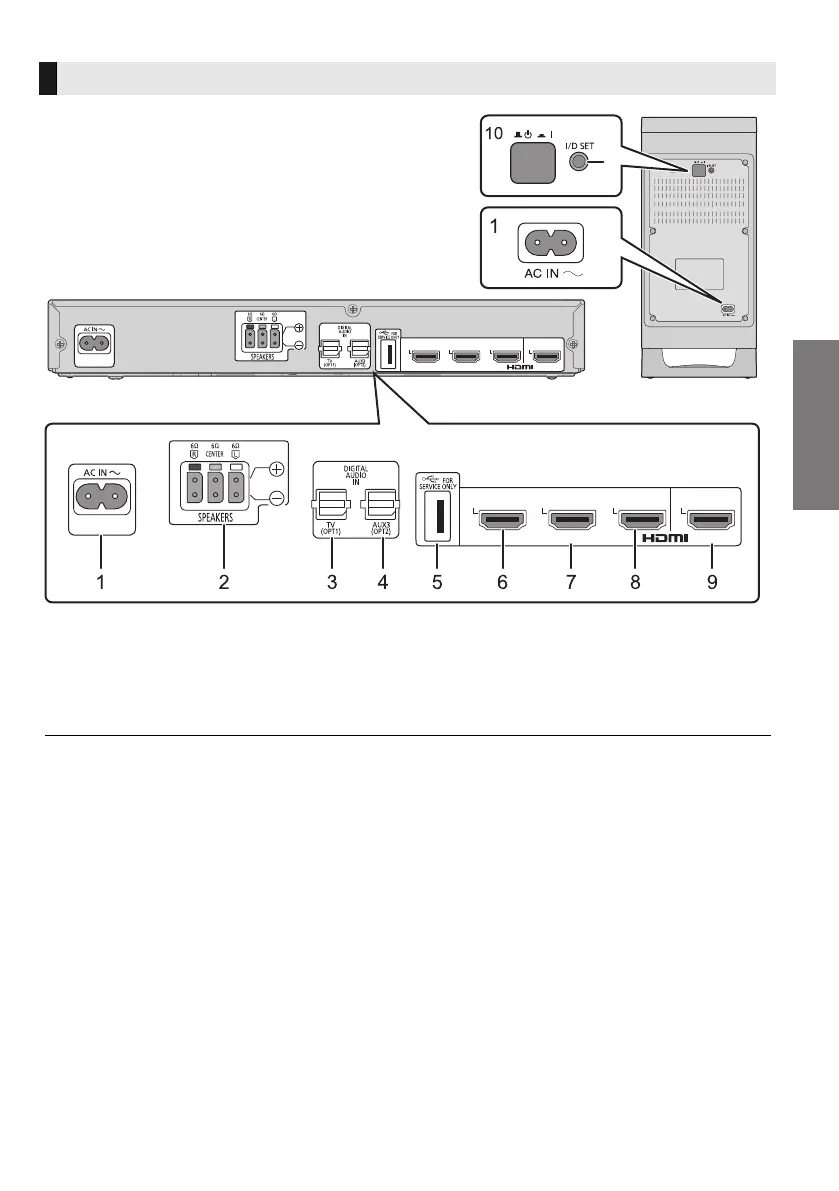

1 AC IN terminal (> 27)
2 Speaker terminals (> 27)
3 TV terminal (> 25)
4 AUX3 terminal (> 26)
5 USB port (for service use only)
6 AUX2 terminal (> 26)
7 AUX1 terminal (> 26)
8 BD/DVD terminal (> 26)
9 HDMI OUT terminal (ARC compatible) ( > 25)
10 Active subwoofer on/off button (> 28)
* The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 36)
