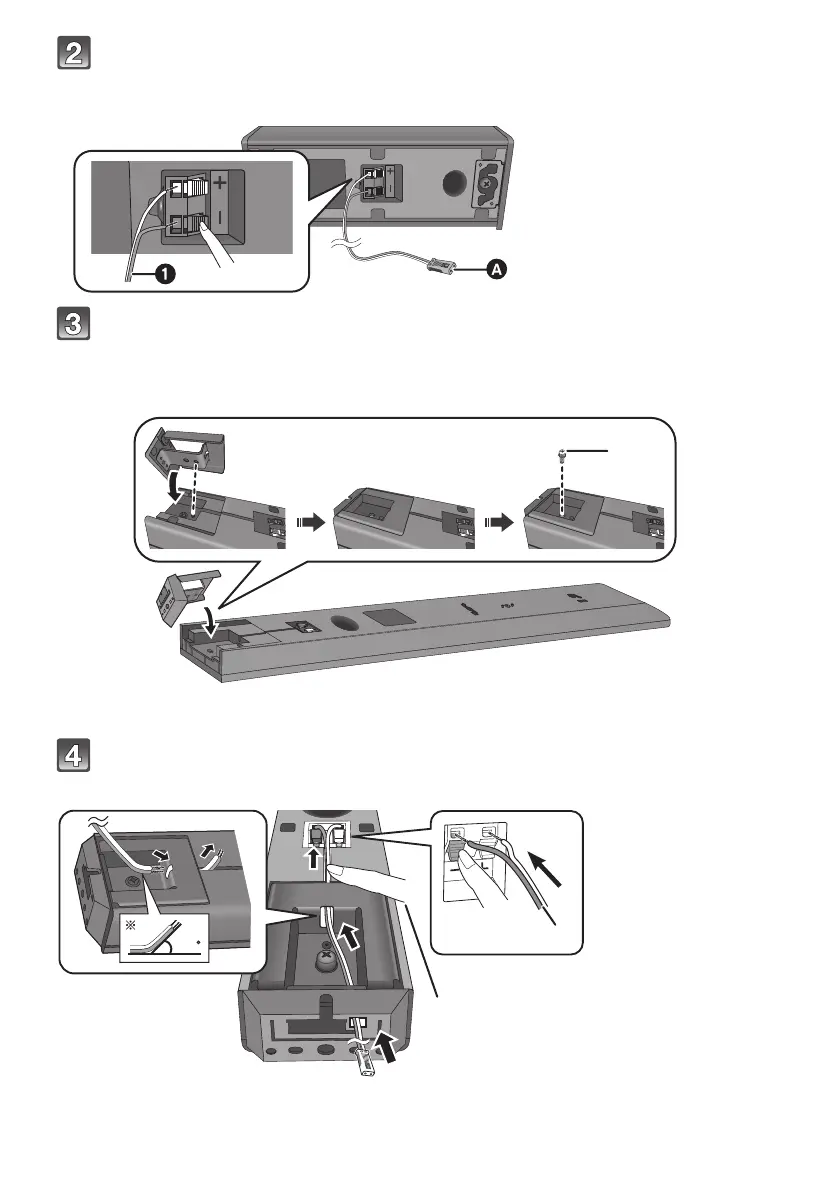

Assemble the center speaker:
Connect the speaker cable.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Assemble the front speakers:
Attach the stand neck.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
Assemble the front speakers:
Connect the speaker cables.
§ If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm (
25
/32q) from the tip, at an angle of approx. 45
o
(as illustrated above).
A Center speaker
connector
1 Insert the wire fully.
r: White
s: Blue line
A Screw (supplied)
≥ Tighten securely.
1 Insert the wire fully.
r: White
s: Blue line
≥ Insert the wire fully, taking
care not to insert beyond
the wire insulation.
2 Press into the groove.
45
