8
VQT5J41
Getting started
Step 1 Connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.
A Optical digital audio cable
When you use the optical digital audio cable, insert the tip correctly into the terminal.
Do not bend the optical digital audio cable.
The optical input supports PCM only.
B Audio cable
Connect only after all other connections are completed.

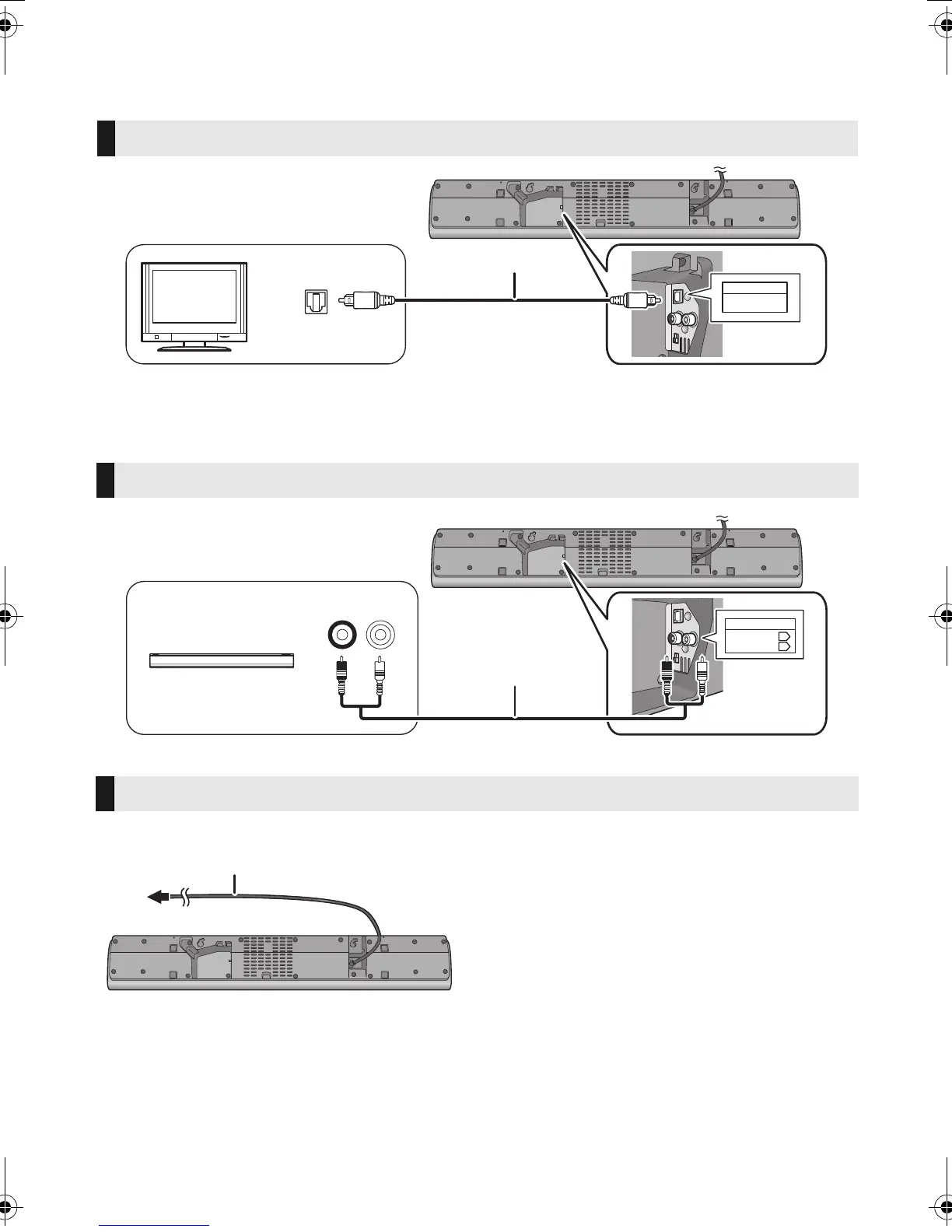

Connection with the TV
Connection with other devices
AC power supply cord connection
C To an AC outlet
D AC power supply cord
This system consumes a small amount of AC power
(> p. 21) even when it is turned off. In the interest
of power conservation, if you will not be using this
system for a long time, unplug it from the AC outlet.
OPTICAL
OUT
A
TV
OPTICAL
DIGITAL
AUDIO IN
TV
L
R
AUDIO OUT
B
BD/DVD
AUDIO IN
WHITE:
RED:
L
R
e.g., Blu-ray Disc player
D
C
