You can direct the audio signal from the
connected Blu-ray Disc player, DVD player, Set
Top Box, etc. to this system.
Preparation
≥ Connect the main unit to the TV. ( 8)
A HDMI cable
Depending on how the main unit is setup, it may
block the TV’s remote control signal sensor,
stopping the TV’s remote control from working.
Use the supplied Ir system cable if this occurs.
The TV remote control signals received by the
main unit are sent to the TV to operate it.
≥ For the operation range, refer to page 7.
≥ Do not use any other IR Blaster except the
supplied one.

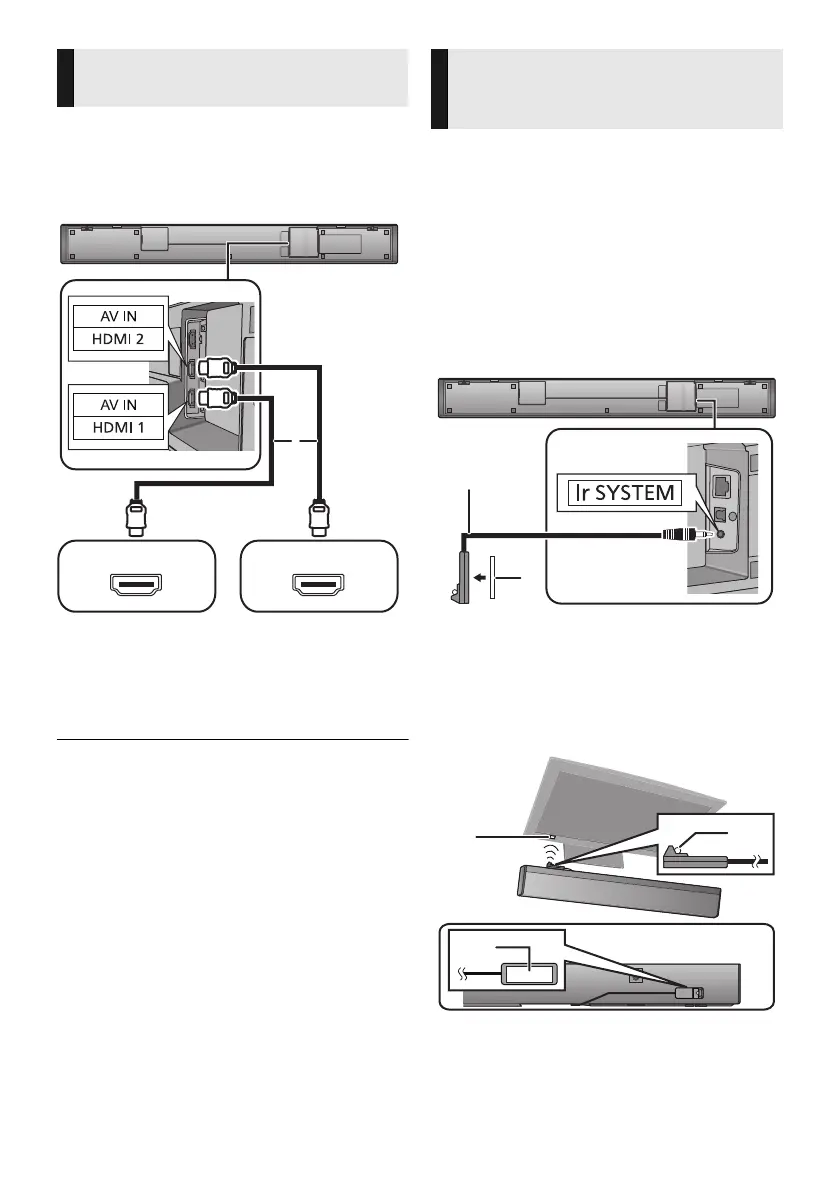

1 Connect the jack plug to the main
unit’s Ir SYSTEM terminal.
A IR Blaster (supplied)
B Adhesive tape (supplied)
2 Place the infrared emitter in sight of
the TV’s remote control signal sensor.
Placement example
On the rear of the main unit:
C TV remote control signal sensor
D Infrared emitter
E Adhesive tape (supplied)
Connection from an HDMI
compatible device

≥ Refer to the operating instructions of the connected HDMI
compatible device for the necessary setting, to output the
video and audio signals.
HDMI OUT HDMI OUT

e.g.,
Blu-ray Disc player
e.g.,
Set top box
Using the IR Blaster
(When the remote control does not work
properly)





SC-HTB900-EGEBGN-TQBM0479_eng.book 10 ページ ２０１９年４月１６日 火曜日 午後７時５８分

Panasonic SC-HTB900 Specifications

General

Game mode	Yes
RMS rated power	505 W
Audio output channels	3.1 channels
Wi-Fi	-
Bluetooth version	4.2
HDMI ports quantity	3
Connectivity technology	Wired
Impedance	4 Ω
Soundbar speaker RMS power	85 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Soundbar power consumption	40 W
Power consumption (standby)	0.3 W
Product color	Black

Weight and Dimensions

Depth	129 mm
Width	1050 mm
Height	78 mm
Soundbar weight	6000 g
Subwoofer depth	306 mm
Subwoofer width	180 mm
Subwoofer height	408 mm
Subwoofer weight	5400 g
