13
TQBM0479
Additionally required accessories (commercially available)
≥ Fall prevention cord ..................................................................................................................... k 2
≥ Screw eyes (to attach the fall prevention cord) ............................................................................ k 2
≥ Use commercially available screws that are capable of supporting over 60 kg.
≥ Use a cord that is capable of supporting over 60 kg (with a diameter of about 1.5 mm).
≥ Lay the unit on a blanket or soft cloth for assembly.

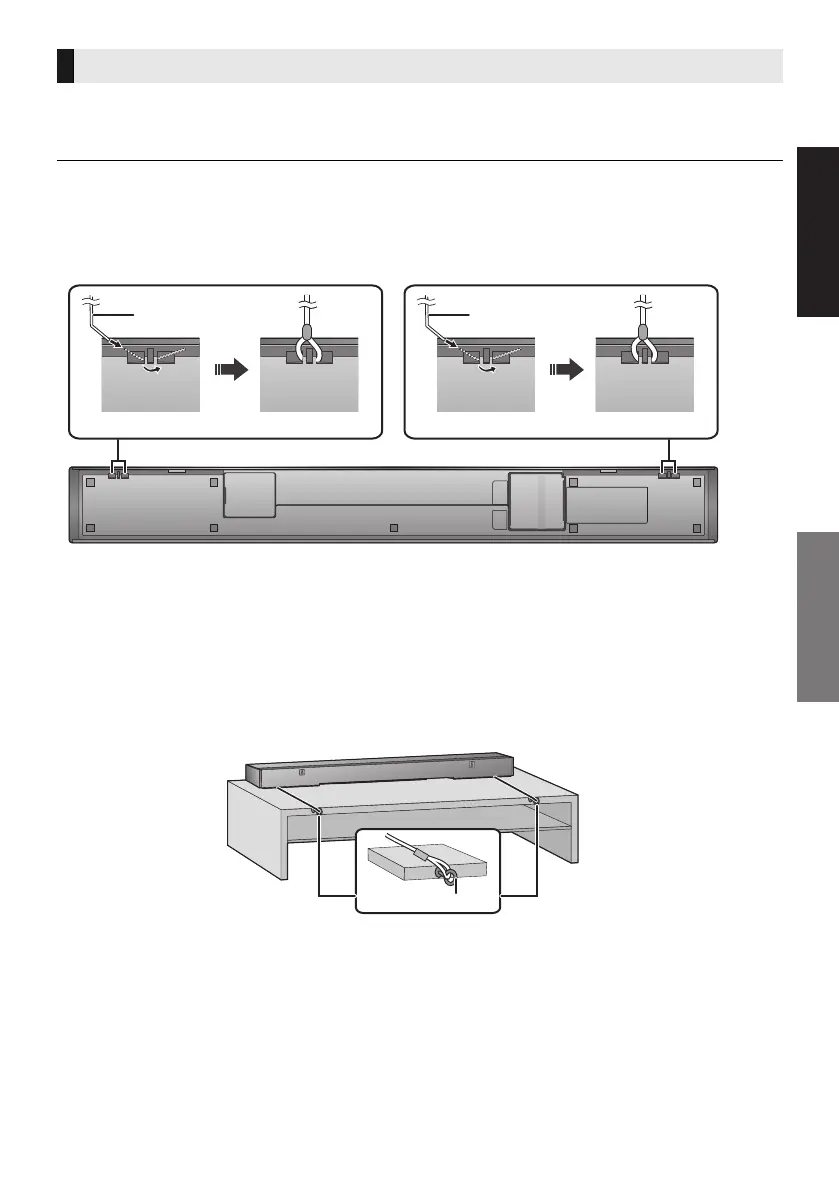

1 Attach the cord to the main unit.
2 Place the main unit in the desired position and attach each cord onto the rack or
table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.
When placing the main unit in a rack or on a table
A Cord*
* If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about 5 mm
apart from the tip, at an angle of 45
o
(as illustrated above).
B Screw eye
≥ Attach at a position capable of supporting over 60 kg.
≥ Depending on the placement of the main unit, the screwing position of the screw eye may differ.
∫ When placing the main unit in front of the TV
The main unit may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic
Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D
compatible TV.
≥ If interference occurs, move the main unit further away from the TV. If the TV still does not function
correctly, try using it in a rack or in the wall mount position.
SC-HTB900-EGEBGN-TQBM0479_eng.book 13 ページ ２０１９年４月１６日 火曜日 午後７時５８分
To Next Page
