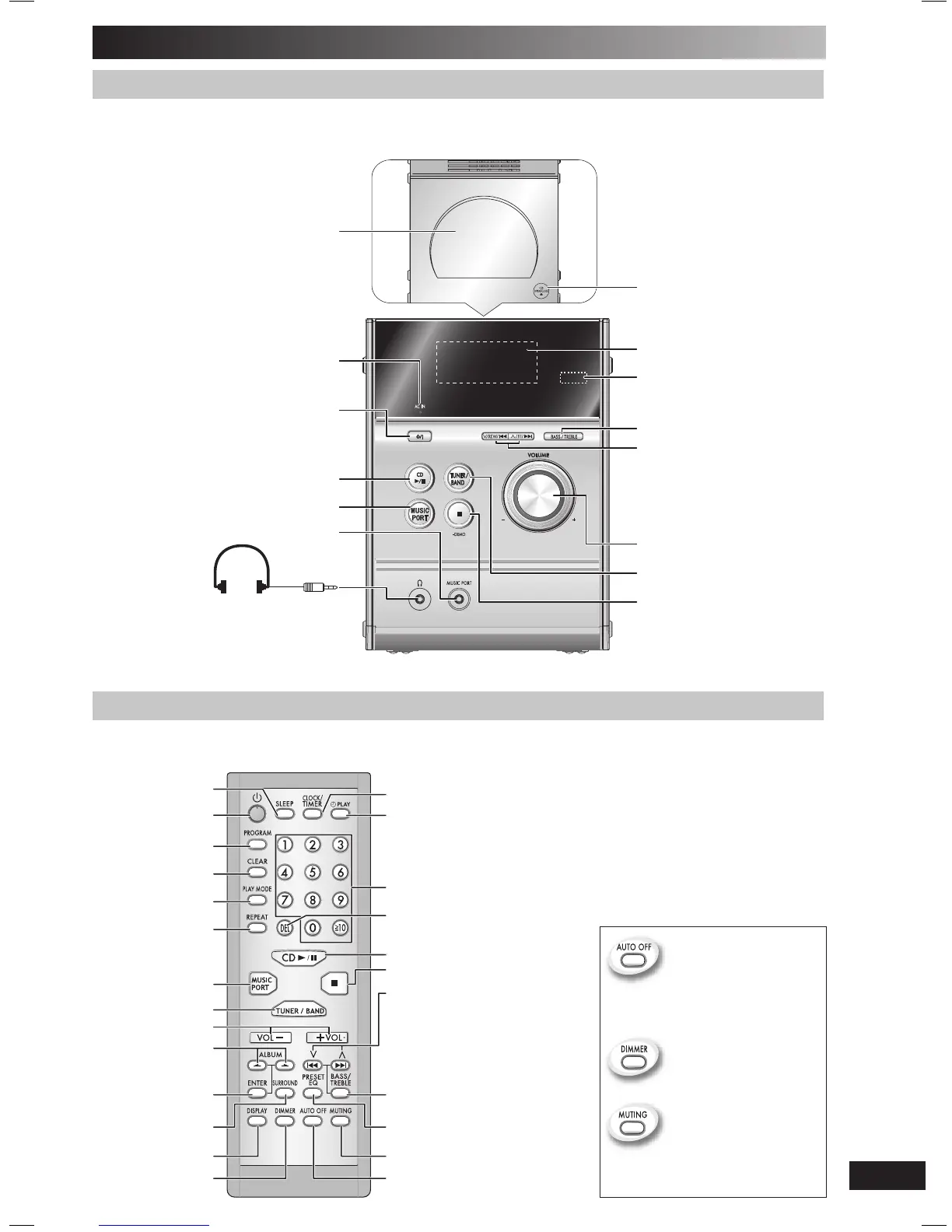

Overview of controls
Main unit
Main unit
Refer to the numbers in parentheses for page reference.
Top of unit
3 Music port selection (9)
Disc lid (6)
Remote control sensor
1 Standby/on switch (y/l) (6, 8)
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power
.
Disc lid open/close (6)
Display panel
5 Volume control
2 Disc play/pause (6)
Track skip/search, tune/
preset channel selection,
time adjustment, bass/
treble adjustment
4 Bass/Treble selection (9)
Stop/Demo (4, 6)
AC supply indicator (AC IN)
This indicator lights when the unit is
connected to the AC mains supply.
Music port jack (9)
Headphone jack (PHONES)
Avoid listening for prolonged periods
of time to prevent hearing damage.
Plug type: 3.5
mm stereo
(not included)
6 Tuner/Band selection (7)
Remote control
Remote control
Buttons such as 1 function the same as the controls on the main unit.
This function allows you
to turn off the unit in disc
mode only after left unused
for 10 minutes.
The setting is maintained
even if the unit is turned off.
Dims the display panel.
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
Clock/Timer (8)
Play timer (8)
Numeric (6, 7)
Delete (6)
3
Muting
Auto off
Program (6, 7)
Clear (6)
Play mode (6, 7)
Repeat (6)
Enter (6)
Surround (9)
Display (6, 7)
Dimmer
Sleep timer (8)
4
Preset EQ (9)
2
Album selection (6)
Stop (6)
1
6
5
