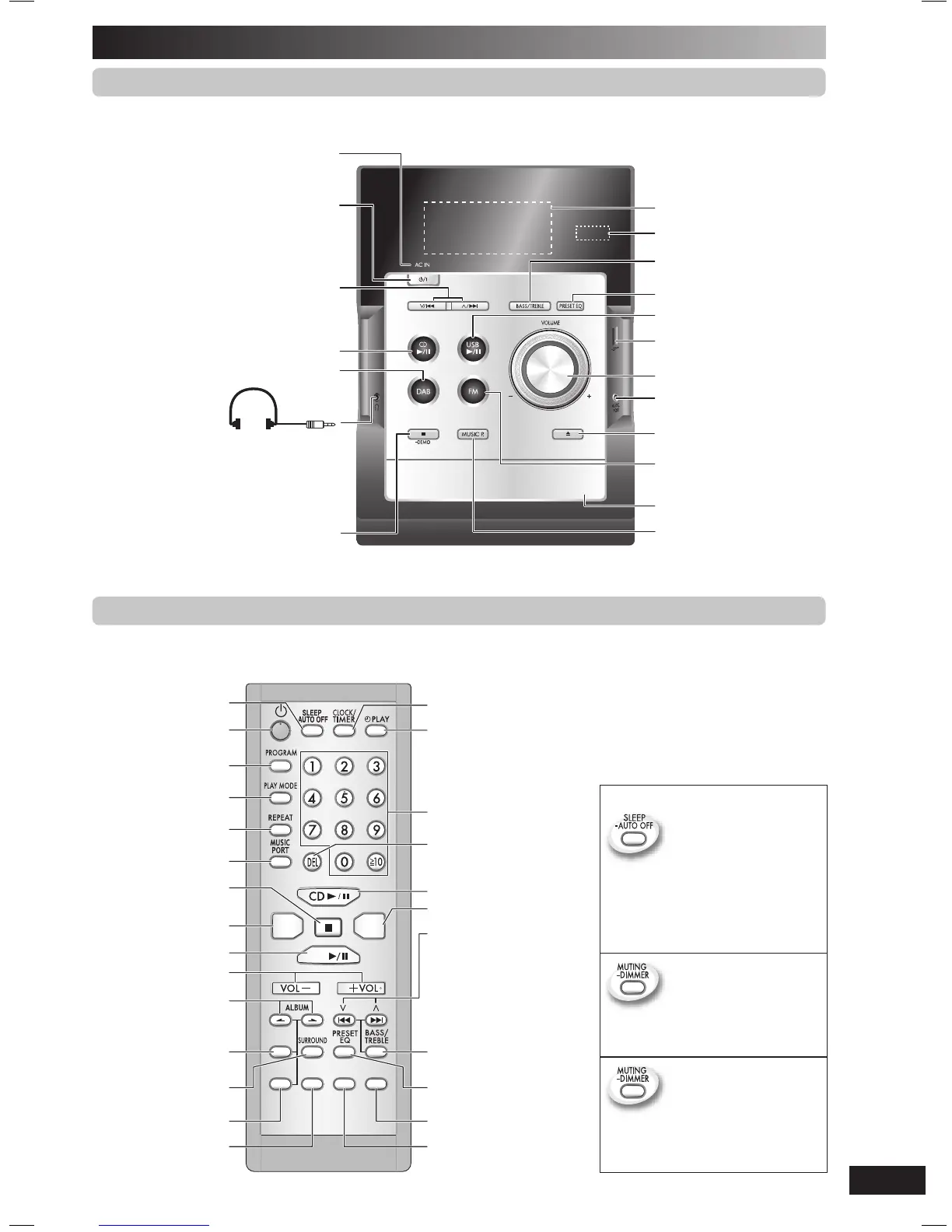

Main unit
Refer to the numbers in parentheses for page reference.
3 DAB selection (12)
1 Standby/on switch (y/l) (8, 15)
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power.
2 Disc play/pause (8, 9)
Track skip/search, tune/preset channel
selection, time adjustment,
bass/treble adjustment
Stop/Demo (6, 8, 9, 17)
AC supply indicator (AC IN)
This indicator lights when the unit is
connected to the AC mains supply.
9 Music port selection (17)
Headphone jack (
l
)
Avoid listening for prolonged periods of
time to prevent hearing damage.
Plug type: 3.5
mm stereo
(not included)
4 Bass/Treble selection (16)
7 Volume control
Disc tray open/close (8)
Remote control sensor
Display panel
Music port jack (17)
6 USB play/pause (17)
USB jack (17)
8 FM radio selection (10)
5 Preset EQ (16)
Disc tray
Overview of controls
This function allows you to
turn off the unit in disc or
USB mode only after left
unused for 10 minutes.
The setting is maintained
even if the unit is turned off.
• Press and hold the button until “A. OFF”
is displayed.
• Press and hold again to cancel.
“A. OFF” is cleared.
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
Dims the display panel.
• Press and hold the button to dims the
display panel.
• To cancel, press and hold again.
Remote control
Buttons such as 1 function the same as the controls on the main unit.
MUTING
-DIMMER
DAB
MENU
ENTER
DISPLAY
DAB
SECONDARY
USB
CLEAR
DAB
FM
Clock/Timer (15)
Play timer (15)
Numeric (8, 9, 10, 12, 13, 17)
8
Stop/Clear (8, 9, 17)
Track skip/search,
tune/preset channel
selection, time adjustment,
bass/treble adjustment
(8, 9, 10, 12, 13, 15, 16, 17)
Display (8, 13, 17)
Mutting/Dimmer
Program (9, 10, 12)
Play mode (8, 10, 12, 13)
Repeat (9)
9
3
Enter (9, 13, 14, 17)
Surround (16)
DAB menu (13, 14)
DAB secondary (13)
Sleep (15)/Auto Off
5
7
Delete (9)
Album selection
(8, 9, 13, 14, 17)
2
6
1
4
