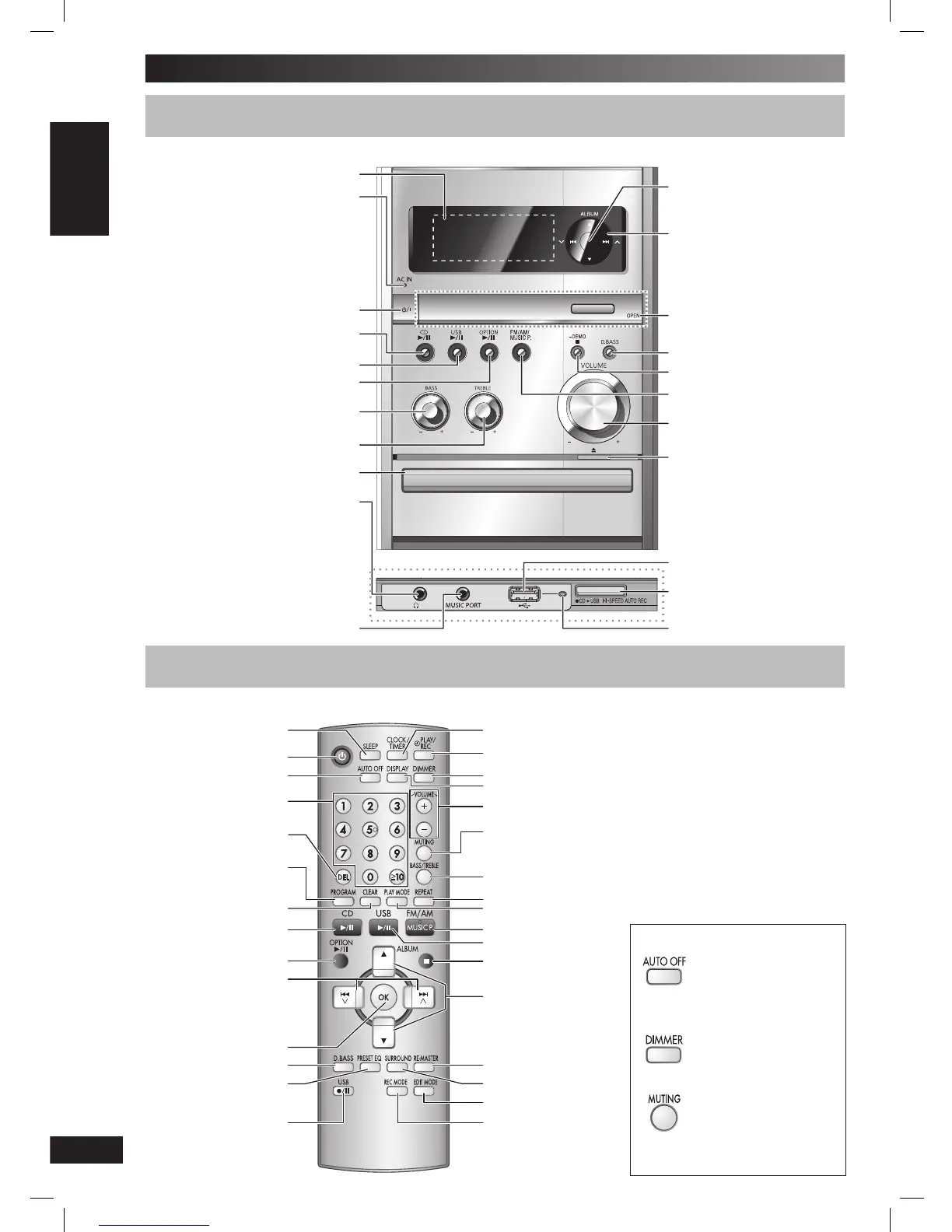

Main unit
Refer to the numbers in parentheses for page reference.
Disc tray (7)
Track skip/search, album
selection, tune/preset
channel selections, time
adjustment (7 to 11, 13, 14)
Remote control sensor
1 Standby/on switch (y/l) (7)
Press to switch the unit from on
to standby mode or vice versa.
In standby mode, the unit is still
consuming a small
amount of power.
3 USB play/pause (11, 13)
Bass adjustment (10)
USB lid (11)
2 Disc play/pause (7, 8, 11, 12)
5 D.BASS selection (10)
AC supply indicator (AC IN)
This indicator lights when the
unit is connected to the AC
mains supply.
4 Option play/pause (14)
Treble adjustment (10)
Stop/Demo (5, 7, 11 to 14)
7 Volume control
Disc tray open/close (7)
6 FM/AM radio, music
port selection (8, 9, 15)
Music Port jack (15)
USB port (11)
CD to USB high speed
auto recording (12)
Headphone jack (
l
)
Avoid listening for prolonged periods
of time to prevent hearing damage.
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Plug type: Ø3.5 mm stereo
(not included)
Display panel
Recording indicator (11)
Remote control
Buttons such as 1 function the same as the controls on the main unit.
Overview of controls
This function allows you to
turn off the unit in disc or
USB mode only after left
unused for 10 minutes.
The setting is maintained
even if the unit is turned off.
Dims the display panel.
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
Clock/Timer (9, 10)
Play timer/Record timer (9, 10)
Muting
7
USB recording mode (13)
Numeric
(7, 9, 11, 15)
Delete (8)
Program (7 to 9)
2
Preset EQ (10)
Sleep timer (9)
Re-Master (10)
Bass/Treble (10)
Clear (8)
4
Album selection,
bass/treble
adjustment
(7, 10, 11, 14)
Dimmer
Display (7, 9, 12 to 14)
3
Stop (7, 11 to 14)
Track skip/search, tune/
preset channel selections,
time adjustment, program
play, program check
(7 to 11, 13, 14)
Surround (10)
Auto off
OK (7, 9, 13 to 15)
1
USB edit mode (12, 13)
Repeat (7)
Play mode (7 to 9, 11)
USB recording
start/pause (11, 12)
6
5
