Panasonic SC-PMX7 - Initial Setup and Connections; Remote Control Preparation; System Connection Guide; Speaker Placement Recommendations

VQT5J67
4

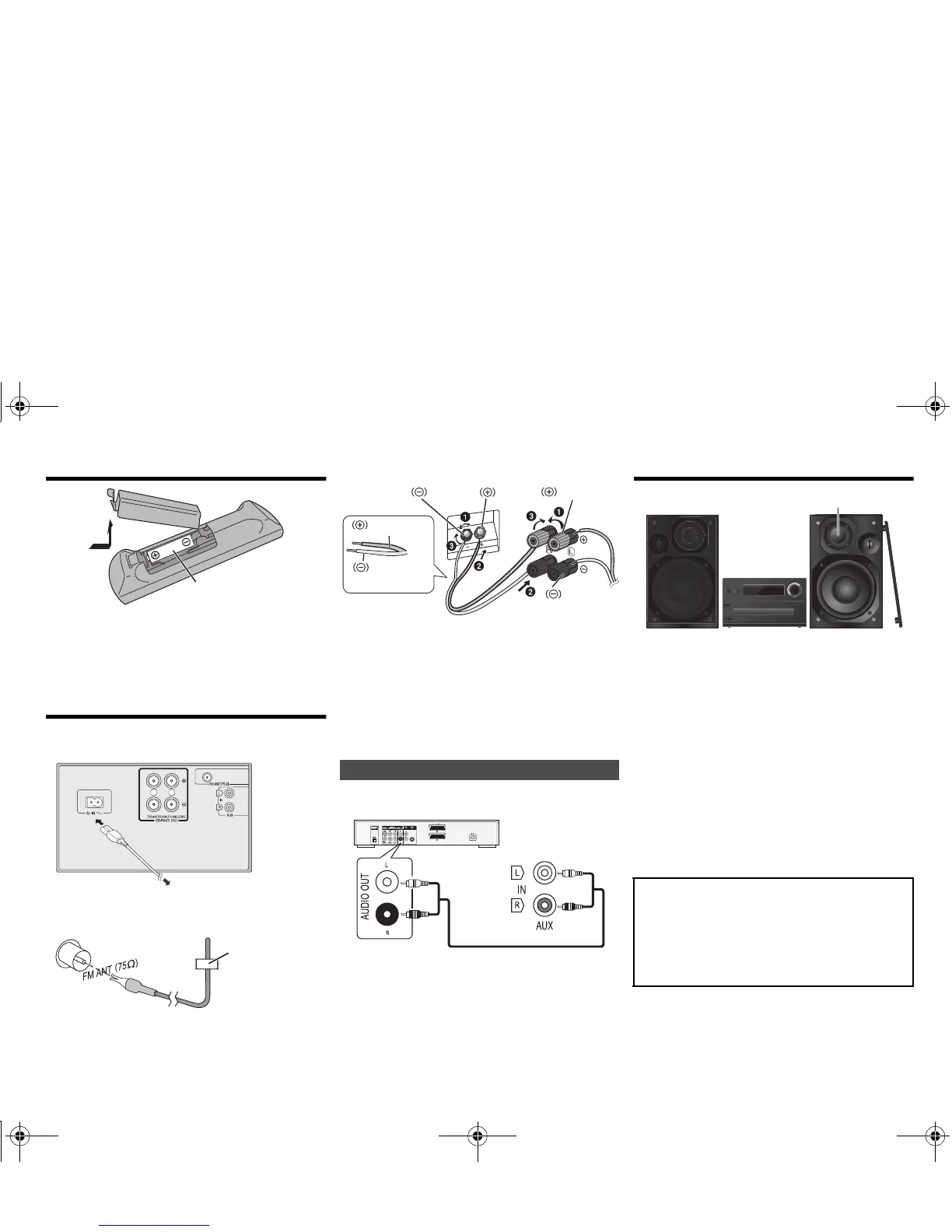

Preparing the remote control
• Use alkaline or manganese battery.
• Install the battery so that the poles (+ and –) align with
those in the remote control.
• Point the remote control at the remote control sensor, away
from obstacles, at a maximum range of 7 m (23 ft) directly
in front of the main unit, within an angle of approximately
30° to the left and right.
Making the connections
Connect the AC power supply cord only after all the
other connections have been made.
1 Connect the FM indoor antenna.
Place the antenna where reception is best.
• Use an FM outdoor antenna if radio reception is poor.
2 Connect the speakers.
Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so may
damage the speakers.
3 Connect the AC power supply cord.
Do not use an AC power supply cord with other equipment.
Conserving power
The system consumes approximately 0.2 W when it is in
standby mode. Disconnect the power supply if you do not use
the system.
Some settings will be lost after you disconnect the system.
You have to set them again.
You can connect a VCR, DVD player etc.
Note:
• Disconnect the AC power supply cord before connection.
• Switch off all equipment and read the appropriate operating
instructions.
• Components and cables are sold separately.
• If you want to connect equipment other than those
described, refer to the audio dealer.
• Sound distortion can occur when you use an adaptor.
Placement of speakers
Place the speakers so that the tweeter is on the inner side.
To prevent damage to the speakers, do not touch the
speaker cones if you remove the nets.
Use only the supplied speakers.
The combination of the main unit and speakers give the best
sound. You can cause damage to the system and decrease
the sound quality if you use other speakers.
Note:
• Keep your speakers at least 10 mm (
13
/32 q) away from the
system for proper ventilation.
• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do not
put them near TVs, PCs or other equipment easily
influenced by magnetism.
• When you play at high levels for a long period, it can cause
damage to the system and decrease the life of the system.
• Decrease the volume in these conditions to prevent
damage:
- When you play distorted sound.
- When you adjust the sound quality.
R6/LR6, AA
33
11
22
RL
To household AC outlet
Tape
(not supplied)
Connecting other equipment
Black
Red
Black
Red
Copper
Silver
DVD player (not supplied)
Rear panel of
this main unit
Audio cable (not supplied)
CAUTION!
• Use the speakers only with the recommended
system. If not, you can cause damage to the
amplifier and speakers and can cause a fire.
Consult an approved service personnel if damage
occurs or if there is a sudden apparent change in
performance.
• Do the procedures included in these instructions
when you attach the speakers.
Tweeter
