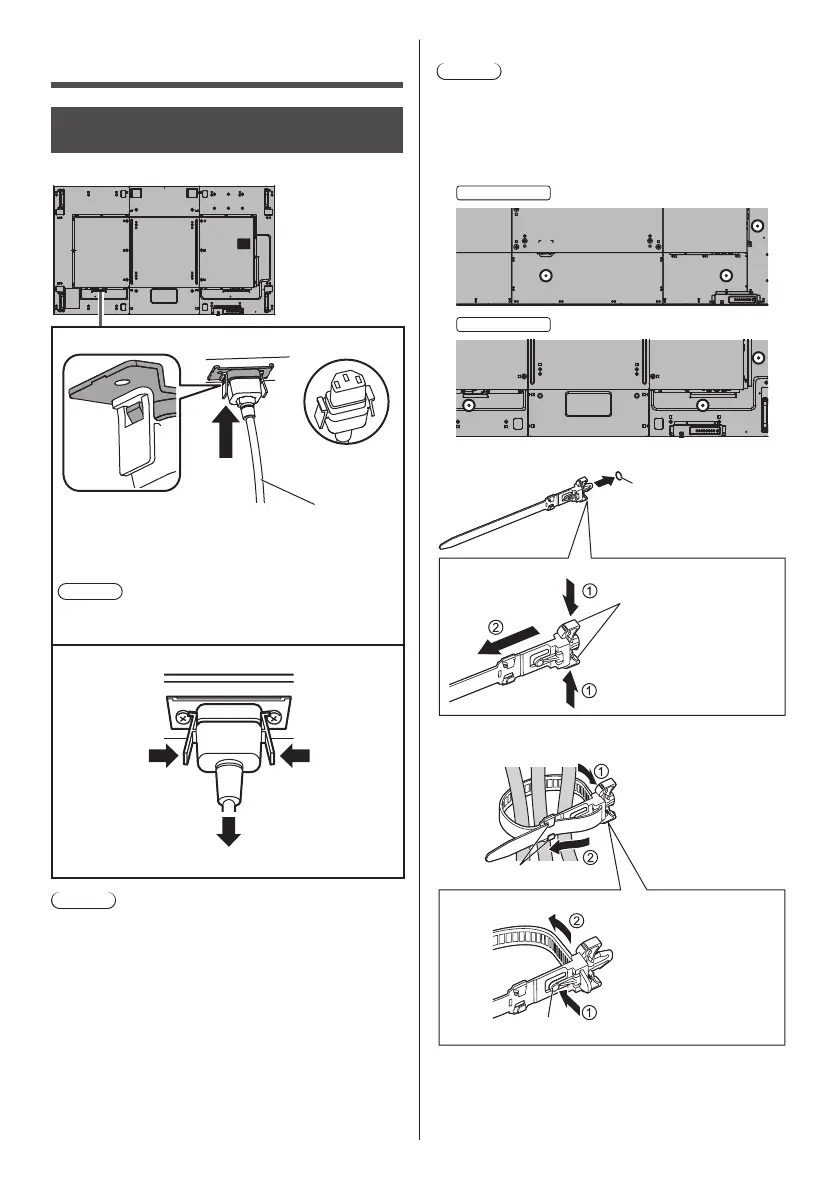

Connections
AC cord connection and fixing /
Cable fixing
Back of the unit
AC cord fixing
AC cord (supplied)
Plug the connector into the display unit.
Plug the connector until it clicks.
Note
●
Make sure that the connector is locked on both the
left and right sides.
Unplug the AC cord
Unplug the connector pressing the two knobs.
Note
●
Do not use an AC cord of which the knobs are
damaged. If it is used with the knobs damaged, a
bad connection may result between the AC cord
connector and the AC IN terminal. For the repair of
the AC cord, consult the dealer where you purchased
the product.
●
When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.
●
The supplied AC cord is for this unit exclusive use. Do
not use this for other purposes.
Cable fixing
Note
●
3 clampers are supplied with this unit. Fix the cables
at 3 locations using the holes for clampers as shown
below.
If you need more clampers, purchase them from your
dealer. (Available from the customer service)
80-inch model
70-inch model
1. Attach the clamper
Keep pushing both side
snaps and pull out the
clamper.
hole
Insert the clamper in a
hole.
To remove from
the unit:
snaps
2. Bundle the cables
Keep pushing the knob
and pull out the tip.
hooks
Set the tip in the hooks
and tighten.
To loosen:
knob
