Panasonic SF2H Series Operating Instructions (Functional Manual)

57
English

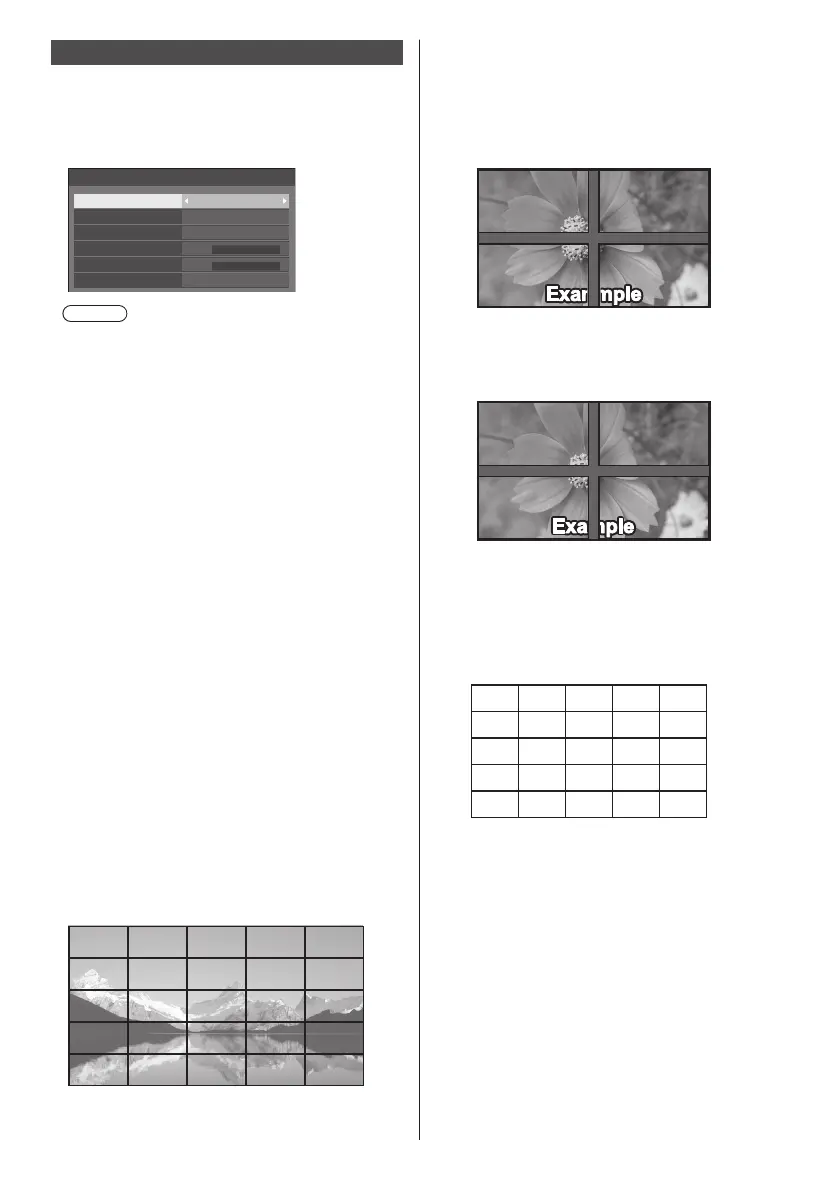

Multi display settings
1 to 10 displays can be aligned in horizontal direction
and vertical direction respectively, and those displays
are regarded as one group. The enlarged image is
shown on the combined display.
[Multi display settings]- submenu screen
0
0
Multi display settings
Multi display setting
Horizontal scale
Bezel H adjustment
Vertical scale
Bezel V adjustment
Location
Off
2
2
A1
Note
●
The settings are memorised separately for each
input terminal.
●
When [Multi display setting] is set to [Off], adjust
to the same angle of view for [Position] (see page
38). Then, set [Multi display setting] to [On]. Again,
make fine adjustment of the angle of view for
[Position].
●
The [Position] menu can be adjusted in the multi
display status.
●
For USB input, [Horizontal scale] and [Vertical
scale] can be set only with the following
combinations.
1 × 2, 1 × 3, 1 × 4, 2 × 1, 2 × 2, 3 × 1, 4 × 1
■ [Multi display setting]
[Off]:
The display is not divided when enlarged.
[On]:
The display is divided when enlarged.
When [On] is set, the display aspect is [16:9].
■ [Horizontal scale]
Set the horizontal scale in the multi display.
1 to 10
■ [Vertical scale]
Set the vertical scale in the multi display.
1 to 10
Example:
[Horizontal scale] [5] and [Vertical scale] [5] is set in
the multi display
■ [Bezel H adjustment] / [Bezel V adjustment]
Adjust the area of image hidden in the joint
horizontally and vertically respectively.
0 to 100
Display example:
Setting value: 0
Displays the entire image including the joint area.
(Suitable when displaying character information
on PC.)
Setting value: 100
Does not display the image of the joint area.
(Suitable when displaying motion pictures.)
■ [Location]
Assign the multi display position.
Example:
[Horizontal scale] [10], [Vertical scale] [10]
A1 A2
....
....
....
....
....
B1 B2
.... ....
A9
B9
....
J1 J2 J9
I1 I2 I9
A10
B10
....
I10
J10
Select from A1 to J10.
●
The displayed content for setting changes
according to the settings for the [Horizontal scale]
and [Vertical scale].
●
By setting [Multi display setting] to [Off], it is
possible to check the location on the screen while
the setting menu is displayed.
