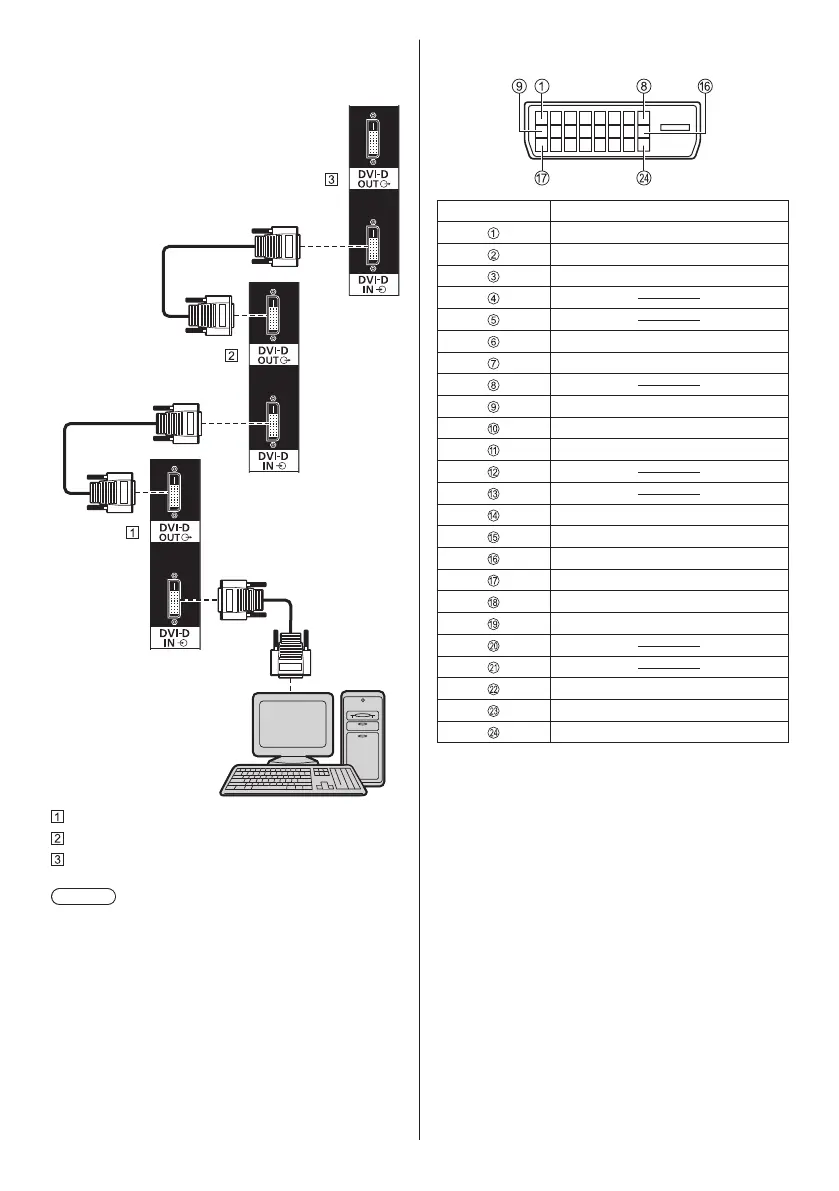

Daisy chain connection
It is possible to daisy chain multiple displays when
displaying the picture on multi screen, etc.
DIGITAL LINK
First display
Second display
Third display
Note
●
It is possible to daisy chain up to 10 displays.
However, the number of connectable displays may be
limited depending on the cables, signals, the devices
used, etc.
●
When inputting HDCP signal, it is possible to daisy
chain up to 8 displays.
●
The DVI-D output function is enabled only for the
DVI-D input.
This is not output if the HDMI or DIGITAL LINK input
is selected. When using the daisy-chain connection
method, all the displays should be in the state where
the picture is displayed via DVI-D IN.
Pin assignments and signal names for DVI-D Input/
Output
Pin No. Signal Name
T.M.D.S. data 2 -
T.M.D.S. data 2 +
T.M.D.S. data 2 shield
DDC clock
DDC data
T.M.D.S. data 1 -
T.M.D.S. data 1 +
T.M.D.S. data 1 shield
+5 V DC
GND (Ground)
Hot plug detect
T.M.D.S. data 0 -
T.M.D.S. data 0 +
T.M.D.S. data 0 shield
T.M.D.S. clock shield
T.M.D.S. clock +
T.M.D.S. clock -
