6© Panasonic Industrial Devices SUNX Co., Ltd. 2016
CHAPTER 2 GENERAL OUTLINE
This chapter gives the system construction, part description, etc. of this device.
2-1 Features
This device is the handy controller for setting each function of the light curtain SF4B
/
SF4B<V2> series and the application expansion unit SF-C14EX.
Besides, this device performs the checking and copying the setting contents of the func-
tion, and protection of writing.
<Functions>
Ɣ Fixed blanking function
Ɣ Floating blanking function
Ɣ Auxiliary output switching function
Ɣ Emission intensity control function
Ɣ Copy function
Ɣ Muting setting changing function
Ɣ Interlock setting changing function
Ɣ External device monitor setting changing function
Ɣ Protective function
Ɣ Initialization function
Ɣ Setting contents monitoring function
Ɣ Override setting changing function

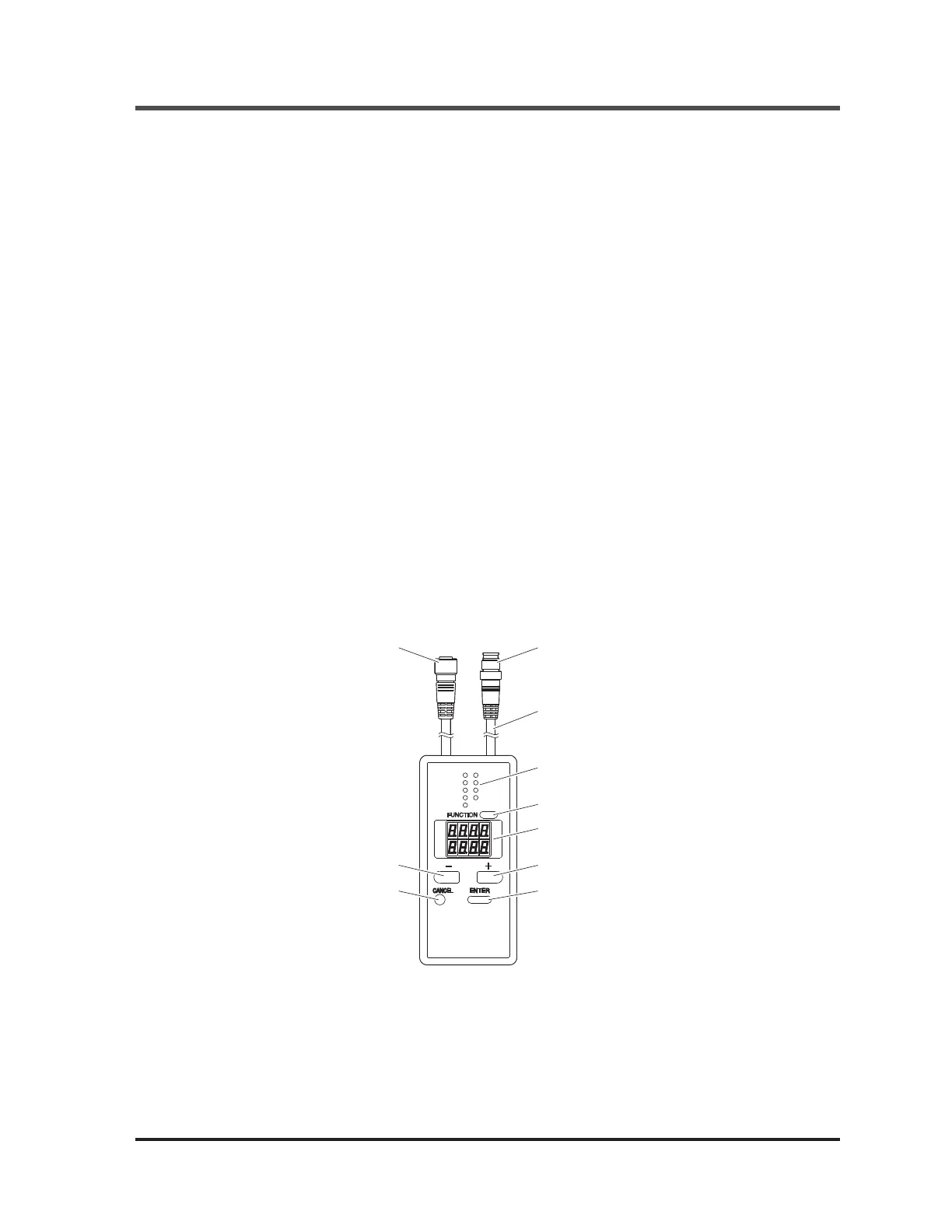

2-2 Part Descriptions
FUNCTION
CANCEL
ENTER
Male connector
Cable (0.5m)
FUNCTION indicator × 9
(Green)
FUNCTION switch
Digital display (Red)
+ switch
ENTER switchCANCEL switch
- switch
Female connector
