Panasonic Studio System 300 - Page 32

Section 5 – Intercom Connection

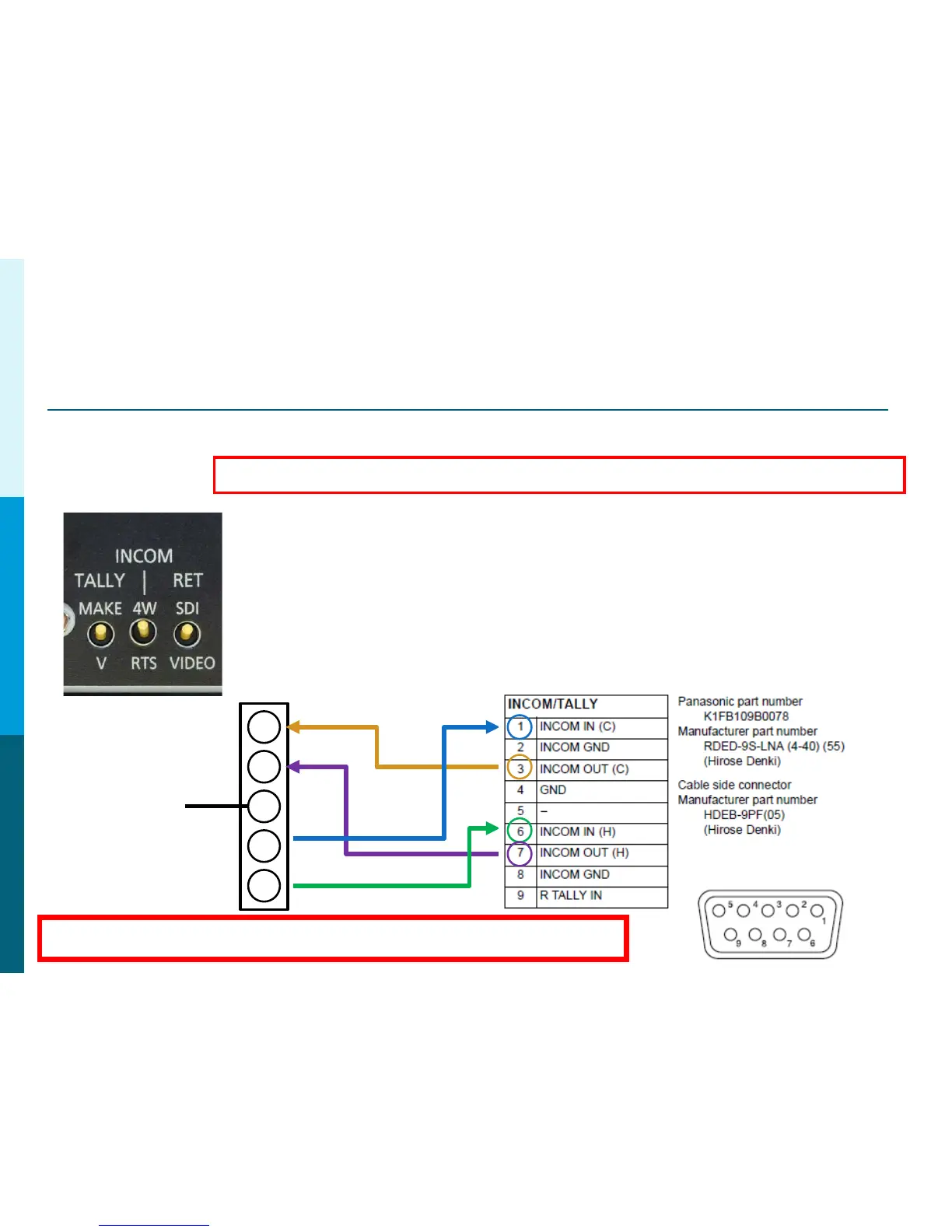

Clear-Com Intercom Connection to AG-BS300
Panasonic Solutions Company
IF4W-4
Terminal
Block
Rear Panel
1
2
3
4
5
RECV
RECV
XMIT
XMIT
INT
GRD
32
A Clear-Com IF4W-4 Interface is required to connect to the AG-BS300.
AG-BS300
1. Set INCOM switch on AG-BS300 to 4W
2. Turn down all volume levels before powering on.
3. Connect Pin 1 on AG-BS300 to Pin 4 on IF4W-4
4. Connect Pin 3 on AG-BS300 to Pin 1 on IF4W-4
5. Connect Pin 6 on AG-BS300 to Pin 5 on IF4W-4
6. Connect Pin 7 on AG-BS300 to Pin 2 on IF4W-4
AG-BS300
IMPORTANT NOTE: If not connecting to an RTS or Clear-Com System, 200ohm Termination
must be installed between Pins 7 and 8 on the AG-BS300 INCOM/TALLY Connection.
