Adjustment of CRT VRS
1. Preparation
a. Set DY to CRT not to tilt up and down left and right deflection.

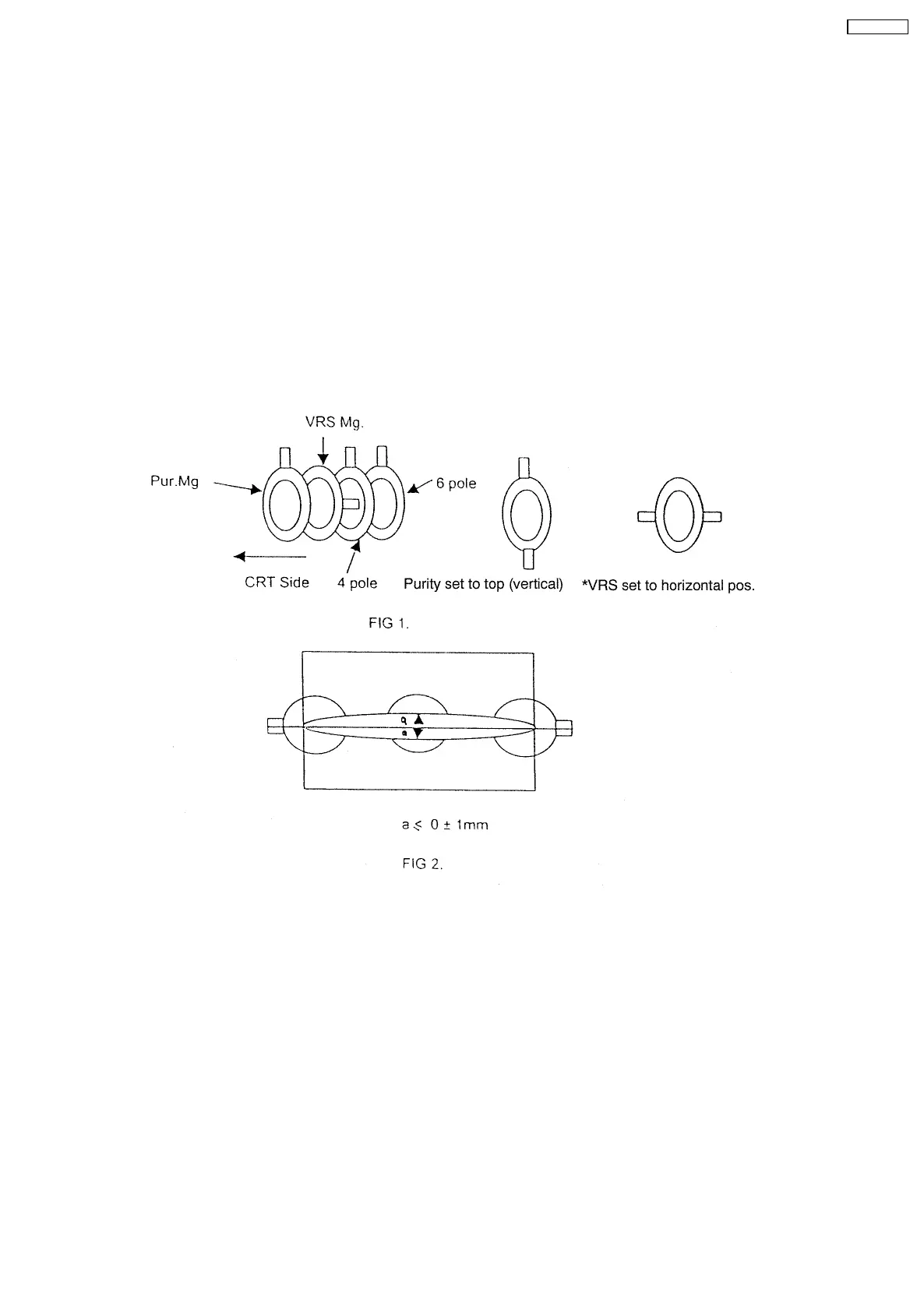

b. Set CY to CRT and set CY magnet primarily (Fig. 1)
Purity magnet : Set purity magnet that 2 magnets are (TOP POSITION)
VRS magnet : Set purity magnet 2 magnets are (HORIZONTAL POSITION)
2. Adjustment
a. Receive that Cross Hatch pattern.
b. Adjust V-SHIFT -50Hz.
c. Set 2 magnets of horizontal position to up and down equally so that it will be the center part of CRT. (Fig. 2)
11
TC-21GX30P
