2 Service Hints
2.1. Service Position for E-Board
1. Remove the back cover.

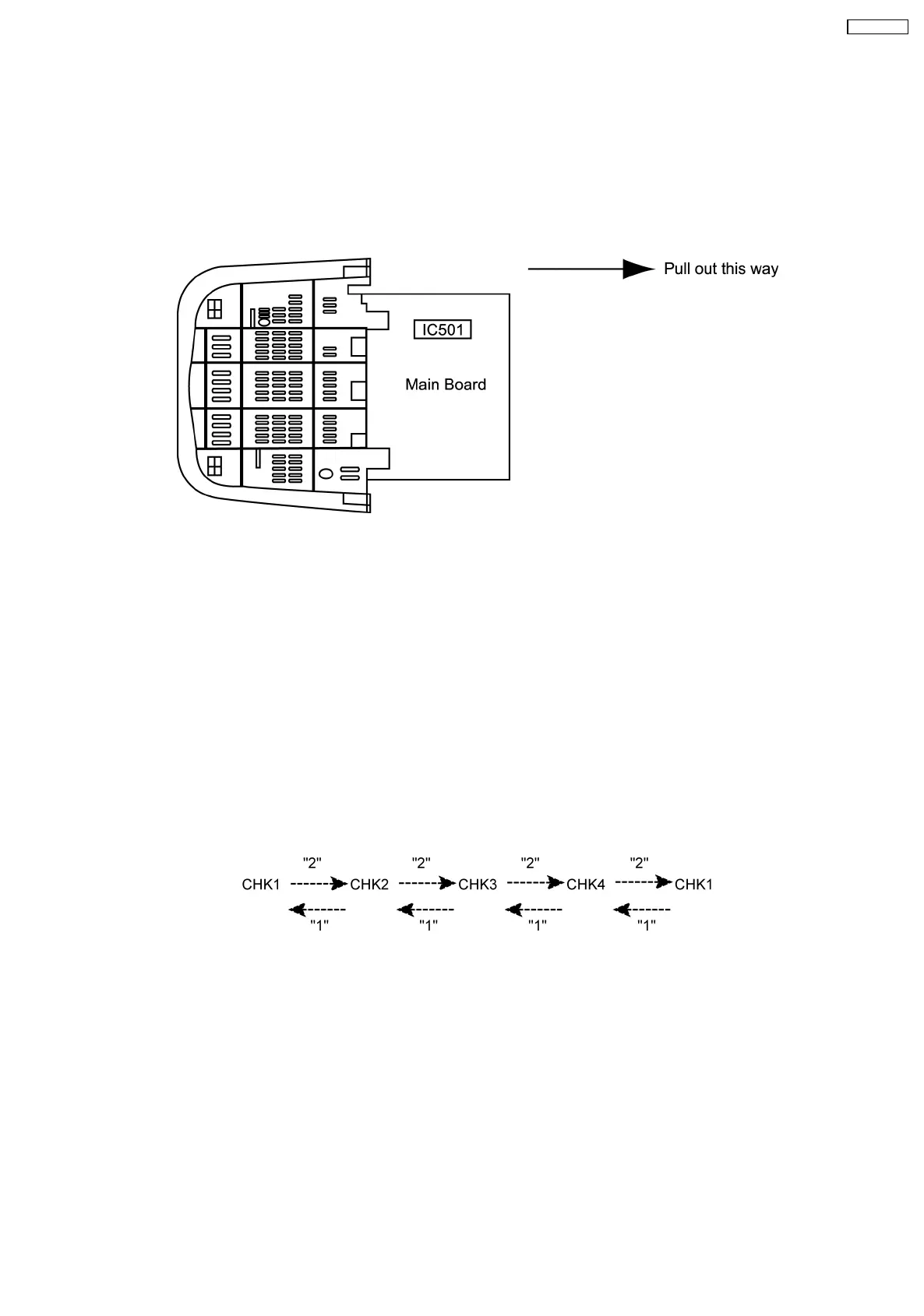

2. Stand the TV set as shown in Fig. 2.
3. Remove the A-Board from the TV set by pulling the main board out as shown in Figure 2.
Fig. 2
2.2. Factory Mode Adjustment
1. Adjustment.
a. Set Timer ON (30 minutes)
Press remote’s RECALL & panel’s vol down key simultaneously to select service mode.
b. CHK should appear on right side of TV screen.
After few seconds CHK 1 should appear on right side of TV screen.
NOTE :
To move from CHK 1 to CHK 2 mode, etc, please follow below rotation:-
c. CHK 1
Press digit key “4” to move option mode forward.
Press digit key “3” to move option backward.
The function rotation will be as follows :-
5
TC-21GX30P
