1.5. GL1 Chassis Block Diagram

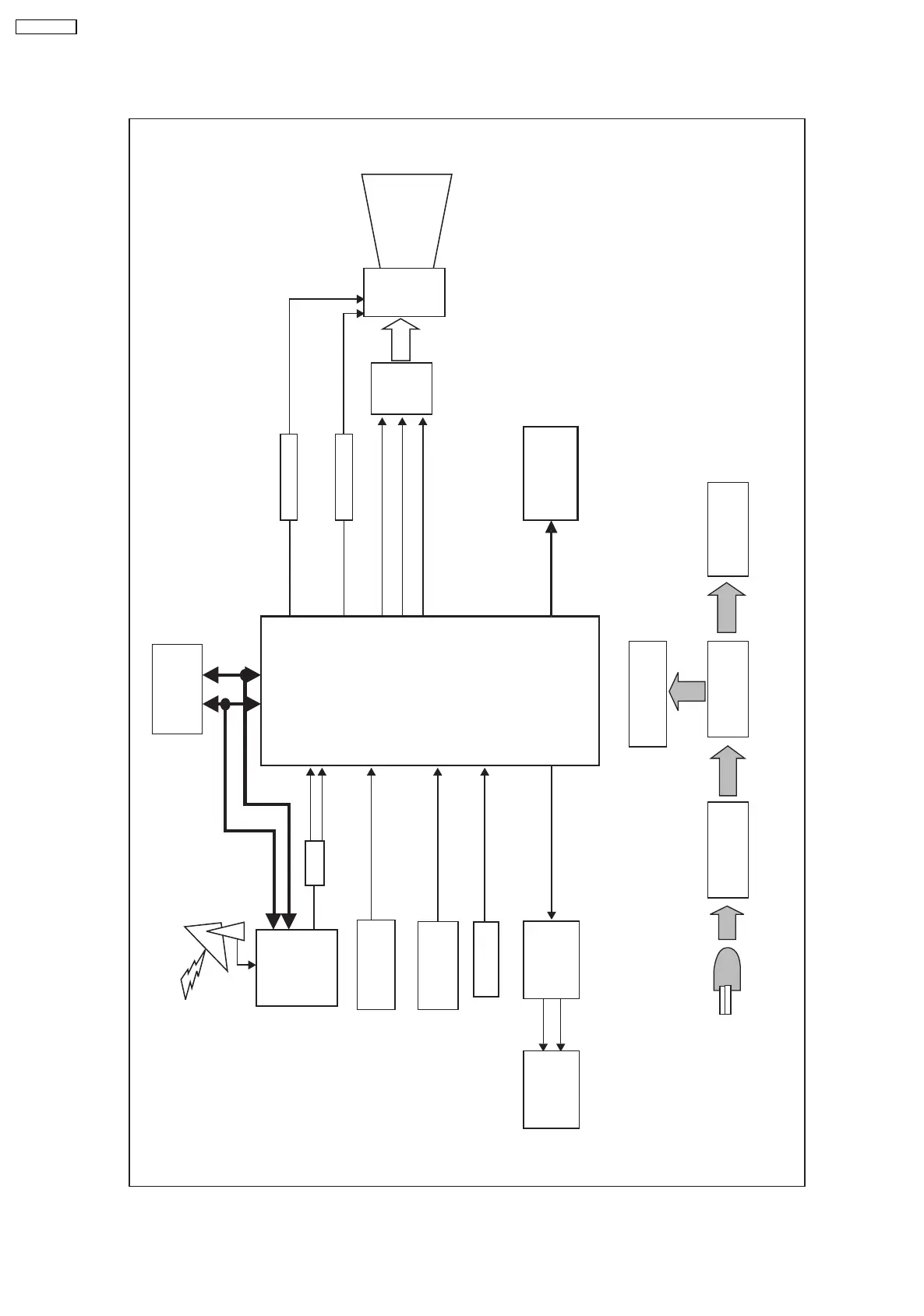

GL1 BLOCK DIAGRAM
Antenna
TUNER
SAW
Rear Inputs
AV 1 : V / L / R
Front Inputs
AV 2 : V/L/R
YUV
YUV
CVBS4
CVBS2
IF
V H
V OUT
H OUT
R G B
R G B
CRT
defl. coil
MONITOR
OUT
SDA SCL
Audio Out
Mon Out
AUDIO
AMP
IC2302
IC601
UOC
EEPROM
IC1103
IC851
5V & 8V
IC801
T801
IC880
3.3V
PRIMARY
LIFE CCT
SPEAKER
4
TC-21GX30P
