8 Disassembly and Assembly Instructions

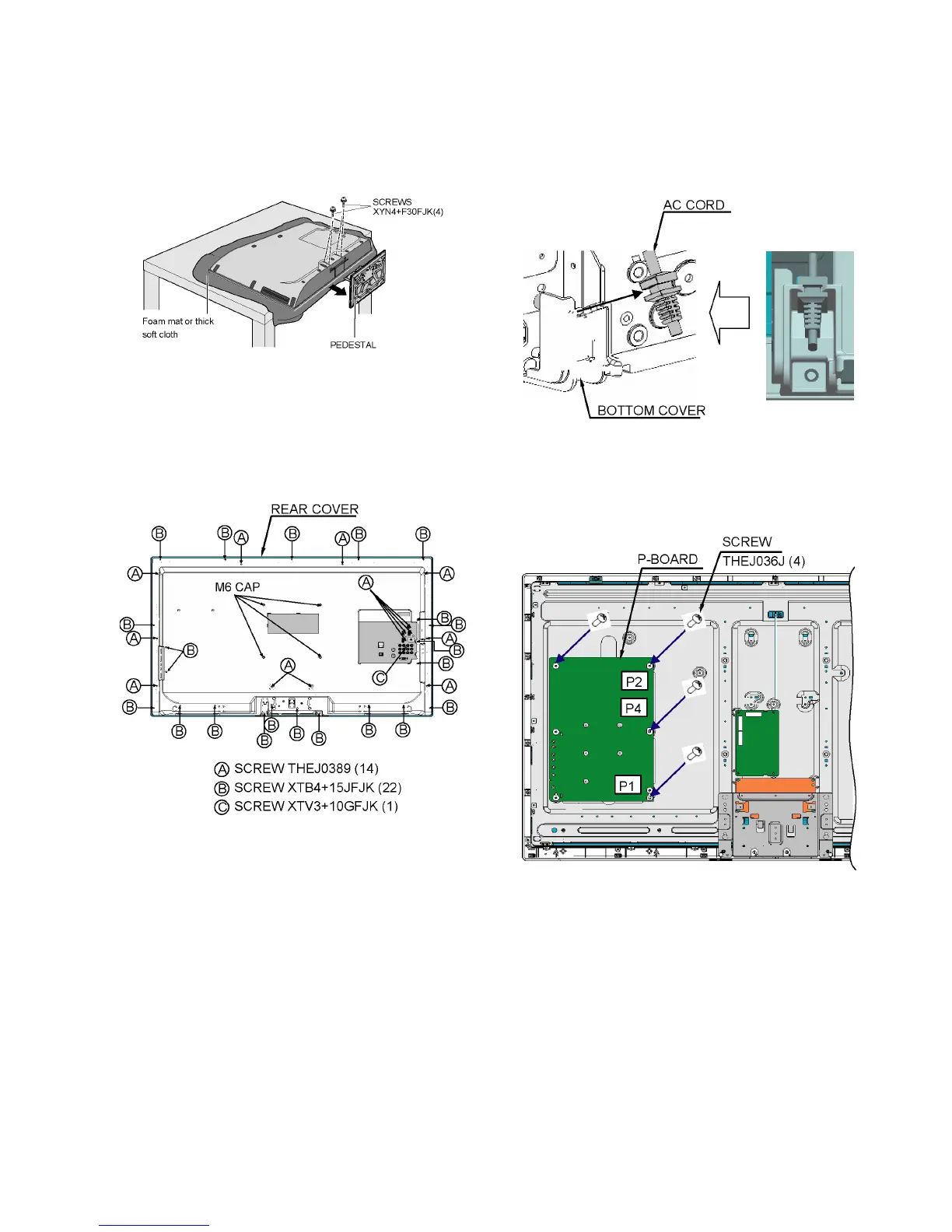

8.1. Pedestal
1. Lay down the unit so that the rear cover faces upward.
2. Remove the 4 screws.
3. Remove the pedestal.
8.2. Rear cover
1. Remove the 14 screws (A).
2. Remove the 22 screws (B).
3. Remove the 1 screw (C).
4. Remove the 4 M6 CAPs.
5. Remove the rear cover.
8.3. AC cord
1. Remove the bushing of the AC cord from the Bottom
cover.
2. Disconnect the connector (P1) of AC cord.
8.4. P-Board
1. Remove the 4 screws.
2. Disconnect the connectors (P1, P2 and P4).
3. Remove the P-Board.
