Panasonic TC-L42E30 - Speaker Unit; Bottom Cover; Metal Bracket A-Board; Metal Bracket Top

19

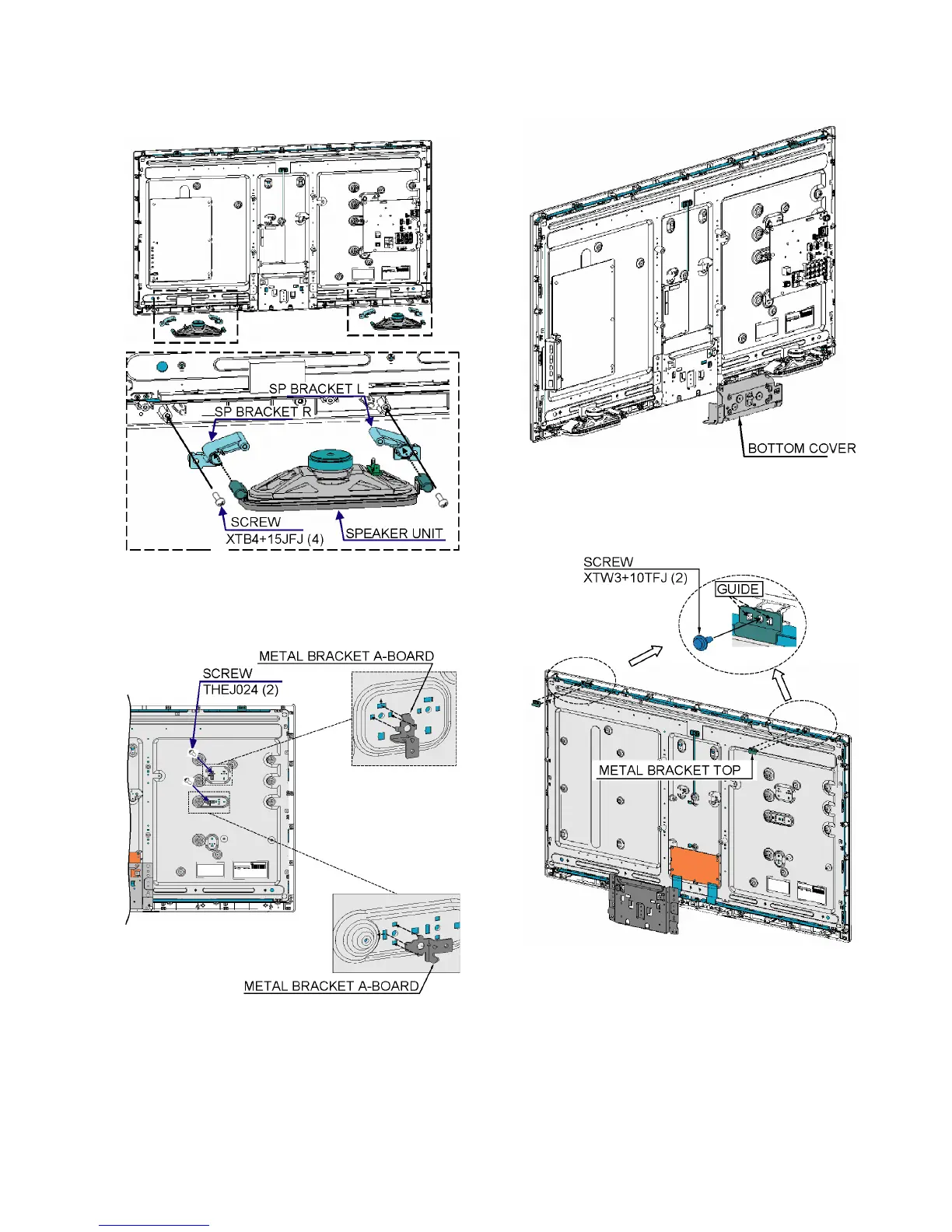

8.9. Speaker unit
1. Remove the 4 screws.
2. Remove the speaker unit.
8.10. Metal bracket A-Board
1. Remove the 2 screws.
2. Remove the Metal bracket A-Board.
8.11. Bottom cover
1. Remove the bottom cover.
8.12. Metal bracket top
1. Remove the 2 screws.
2. Remove the Metal bracket top.
