Panasonic TC-L42E30 - LCD Panel

20

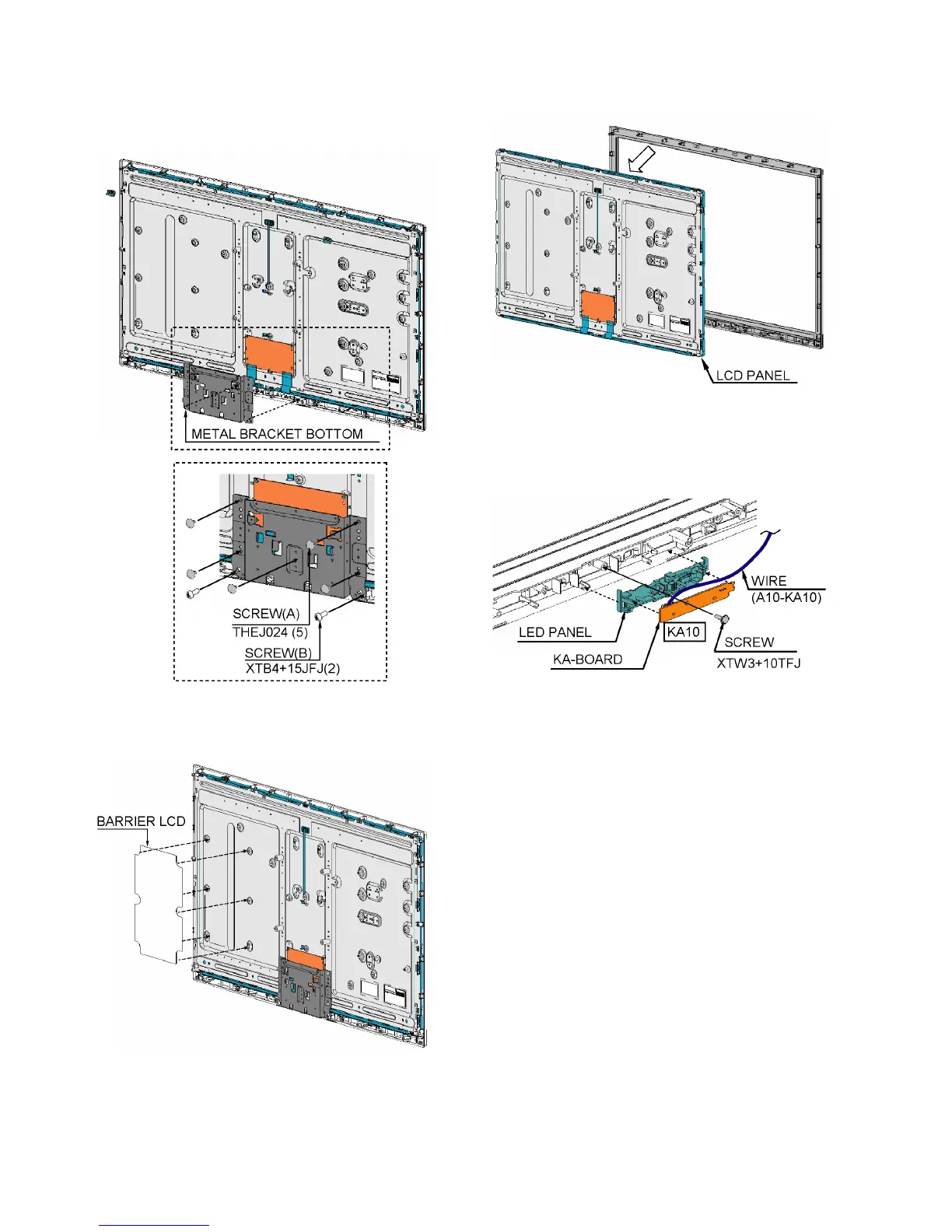

8.13. Metal bracket bottom
1. Remove the 5 screws (A).
2. Remove the 2 screws (B).
3. Remove the Metal bracket bottom.
8.14. Barrier LCD
1. Remove the barrier LCD.
8.15. LCD Panel
1. Remove the LCD panel.
8.16. KA-Board
1. Remove the 1 screw.
2. Disconnect the connector (KA10).
3. Remove the KA-Board.
