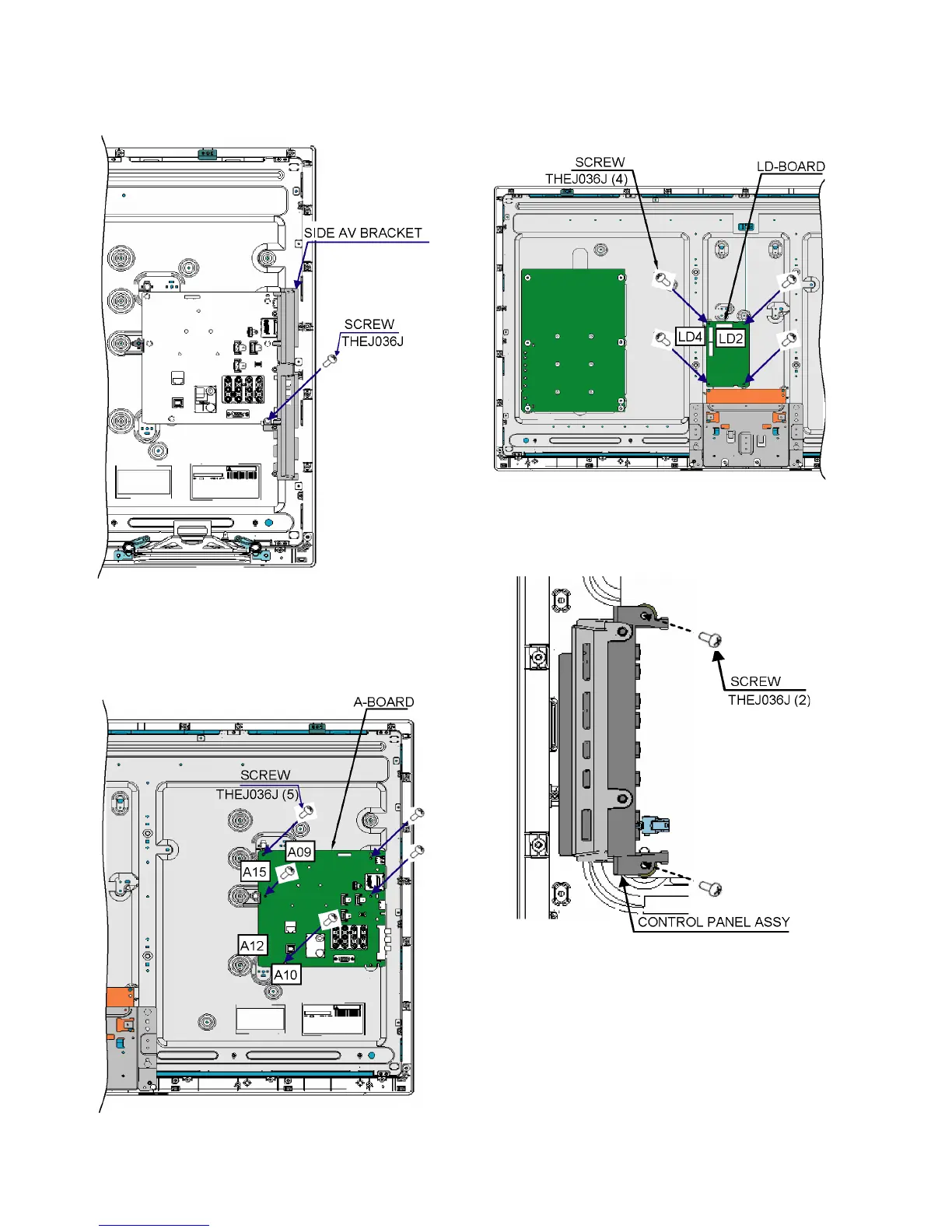

8.5. Side AV bracket
1. Remove the 1 screw.
2. Remove the side AV bracket.
8.6. A-Board
1. Remove the 5 screws.
2. Disconnect the connector (A09, A10, A12 and A15).
3. Remove the A-Board.
8.7. LD-Board
1. Remove the 4 screws.
2. Disconnect the connector (LD2 and LD4).
3. Remove the LD-Board.
8.8. Control panel assy
1. Remove the 2 screws.
2. Remove the control panel assy.
