Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #16

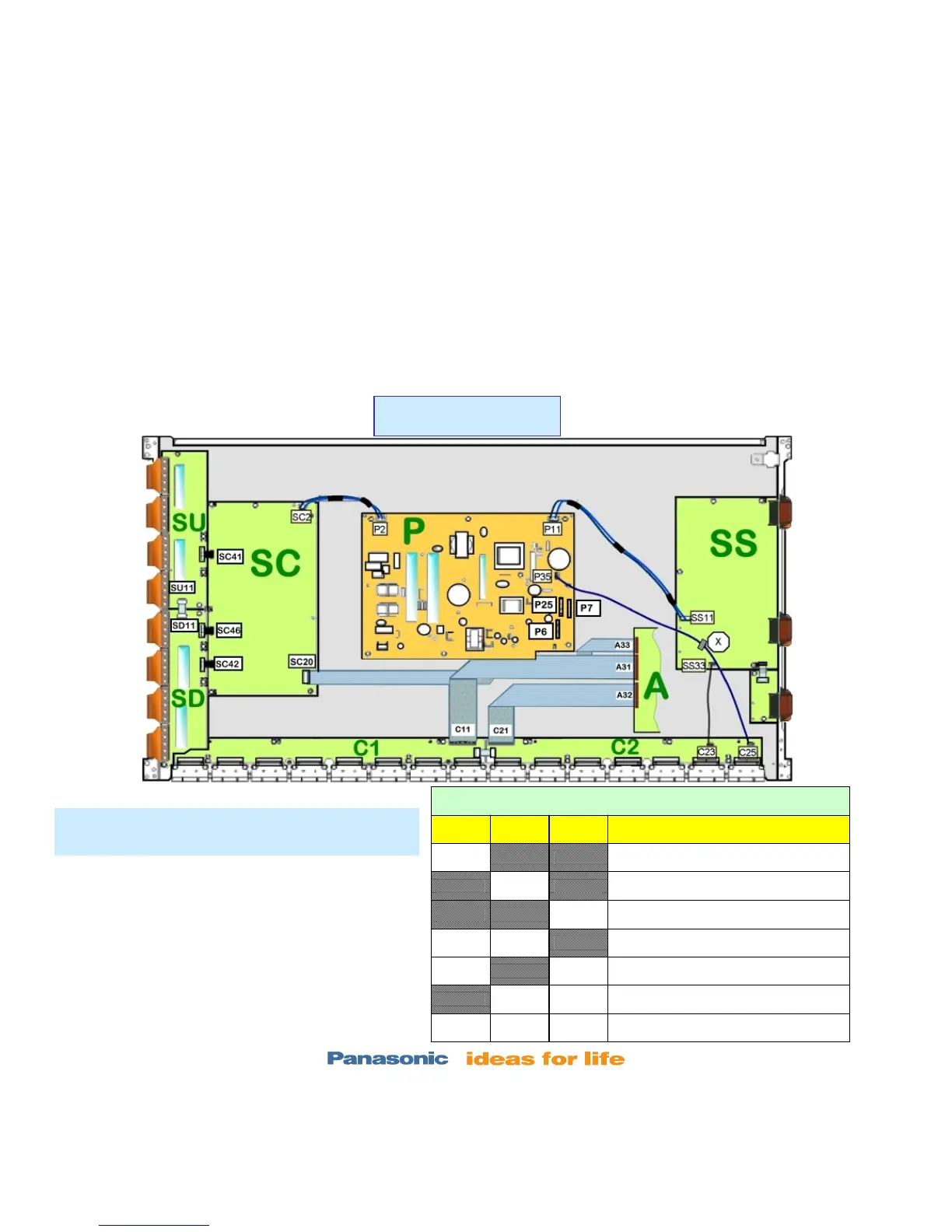

Power LED’s Response to Connectors Removal (Full HD Models)
Model: TC-P42S1
Connector Connector Connector Results
A33
Unplugged
SOS 6 Blinks
A31
Unplugged
Left Half of Screen is OK (Right Side is
Black)
A32
Unplugged
SOS 6 Blinks
A33
Unplugged
A31
Unplugged
SOS 6 Blinks *
A33
Unplugged
A32
Unplugged
OK
A31
Unplugged
A32
Unplugged
SOS 6 Blinks
A33
Unplugged
A31
Unplugged
A32
Unplugged
TV Stays On With Black Screen
Full HD Models
CAUTION: Some steps require
removal of connectors and sometimes
PC boards removal. Do not let the TV
run for more than 30 seconds while
connectors or boards are
disconnected.
Do not remove any connectors from any of
the PC boards unless instructed to do so.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
