Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #62
12 Blinks Error Code Flowchart

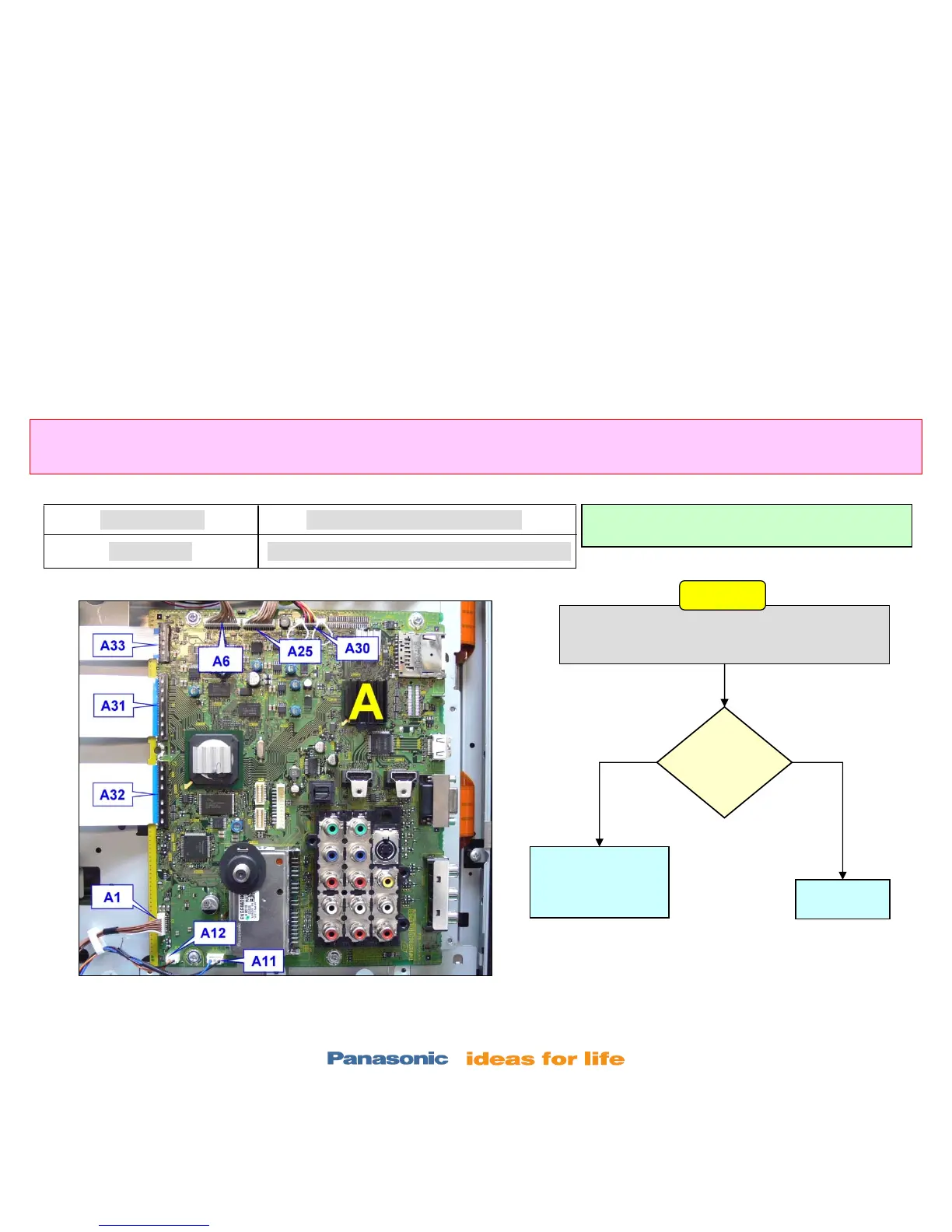

Unplug the TV and disconnect connectors A11 and
A12 from the A board (See picture on the left). Plug
in the TV and press the power switch
Does the
TV power
up and
stay on?
No
Yes
If the speakers wires
are not pinched,
Replace
the speaker
Replace
the A board
Trouble Mode
Audio SOS
Defective Board (Possibility)
A Board, Pinched speaker wire, Speaker
Warning: Disconnect AC Power prior to making any
disconnection or connection
Start Here
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
