Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #9

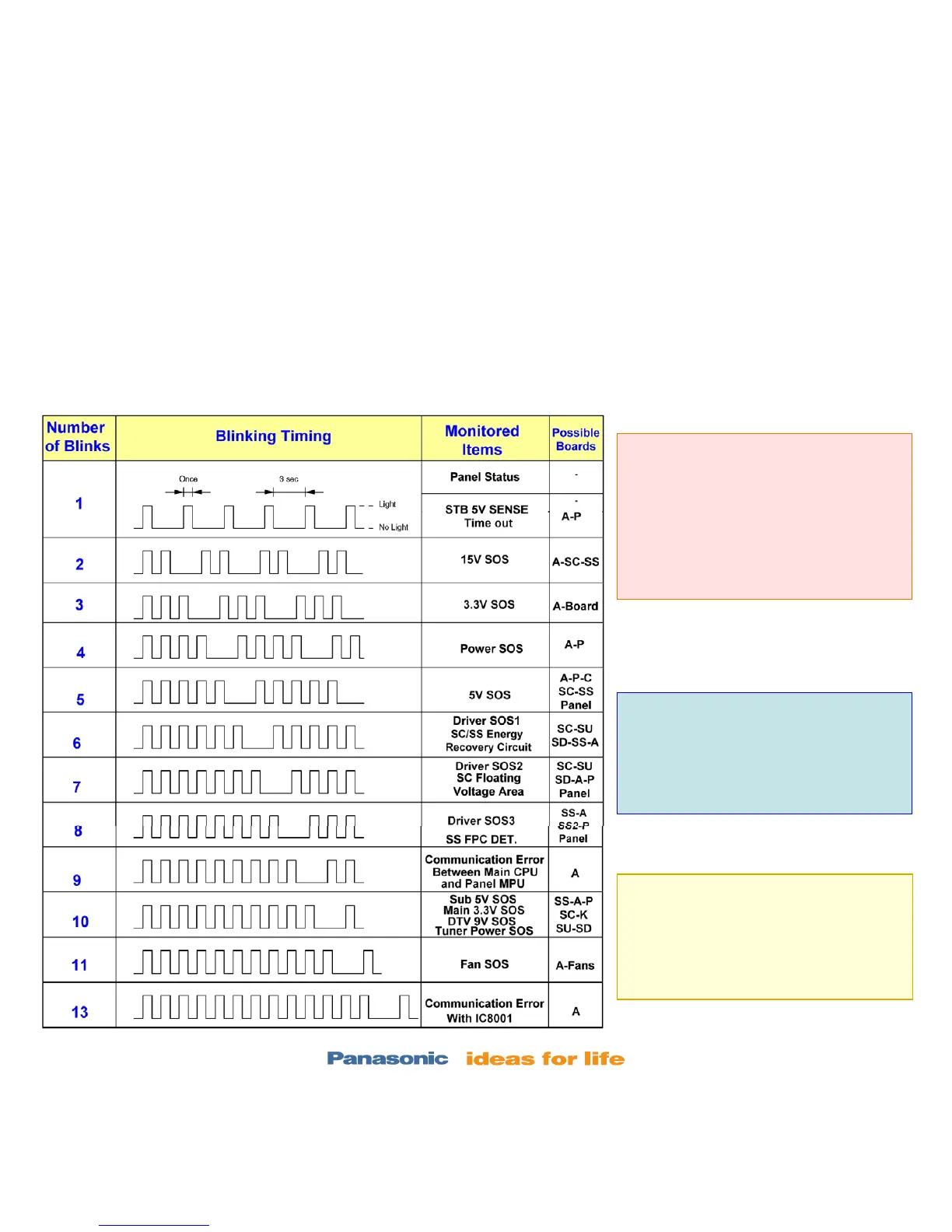

Power LED’s Response to Shutdown Operation
When an abnormality occurs in
the TV, the “SOS Detect” circuit
is triggered and the TV shuts
down. The power LED on the
front panel will flash a pattern
indicating the circuit that has
failed.
If the power LED continues to
blink even after the TV is
unplugged, press and hold the
power switch on the TV for a few
seconds until the LED turns off.
CAUTION: Some steps require
removal of connectors and sometimes
PC boards removal. Do not let the TV
run for more than 30 seconds while
connectors or boards are
disconnected.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
