Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #42

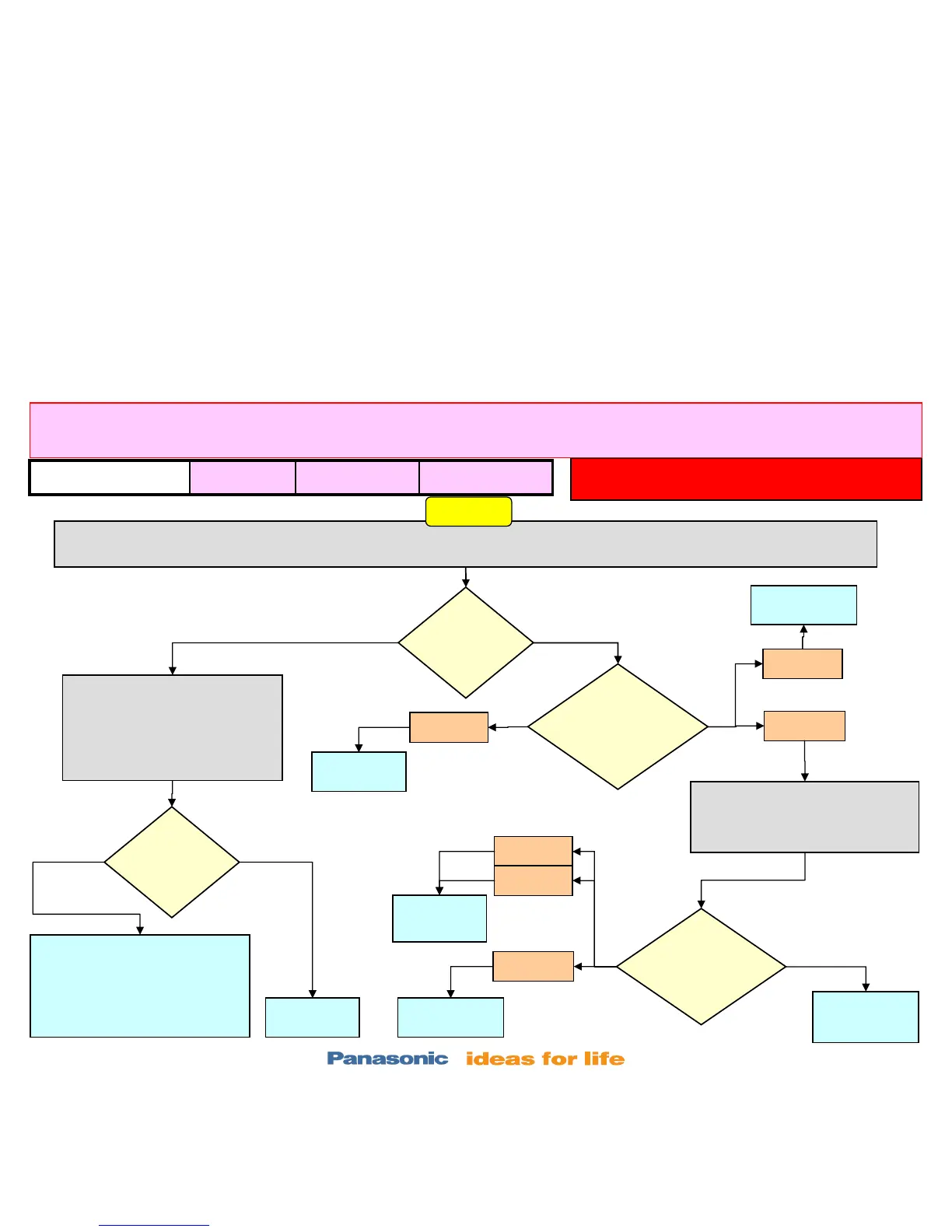

6 Blinks Error Code (42” HD Models) Flowchart
No
Yes
Verify that all the cables plugged in to the SC and SS boards are properly seated. Also check the ribbon cables and connectors on the A
and C boards. Unplug the TV and disconnect connector SC20 on the SC board. Plug in the TV and turn it on
Does the
TV power
up and
stay on?
Replace
the SC board
Unplug the TV and reconnect
connectors SC20. (Follow the
SU/SD boards isolation procedure
shown on slides 17~19). Plug in
the TV and press the power
switch
Does the
TV power
up and
stay on?
NoYes
The SU or/and the SD Boards
can be defective. Follow
procedure on slides 17~21 to
determine which of the 2 boards
is defective.
No
Yes
Did the
number of
blinks
change?
Replace
the A board
No
Yes
Is the power
LED still
blinking?
Unplug the TV and with SC20 still
disconnected, disconnect SS11 on
the SS board. Plug in the TV and
turn it on.
Replace
the A board
Replace
the SS and
A boards
6 times
8 times
Replace
the SS and SC
boards
LIST OF MODELS: TC-P42X1 TC-P42C1 TC-42PX14
Start Here
CAUTION: The TV power should not be turned on while
SC2 is disconnected. This could damage the SS board.
10 times
8 times
Replace
the SS board
6 times
10 times
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
