Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #61

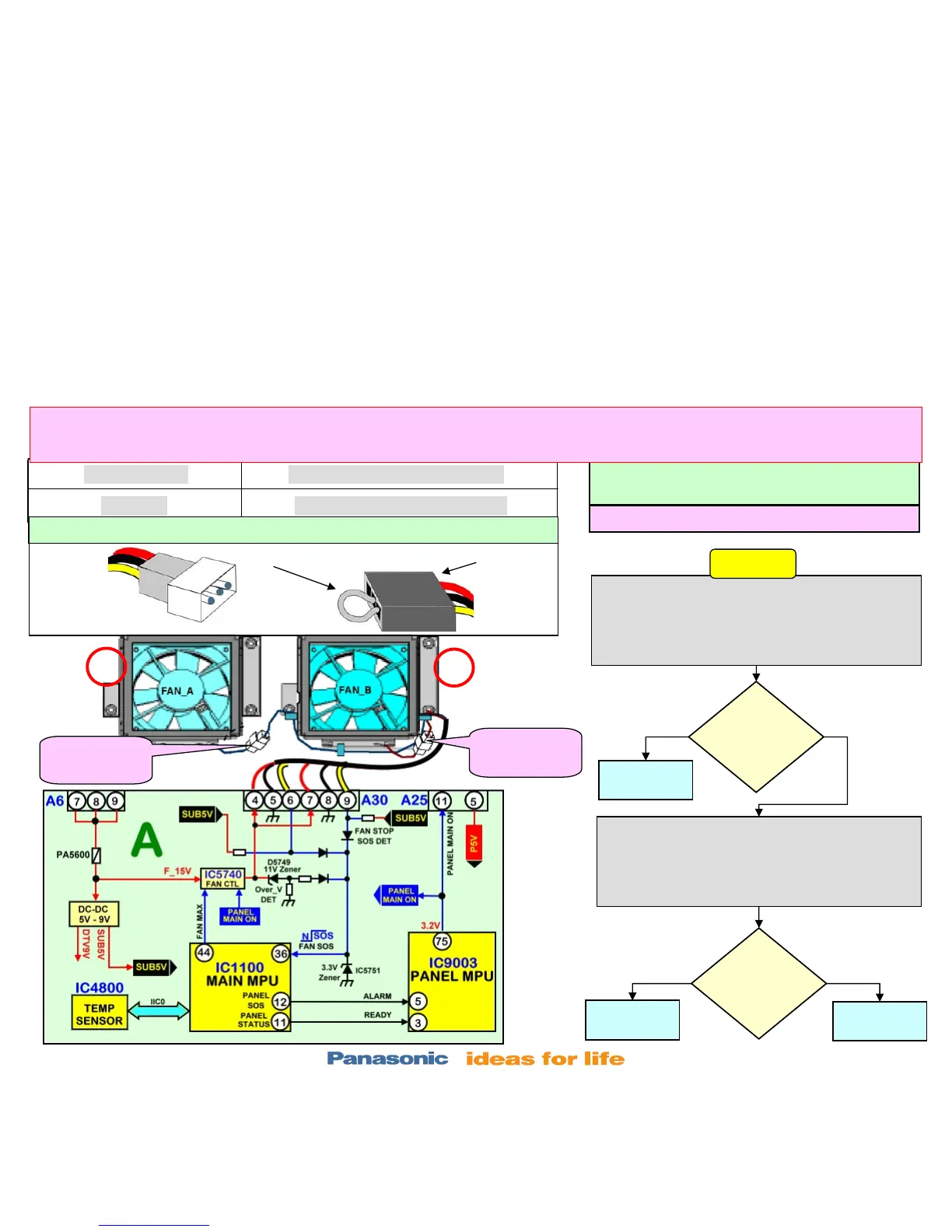

11 Blinks Error Code (Full-HD Models Only)
Trouble Mode
Fan SOS
Defective Board (Possibility)
Fans, A Board, Connections
NOTE A: Use a piece of wire, the size of a ¼ watt resistor’s leads as a jumper.
Fan
Connector
Fan
Connector
Unplug the TV and disconnect the connector from
Fan A. Place a jumper wire (NOTE “A”) between the
center pin (Black wire) and the pin with the yellow
wire on the black plug. Plug in the TV and press the
power switch
A
B
Does the
TV power
up and
stay on?
No
Yes
Replace
Fan A
Unplug the TV and reconnect Fan. Disconnect the
connector from Fan B. Place a jumper wire (NOTE
“A”) between the center pin (Black wire) and the pin
with the yellow wire on the black plug. Plug in the
TV and press the power switch
Does the
TV power
up and
stay on?
No
Yes
Replace
Fan B
Replace
The A board
JUMPER WIRE
FAN CONNECTOR
BLACK PLUG
Warning: Disconnect AC Power prior to making any
disconnection or connection
Make sure that connector A30 is properly seated
Start Here
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
