Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #19
Procedure to Isolate both SU & SD at the Same Time
To isolate the SU and SD boards at the same time is not necessary to remove any
of the boards:
• Remove the 4 VF_GND screws (2 on the SU board and 2 on the SD board).

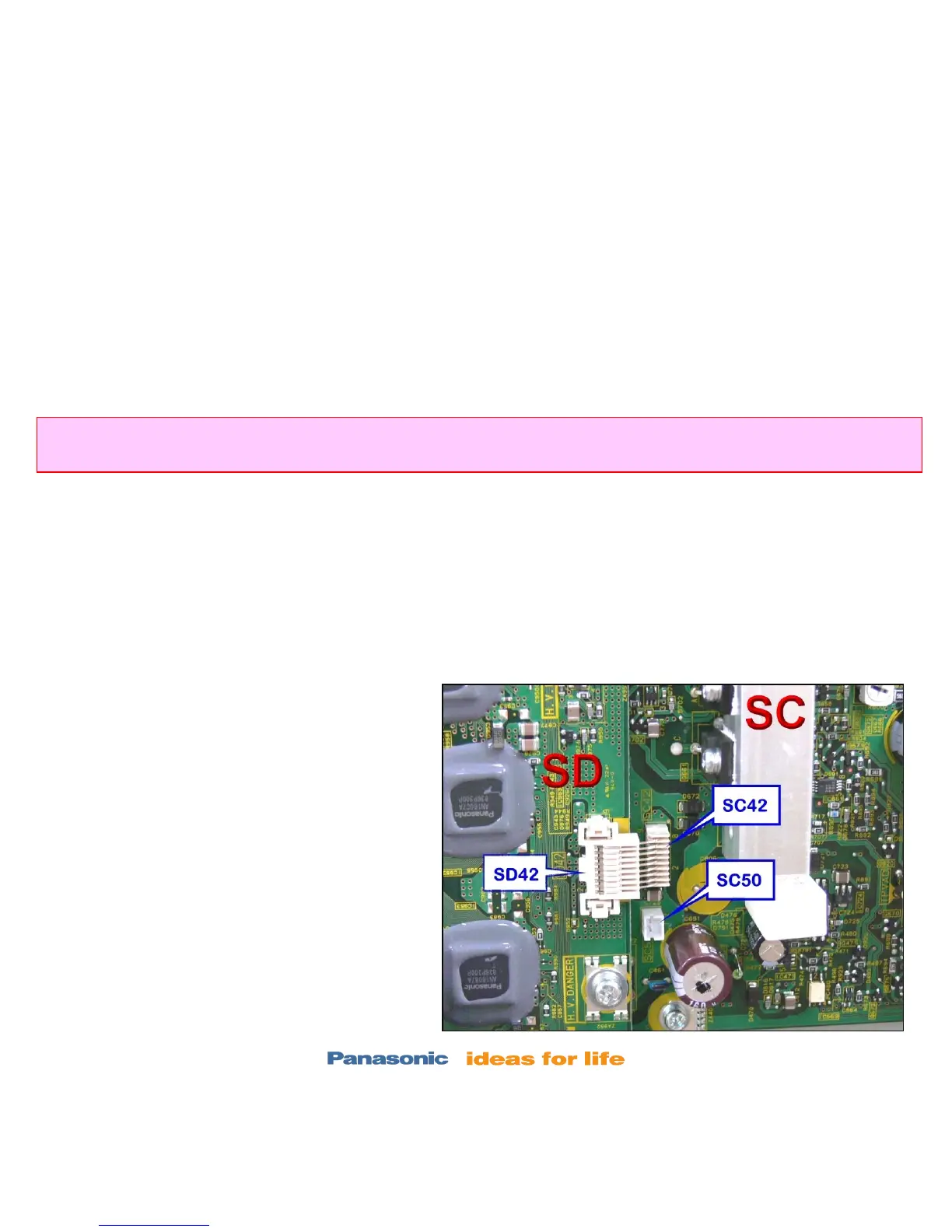

• Unplug connectors SC41, SC46, and SC42 on the SC board.
• Place the SC jig cable (TZSC09187) between pins 1 and 2 of connector SC50 on
• the SC board.
Note: If the SC jig is not available,
install a jumper between pins 1 and 2
of connector SC50 on the SC board.
(Remove the jig or the jumper after
completing isolation procedure).
When this is done, the display is
completely black (No picture)
Note: This procedure could be useful
when troubleshooting 7 blinks
problems.
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
