Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #38

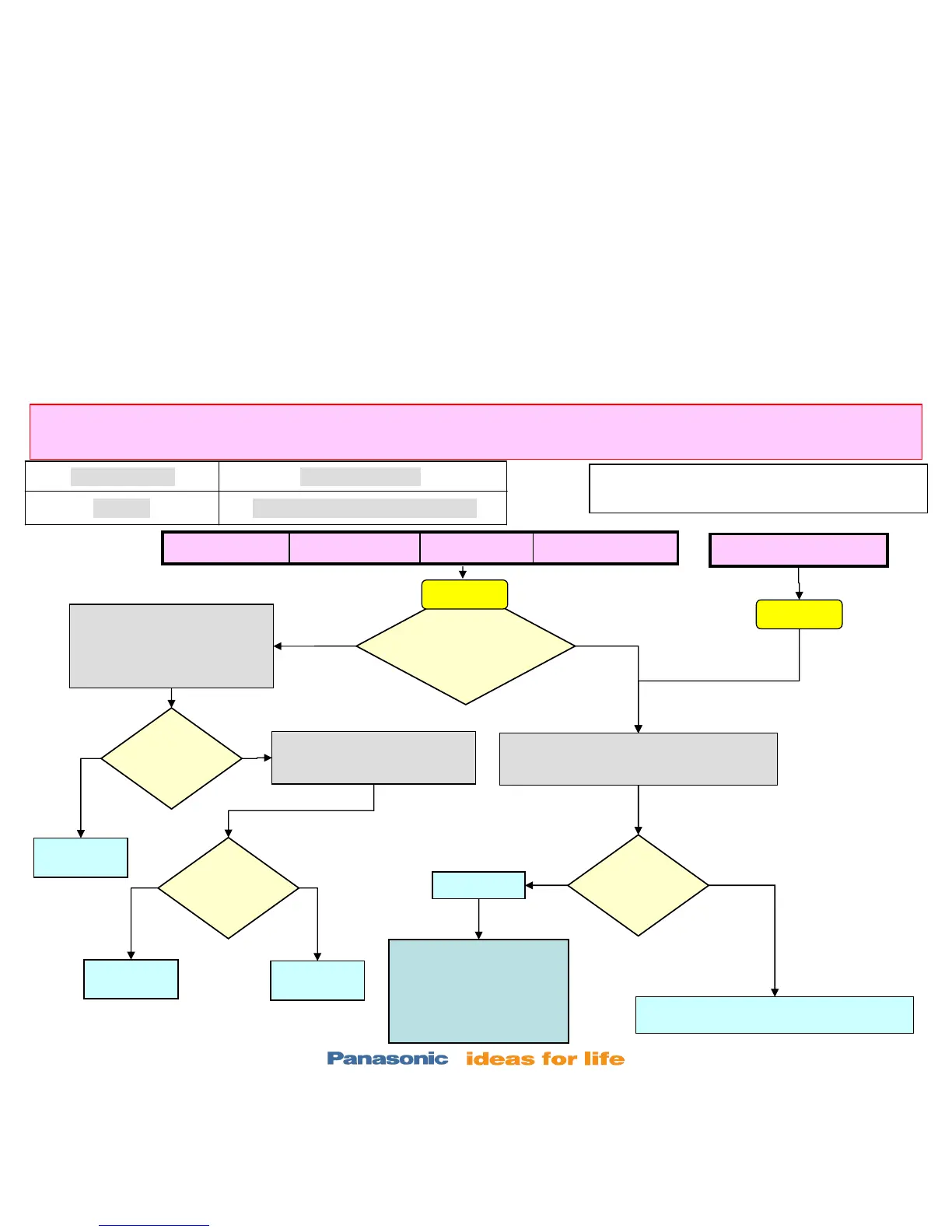

5 Blinks Error Code (All Models)
Trouble Mode
5V SOS
Defective Board
P, C, A,SC, SS board or Panel
Disconnect the TV. Measure the resistance
between pin 1 of connector P35 on the P
board and ground (Chassis).
Yes
Proceed to more extensive troubleshooting
of the slides that follow.
No
Is there a
short to
ground?
Panel
Note: Even though it
does not happen often,
the 5 blinks shutdown
can also be caused by
one of the C boards
Warning: Disconnect AC Power prior to
making any disconnection or connection.
Does the power
supply
makes a “chirp”
noise at plug in?
Start Here
Yes
No
Yes
No
Is there a
short to
ground?
Replace
the SS board
Replace
the SC board
Disconnect the TV. Disconnect
P2 and P11 on the P board
Measure the resistance between
pin 1 of connector SS11 on the
SS board and ground (Chassis).
Yes
No
Is there a
short to
ground?
All other 2009 Models
TC-P42G10 TC-P46G10 TC-50G10 TC-P54G10
Measure the resistance between
pin 1 of connector SC2 on the SC
board and ground (Chassis).
Replace
the P board
Start Here
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
