Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #57
10 Blinks Error Code (HD Models)
Trouble Mode
F-STB15V, SUB9V, SUB5V, BT30V
Defective Board
A, P, Loose connections
Warning: Disconnect AC Power prior to
making any disconnection or connection.
Make sure that connectors P6/A6 is properly seated
IMPORTANT: Unlike previous
generations, there’s no 10 blinks error
code at plug-in for 2009 models.
When the A board is replaced, the TV
turns on in aging mode by itself at
plug in.

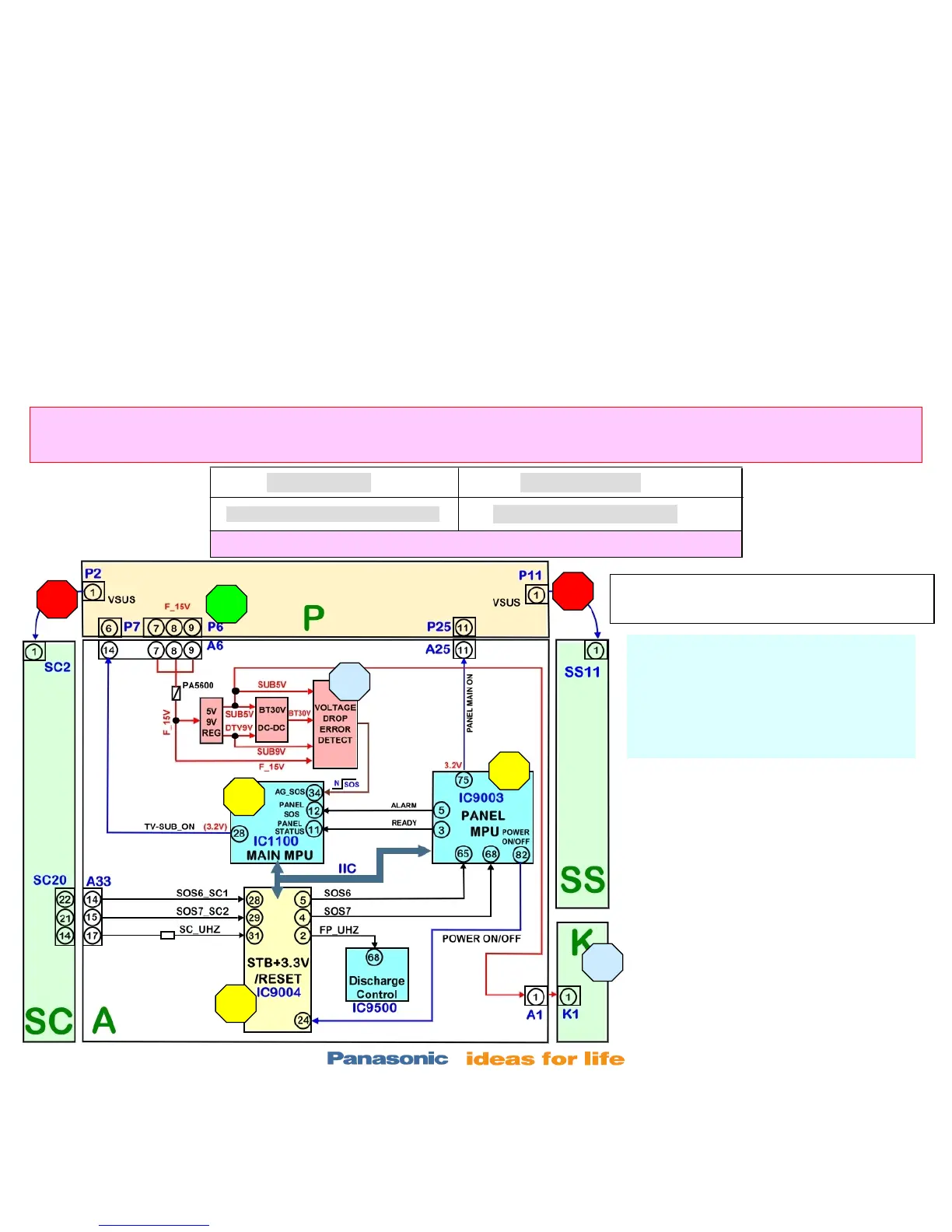

What can possibly cause 10
blinks
A. Missing/Shorted F_15V
B. Shorted Vsus
C. Missing/Shorted SUB5V,
SUB9V, BT30V.
D. IC1100, IC9003, IC9004
E. Possibly SU and SD boards
A
B
B
C
D
D
D
C
If the power LED continues to blink even after the TV is unplugged, press and hold the power
switch on the TV for a few seconds until the LED turns off.
