Panasonic TC-P54S1 Revised Troubleshooting Handbook

Slide #70

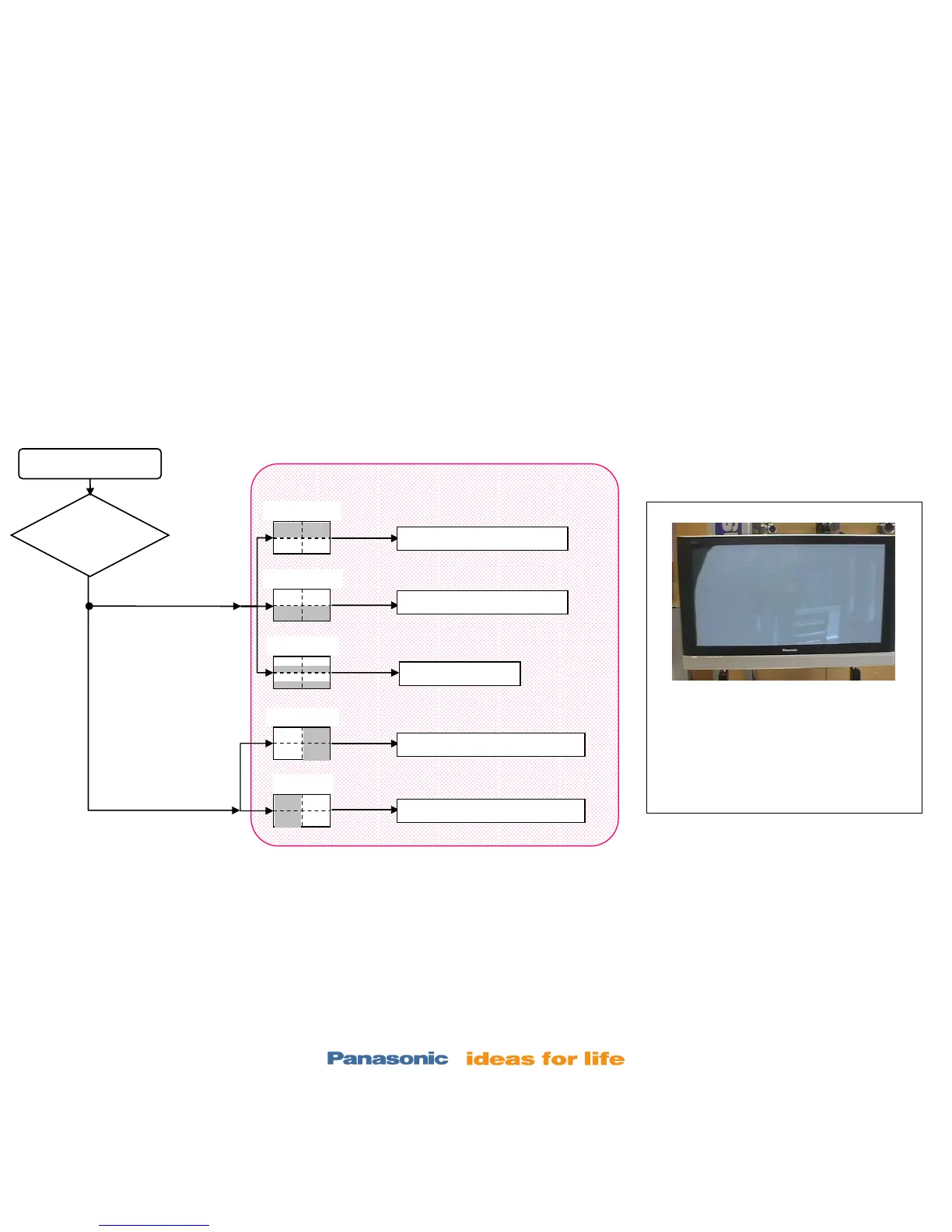

Picture Problem Troubleshooting
Where is
the symptom
displayed?
*Note :Panel gas leakage
Because of a very small crack in the
panel, gas leakage will start.
In this picture, gas leakage started at
the left top corner.
Finally, gas leakage will lead to the
symptom “No picture with buzz
noise”.
Start
Upper or Lower half
(from front view)
Upper half
Lower half
Both area
SU Board (or A, or SC)
SD Board (or A, or SC)
SC Board (or A)
Right half
Left half
Left or Right half
(from front view)
A Board (or C1, or Panel)
A Board (or C2, or Panel)
Some part of the screen

Panasonic TC-P54S1 Specifications

General

Safety	UL6500/C-UL
Comb filter	3D
Pixel pitch	0.624 x 0.624 mm
Aspect ratio	16:9
Power supply	599 W
Product color	Black
Audio (L/R) in	2
Package weight	48000 g
Product weight	83.8 lbs
Noise reduction	Yes
RMS rated power	20 W
Display diagonal	54 \
Display language	English/Spanish/French
Set depth (inch)	4.2 \
Set width (inch)	51.7 \
Set height (inch)	32.8 \
Composite video in	1
Display technology	Plasma
Power requirements	AC 120 V, 60Hz
HDMI ports quantity	3
Remote control type	IR
Box depth (imperial)	13.1 \
Box width (imperial)	57.6 \
Box height (imperial)	37 \
Supported video modes	1080i, 1080p, 480p, 720p
Compatible memory cards	SDHC
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	-
Package weight (imperial)	105.8 lbs
Power consumption (sleep)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Set depth (with stand) (inch)	15.3 \
Set height (with stand) (inch)	34.8 \
