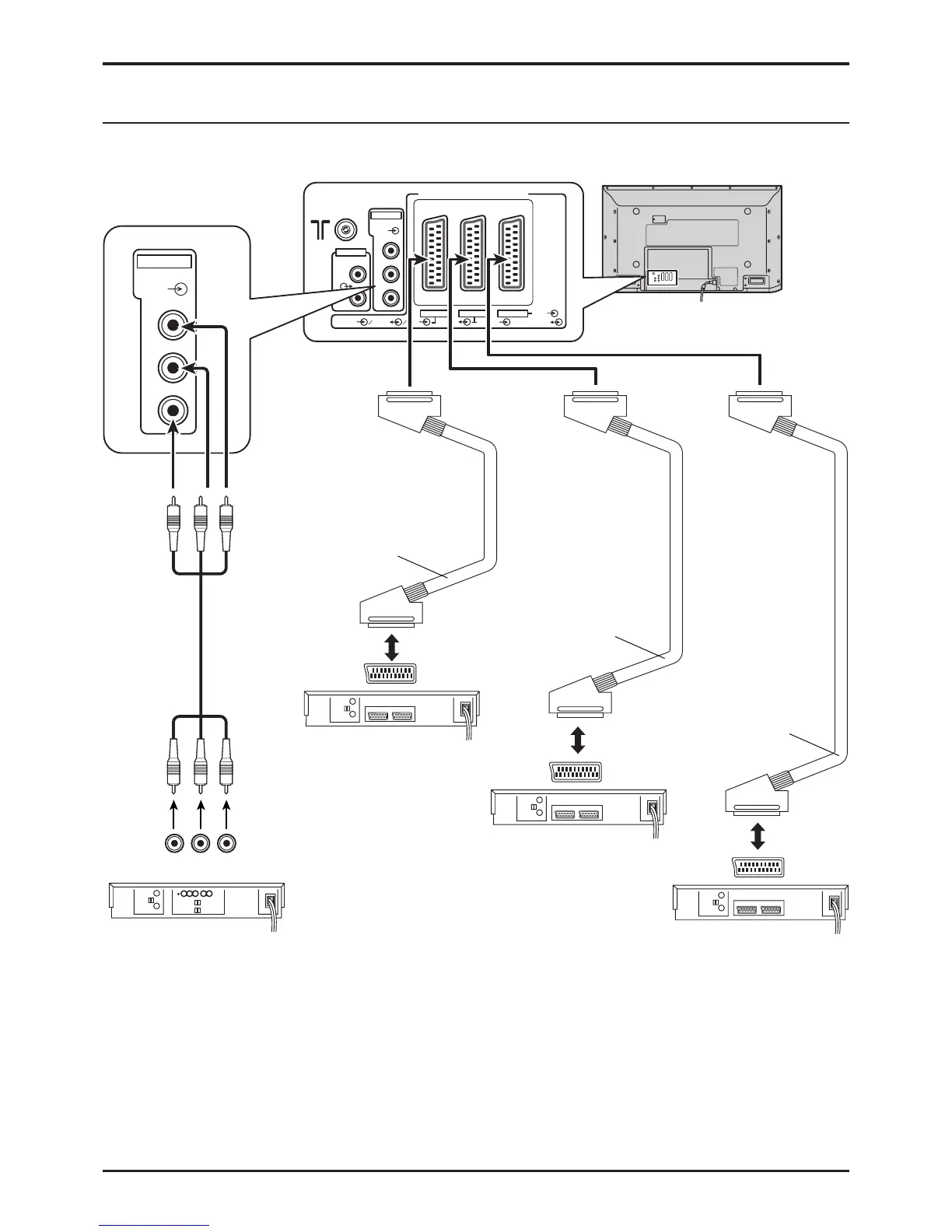

How to connect the Input/Output terminals
Connects VCRs and other peripheral equipment
Input/Output from
AV4 Scart Socket
Q-Link data
Input/Output from
AV2 Scart Socket
Q-Link data
Input/Output from
AV1 Scart Socket
VCR
DVD PLAYER
DVD RECORDER
Scart cable
VCR/S-VHS VCR
Q-LINK COMPATIBLE VCR
DVD PLAYER
DVD RECORDER
VCR/S-VHS VCR
Q-LINK COMPATIBLE VCR
DVD PLAYER
DVD RECORDER
Scart cable
Scart cable
R
RGB
VIDEO
S VIDEO VIDEO S VIDEO
L
P R
P B
Y
AUDIO OUT
AV 4C
AV4 AV2 AV1
COMPONENT
VIDEO
VIDEO RGB
Input AV4
Component
signal pin
type
DVD PLAYER
Satellite Receiver
P R P B Y
PR
PB
Y
AV 4C
COMPONENT
VIDEO
Notes:
• Additional equipment and cables shown are not supplied with this set.
• Do not connect a computer with TTL output (5V) to this set.
• The AV2, AV4 21 pin socket can also be used as an output to Audio/Video equipment. (see page 9)
• Select the desired VIDEO input position by pushing the TV/AV button. (see page 14, 15)
• For Scart socket wiring information see page 48.
