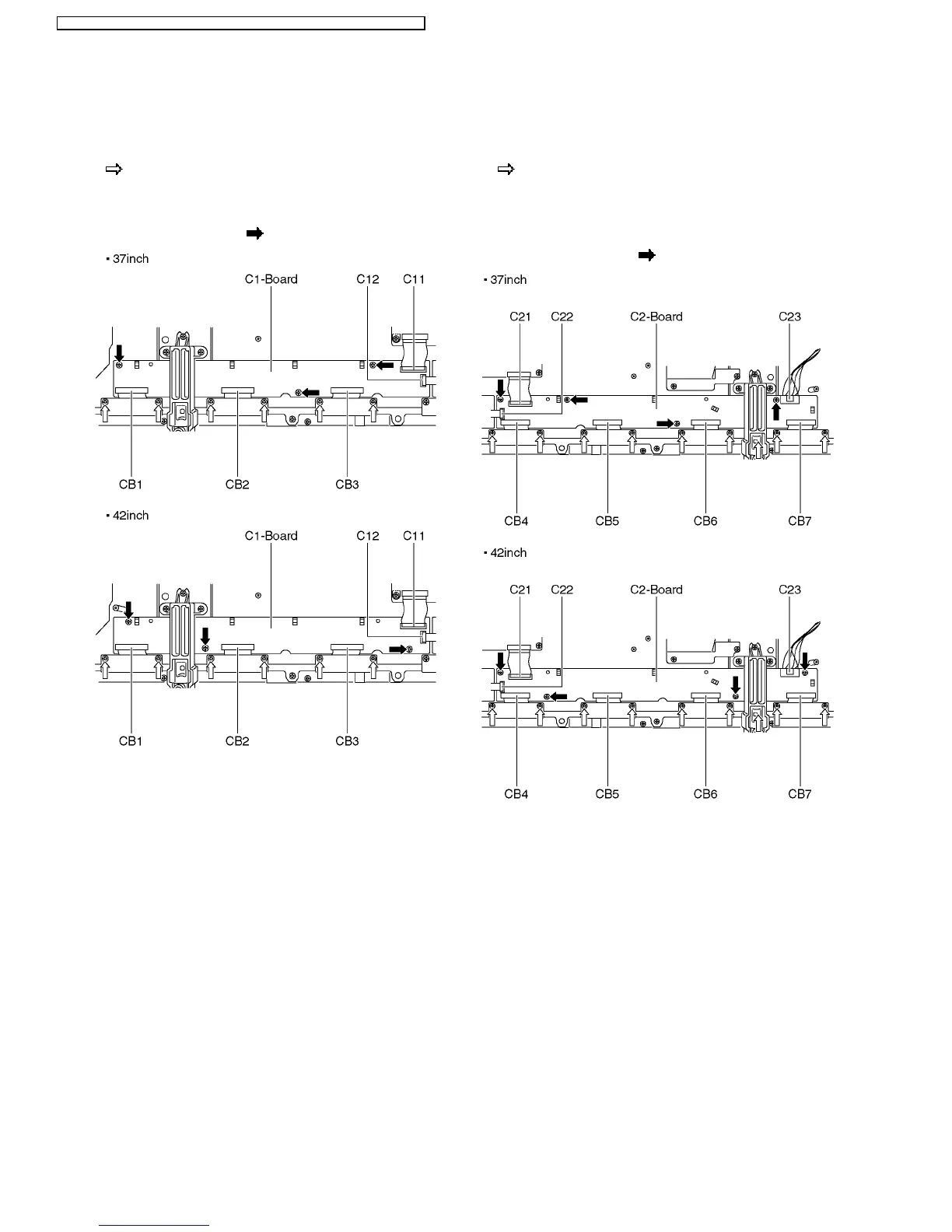

6.15. Remove the C1-Board
1. Remove the tuner unit. (See section 6.5.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×6
).
4. Disconnect the flexible cables (CB1, CB2 and CB3).
5. Disconnect the flexible cables (C11 and C12).
6. Remove the screws (×3
) and remove the C1-Board.
6.16. Remove the C2-Board
1. Remove the tuner unit. (See section 6.5.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×8
).
4. Disconnect the flexible cables (CB4, CB5, CB6 and CB7).
5. Disconnect the flexible cables (C21 and C22).
6. Disconnect the coupler (C23).
7. Remove the screws (×4
) and remove the C2-Board.
