8.2.2 Adjustments
TOP PREVIOUS NEXT

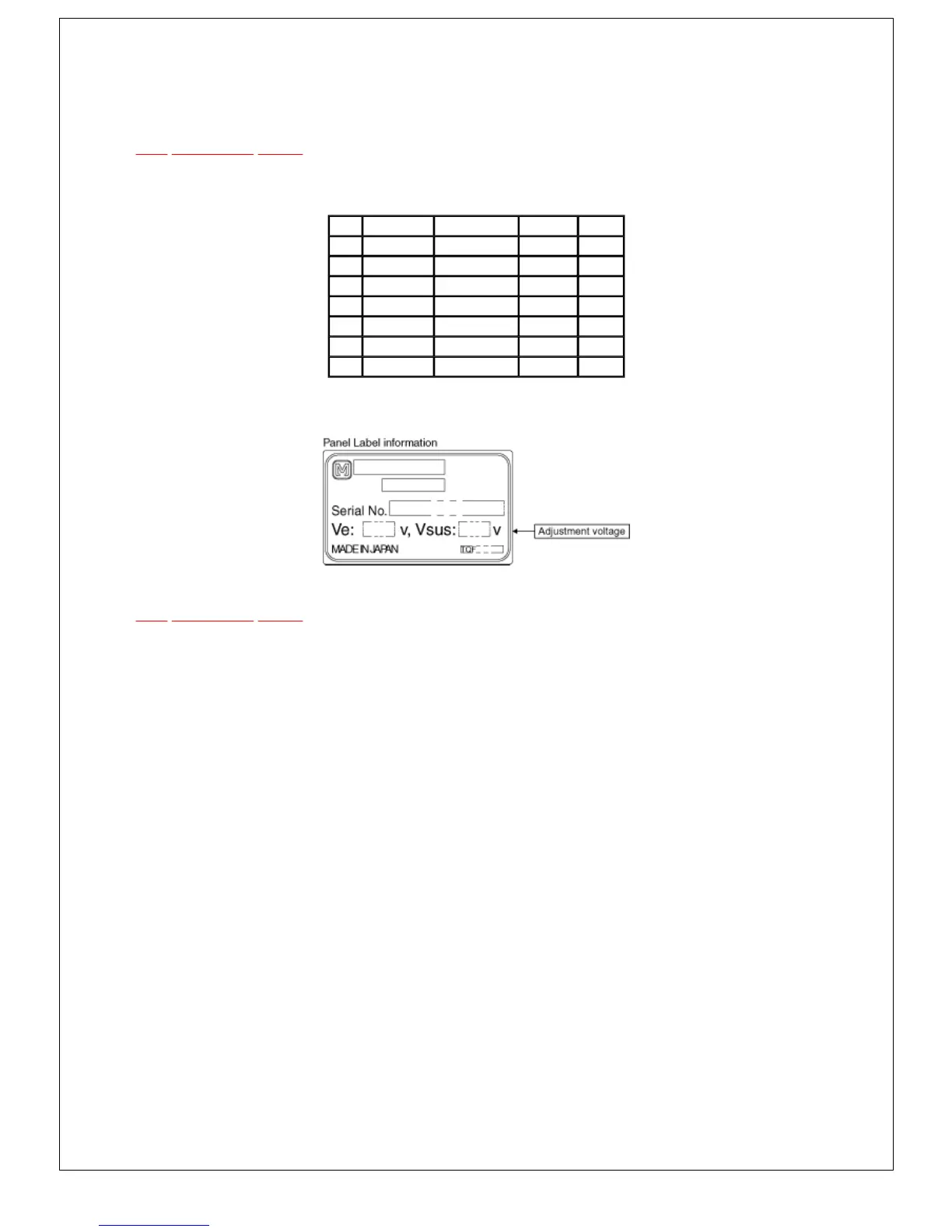

Adjust driver section voltages referring the panel data on the panel data label.
*See the Panel label.
TOP PREVIOUS NEXT
Name
Test Point Voltage Volume Remarks
Vsus
TPVSUS (SS)
170V ± 1V R605 (P)
Vbk TPVBK (SC) 155V ± 5V R6443 (SC)
Ve TPVE (SS) 158V ± 1V R6774 (SS)
Vset TPVSET (SC) 218V ± 6V ---
Vad TPVAD (SC) -90V ± 1V R6477 (SC)
Vscn TPVSCN (SC) Vad*+118V ± 2V ---
Vda TPVDA (SS) 67V ± 1V R590 (P)
