10 Wiring Connection Diagram
10.1. Wire Dressing

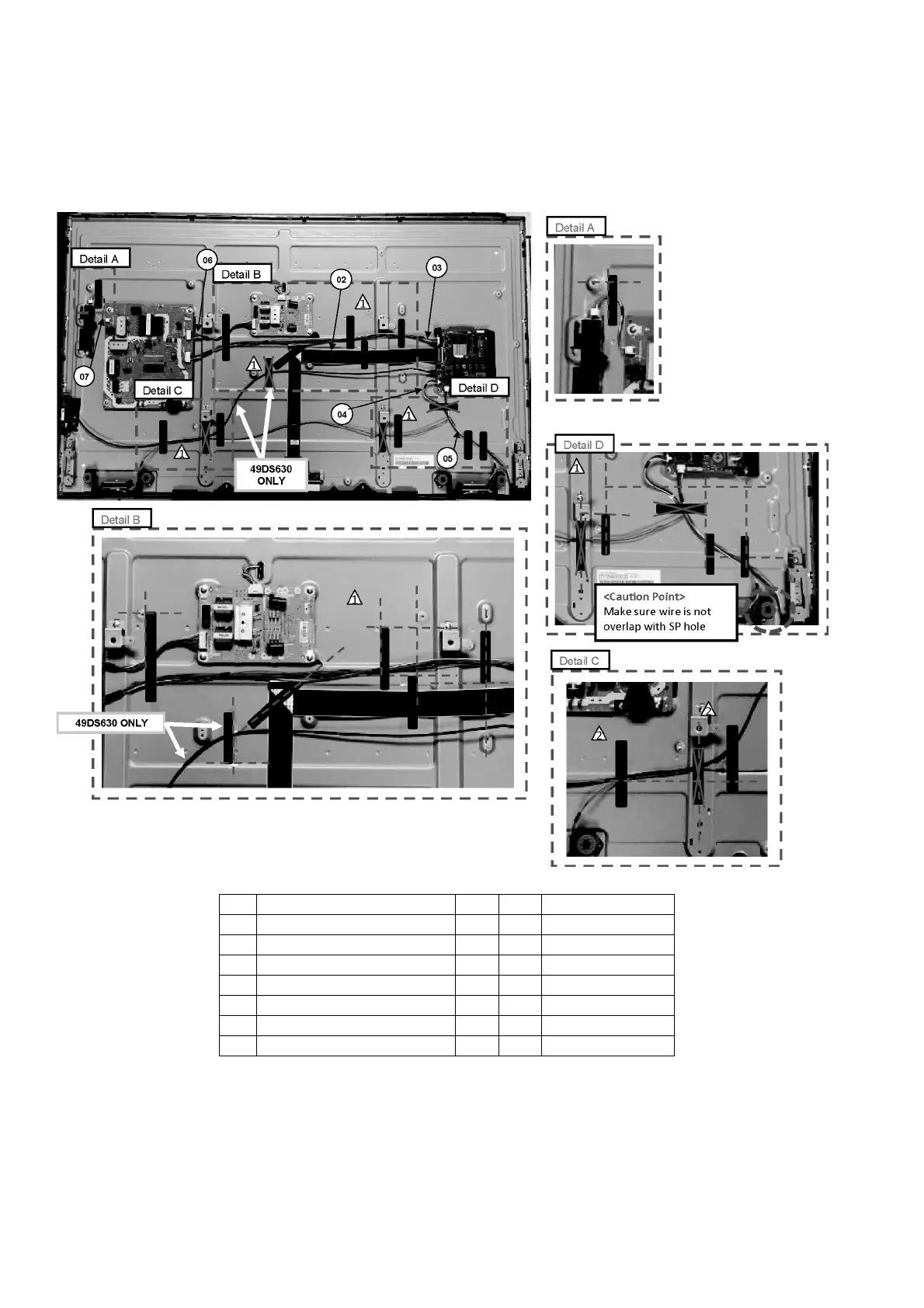

1. Do the wire dressing follow the diagram below.
2. Stick tapes.
No Description Qty UOM Remarks
01 PET TAPE (0.11*2, 0.06*8) 0.76 MT
02 LVDS FFC (51PIN) 1 PC
03 WIRE (A02-P2) 1 PC
04 WIRE (A12-SPL/SPR) 1 PC
05 WIRE (A10-K10) 1 PC
06 WIRE (P4-LDP1) 1 PC
07 WIRE (P5-GK4) 1 PC
