7 Disassembly and Assembly Instructions

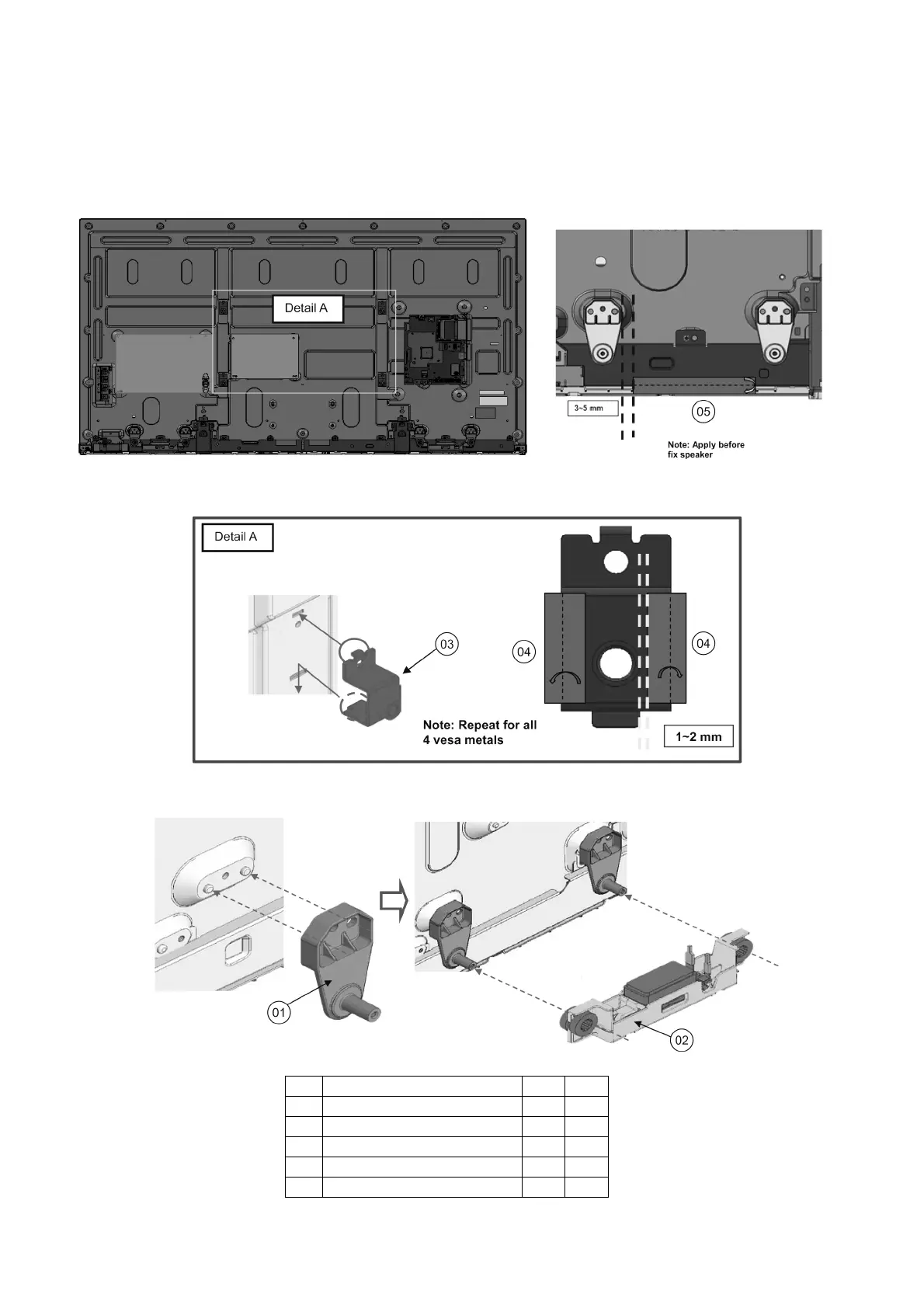

7.1. Fix Speaker Bracket
1. Insert P-Print and A-Print board at panel.
2. Fixing all screw at panel,bracket and metal part.
No Description Qty UOM
01 SP_BRACKET 4 PC
02 SPEAKER_L/R 2 PC
03 VESA_METAL_TOP 4 PC
04 FELT 8 PC
05 FELT 2 PC
