TH-50PF30U

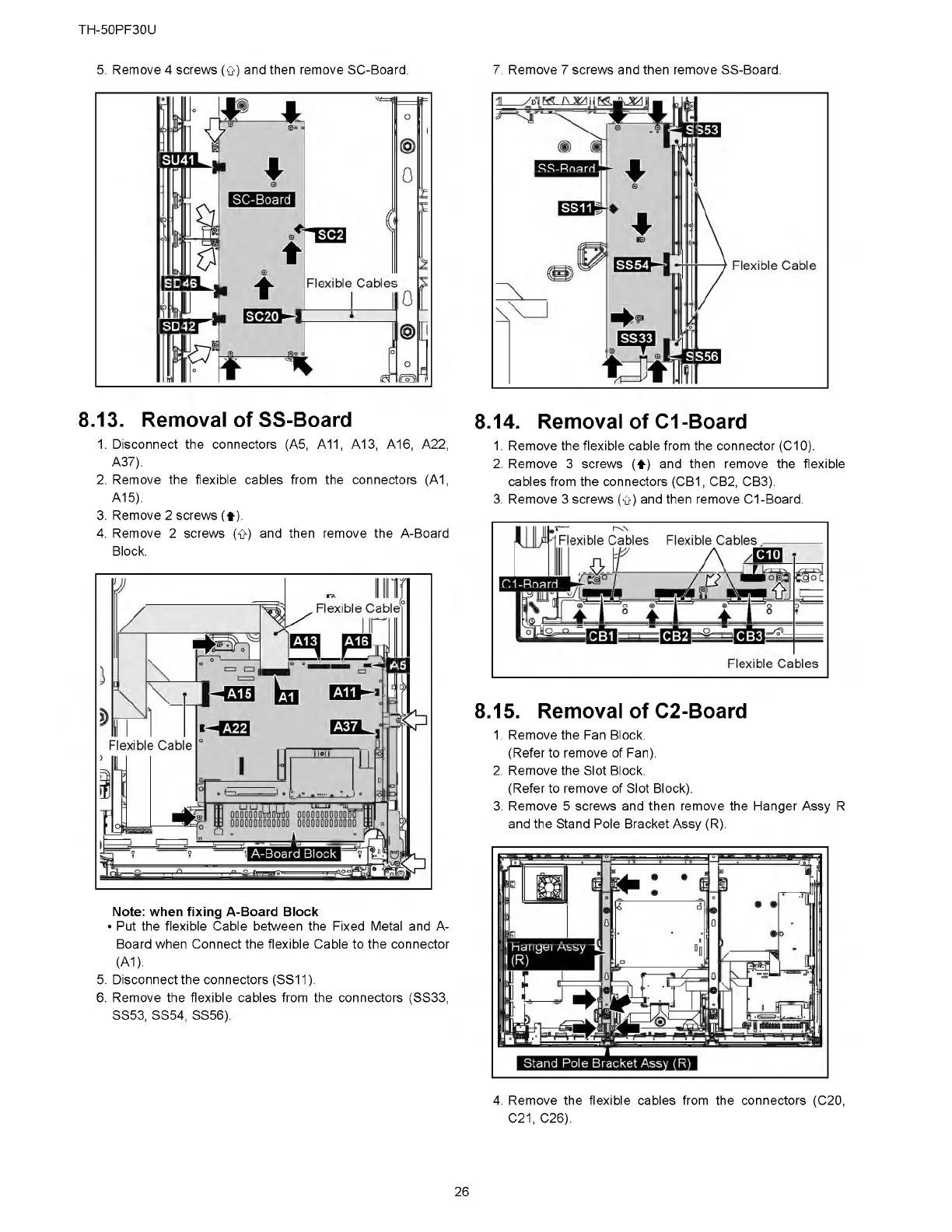

5. Remove 4 screws (о) and then remove SC-Board. 7. Remove 7 screws and then remove SS-Board.
8.13. Removal of SS-Board
1. Disconnect the connectors (A5, A11, A13, A16, A22,
A37).
2. Remove the flexible cables from the connectors (A1,
A15).
3. Remove 2 screws (♦).
4. Remove 2 screws (O) and then remove the A-Board
Block.
Note: when fixing A-Board Block
• Put the flexible Cable between the Fixed Metal and A
Board when Connect the flexible Cable to the connector
(A1).
5. Disconnect the connectors (SS11).
6. Remove the flexible cables from the connectors (SS33,
SS53, SS54, SS56).
8.14. Removal of C1-Board
1. Remove the flexible cable from the connector (C10).
2. Remove 3 screws (♦ ) and then remove the flexible
cables from the connectors (CB1, CB2, CB3).
3. Remove 3 screws (\>) and then remove C1-Board.
8.15. Removal of C2-Board
1. Remove the Fan Block.
(Refer to remove of Fan).
2. Remove the Slot Block.
(Refer to remove of Slot Block).
3. Remove 5 screws and then remove the Hanger Assy R
and the Stand Pole Bracket Assy (R).
4. Remove the flexible cables from the connectors (C20,
C21, C26).
26
