English
8
1 USB 1 - 3 port
2 HDMI3
3 AV IN (COMPONENT / VIDEO)
(p. 10)
4 ETHERNET
(p. 9)
5 Aerial terminal
(p. 8)
Satellite terminal
(p. 9)
New Zealand
6 DIGITAL AUDIO OUT
7 HDMI1 - 2
(p. 9, 10)
●
To watch content in 4K format, use HDMI terminal.
(p. 9)

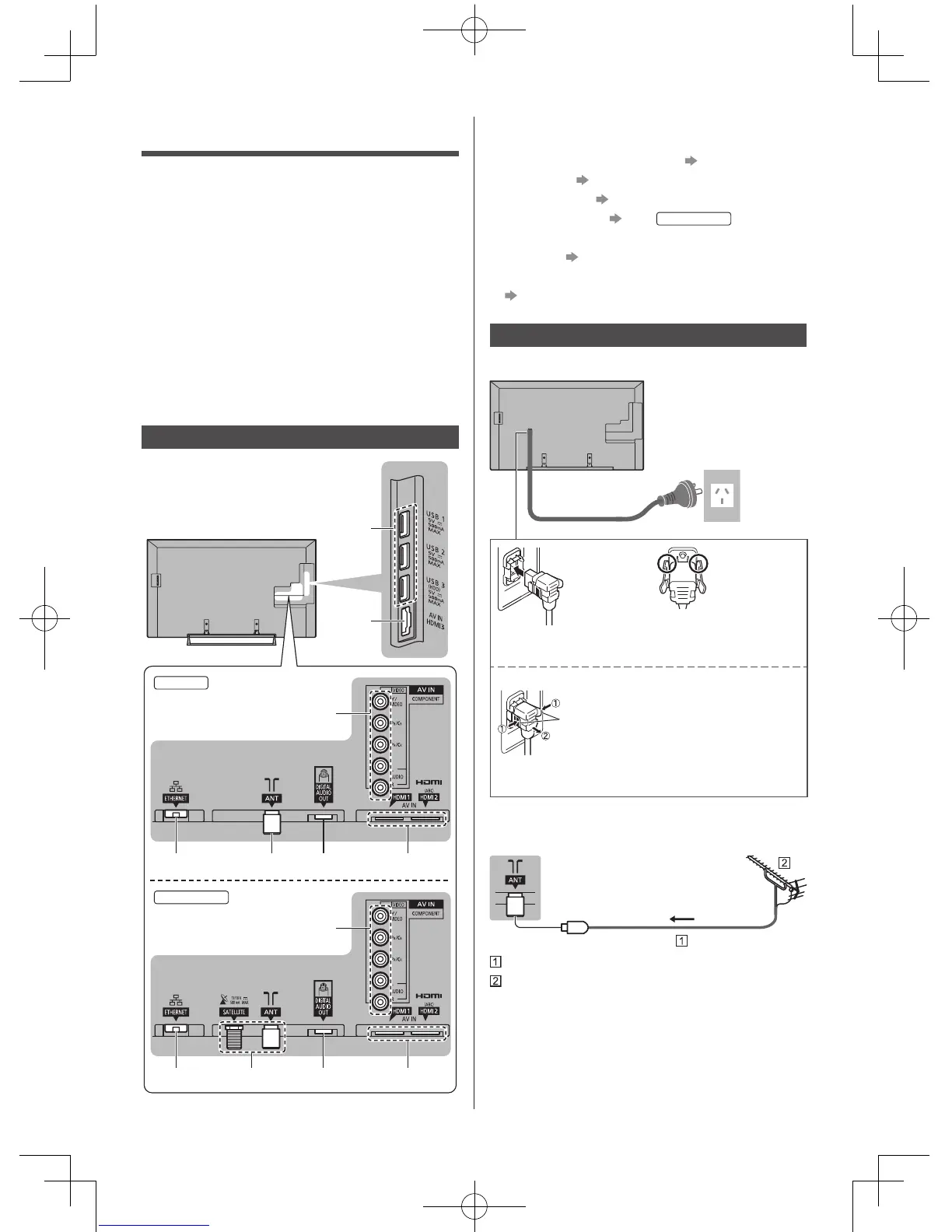

Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Push until both side
tabs click
Make sure that the
mains lead is securely
fixed
To remove from the TV:
tabs
Press both tabs and pull on mains connector to
release
■ Aerial
TV
RF cable
Aerial
●
For Digital TV, Analogue TV
●
Keep RF (aerial) cable away from the mains lead to
avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
An aerial, correct cable (75 Ω coaxial) and correct
terminating plug are required to obtain optimum
quality picture and sound.
Connections
●
External equipment and cables shown are not
supplied with this TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.
Terminals
1
2
3
4567
3
467
5
New Zealand
Australia
