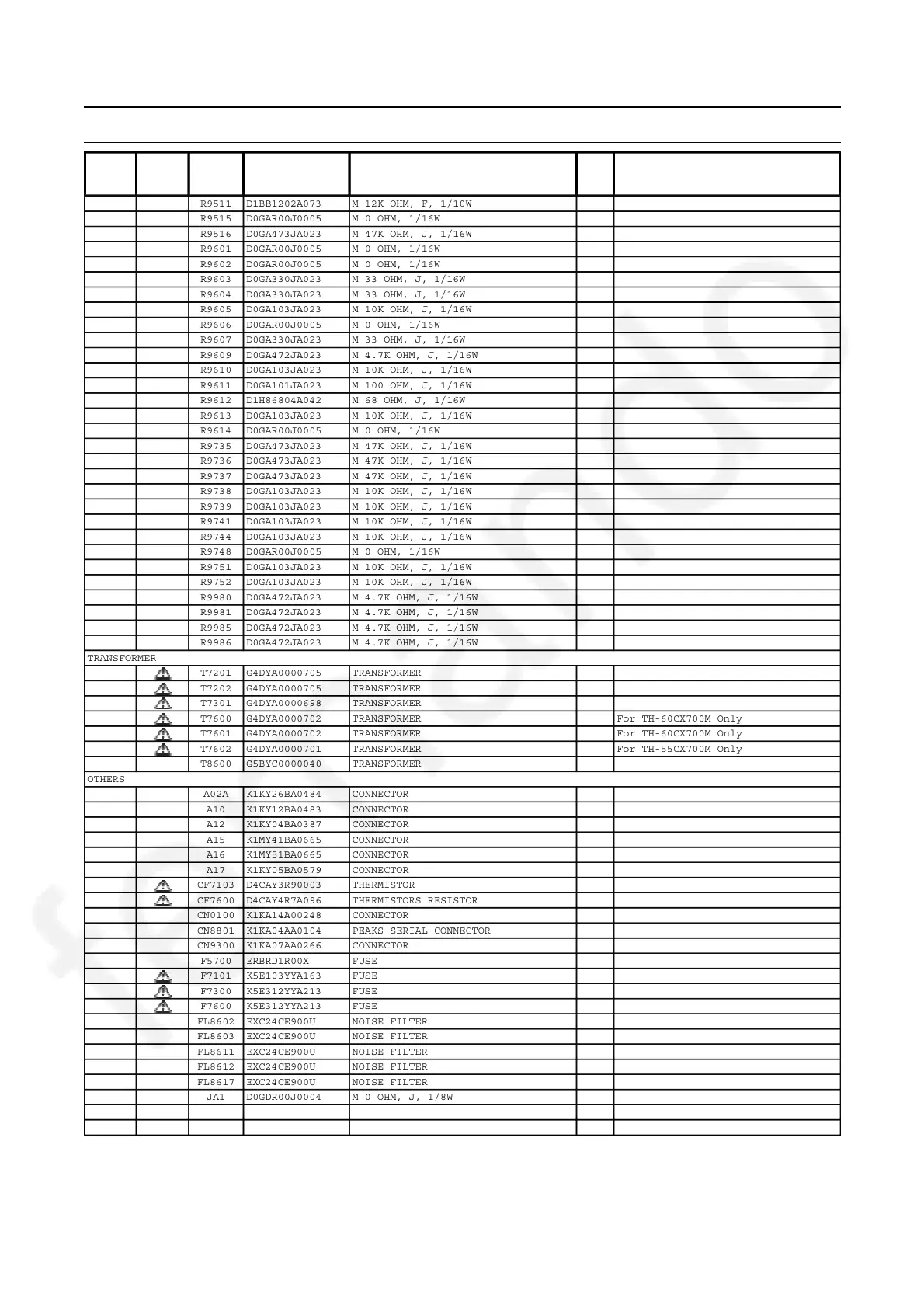

Panasonic TH-55CX700M - TRANSFORMER; OTHERS

Change Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
R9511 D1BB1202A073 M 12K OHM, F, 1/10W
R9515 D0GAR00J0005 M 0 OHM, 1/16W
R9516 D0GA473JA023 M 47K OHM, J, 1/16W
R9601 D0GAR00J0005 M 0 OHM, 1/16W
R9602 D0GAR00J0005 M 0 OHM, 1/16W
R9603 D0GA330JA023 M 33 OHM, J, 1/16W
R9604 D0GA330JA023 M 33 OHM, J, 1/16W
R9605 D0GA103JA023 M 10K OHM, J, 1/16W
R9606 D0GAR00J0005 M 0 OHM, 1/16W
R9607 D0GA330JA023 M 33 OHM, J, 1/16W
R9609 D0GA472JA023 M 4.7K OHM, J, 1/16W
R9610 D0GA103JA023 M 10K OHM, J, 1/16W
R9611 D0GA101JA023 M 100 OHM, J, 1/16W
R9612 D1H86804A042 M 68 OHM, J, 1/16W
R9613 D0GA103JA023 M 10K OHM, J, 1/16W
R9614 D0GAR00J0005 M 0 OHM, 1/16W
R9735 D0GA473JA023 M 47K OHM, J, 1/16W
R9736 D0GA473JA023 M 47K OHM, J, 1/16W
R9737 D0GA473JA023 M 47K OHM, J, 1/16W
R9738 D0GA103JA023 M 10K OHM, J, 1/16W
R9739 D0GA103JA023 M 10K OHM, J, 1/16W
R9741 D0GA103JA023 M 10K OHM, J, 1/16W
R9744 D0GA103JA023 M 10K OHM, J, 1/16W
R9748 D0GAR00J0005 M 0 OHM, 1/16W
R9751 D0GA103JA023 M 10K OHM, J, 1/16W
R9752 D0GA103JA023 M 10K OHM, J, 1/16W
R9980 D0GA472JA023 M 4.7K OHM, J, 1/16W
R9981 D0GA472JA023 M 4.7K OHM, J, 1/16W
R9985 D0GA472JA023 M 4.7K OHM, J, 1/16W
R9986 D0GA472JA023 M 4.7K OHM, J, 1/16W
TRANSFORMER
T7201 G4DYA0000705 TRANSFORMER
T7202 G4DYA0000705 TRANSFORMER
T7301 G4DYA0000698 TRANSFORMER
T7600 G4DYA0000702 TRANSFORMER For TH-60CX700M Only
T7601 G4DYA0000702 TRANSFORMER For TH-60CX700M Only
T7602 G4DYA0000701 TRANSFORMER For TH-55CX700M Only
T8600 G5BYC0000040 TRANSFORMER
OTHERS
A02A K1KY26BA0484 CONNECTOR
A10 K1KY12BA0483 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A15 K1MY41BA0665 CONNECTOR
A16 K1MY51BA0665 CONNECTOR
A17 K1KY05BA0579 CONNECTOR
CF7103 D4CAY3R90003 THERMISTOR
CF7600 D4CAY4R7A096 THERMISTORS RESISTOR
CN0100 K1KA14A00248 CONNECTOR
CN8801 K1KA04AA0104 PEAKS SERIAL CONNECTOR
CN9300 K1KA07AA0266 CONNECTOR
F5700 ERBRD1R00X FUSE
F7101 K5E103YYA163 FUSE
F7300 K5E312YYA213 FUSE
F7600 K5E312YYA213 FUSE
FL8602 EXC24CE900U NOISE FILTER
FL8603 EXC24CE900U NOISE FILTER
FL8611 EXC24CE900U NOISE FILTER
FL8612 EXC24CE900U NOISE FILTER
FL8617 EXC24CE900U NOISE FILTER
JA1 D0GDR00J0004 M 0 OHM, J, 1/8W
JA2 D0GDR00J0004 M 0 OHM, J, 1/8W
JA3 D0GDR00J0004 M 0 OHM, J, 1/8W
Model No. : TH-55CX700M TH-60CX700M Parts List
